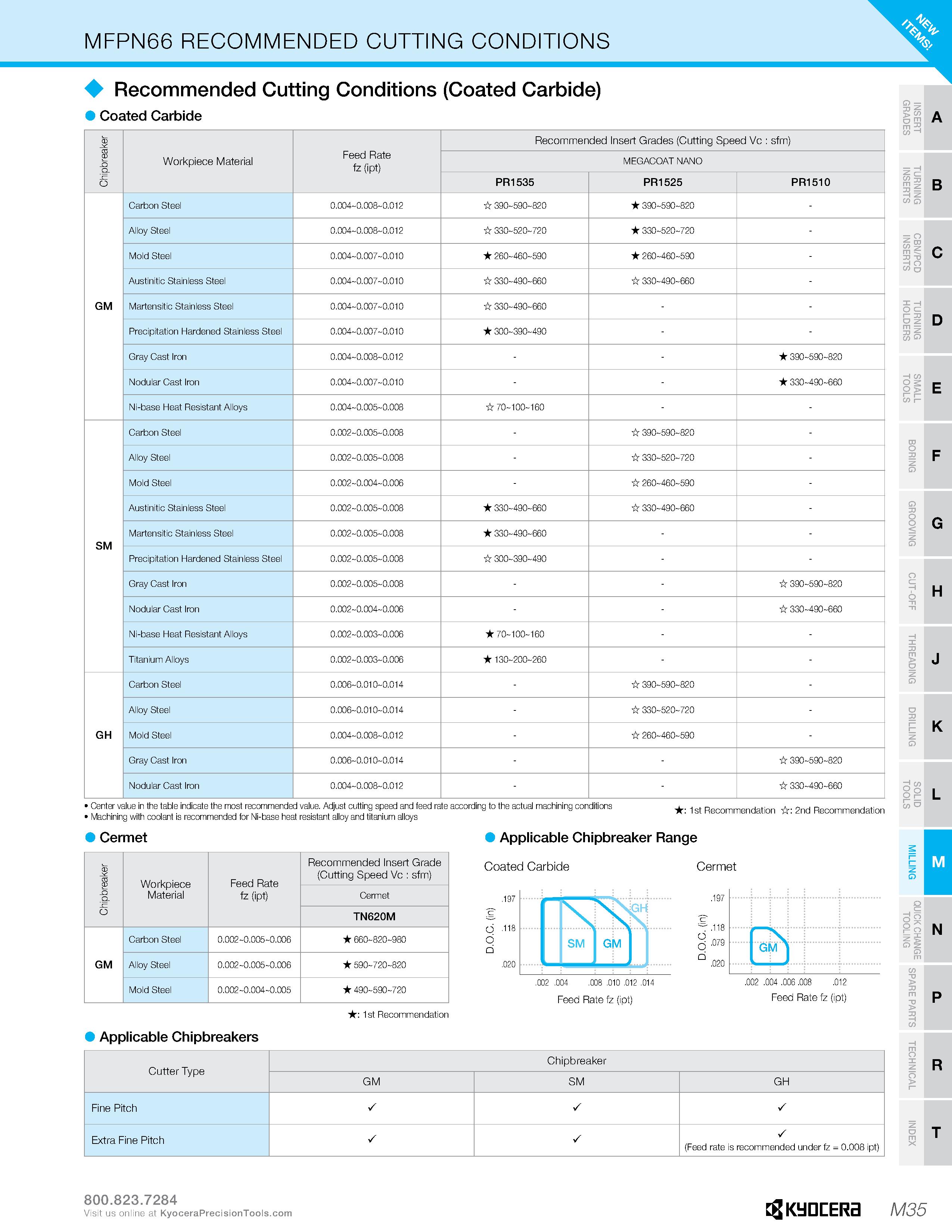

MFPN66 RECOMMENDED CUTTING CONDITIONS Recommended Cutting Conditions (Coated Carbide) Coated Carbide Chipbreaker Workpiece Material Feed Rate fz (ipt) Recommended Insert Grades (Cutting Speed Vc : sfm) MEGACOAT NANO PR1535 PR1525 PR1510 GM Carbon Steel 0.004-0.008-0.012 390-590-820 390-590-820 Alloy Steel 0.004-0.008-0.012 330-520-720 330-520-720 Mold Steel 0.004-0.007-0.010 260-460-590 260-460-590 Austinitic Stainless Steel 0.004-0.007-0.010 330-490-660 330-490-660 Martens it ic Stainless Steel 0.004-0.007-0.010 330-490-660 Precipitation Hardened Stainless Steel 0.004-0.007-0.010 300-390-490 Gray Cast Iron 0.004-0.008-0.012 390-590-820 Nodular Cast Iron 0.004-0.007-0.010 330-490-660 Ni-base Heat Resistant Alloys 0.004-0.005-0.008 70-100-160 SM Carbon Steel 0.002-0.005-0.008 390-590-820 Alloy Steel 0.002-0.005-0.008 330-520-720 Mold Steel 0.002-0.004-0.006 260-460-590 Austin itic Stainless Steel 0.002-0.005-0.008 330-490-660 330-490-660 Martens itic Stainless Steel 0.002-0.005-0.008 330-490-660 Precipitation Hardened Stainless Steel 0.002-0.005-0.008 300-390-490 Gray Cast Iron 0.002-0.005-0.008 390-590-820 Nodular Cast Iron 0.002-0.004-0.006 330-490-660 Ni-base Heat Resistant Alloys 0.002-0.003-0.006 70-100-160 Titanium Alloys 0.002-0.003-0.006 130-200-260 GH Carbon Steel 0.006-0.010-0.014 390-590-820 Alloy Steel 0.006-0.010-0.014 330-520-720 Mold Steel 0.004-0.008-0.012 260-460-590 Gray Cast Iron 0.006-0.010-0.014 390-590-820 Nodular Cast Iron 0.004-0.008-0.012 330-490-660 T> u S8 O cz I- T> O m = W O S o > o 33 z Q o cz -H o > o z. Q Center value in the table indicate the most recommended value. Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys Cermet : 1 st Recommendation &: 2nd Recommendation Applicable Chipbreaker Range CD CC o Q Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade (Cutting Speed Vc : sfm) Cermet O TN620M Carbon Steel 0.002-0.005-0.006 660-820-980 GM Alloy Steel 0.002-0.005-0.006 590-720-820 Mold Steel 0.002-0.004-0.005 490-590-720 Coated Carbide Cermet Feed Rate fz (ipt) Feed Rate fz (ipt) : 1 st Recommendation Applicable Chipbreakers Cutter Type Chipbreaker GM SM GH Fine Pitch S S S Extra Fine Pitch S S (Feed rate is recommended under fz - 0.008 ipt) Visit us online at Kyocera M35
