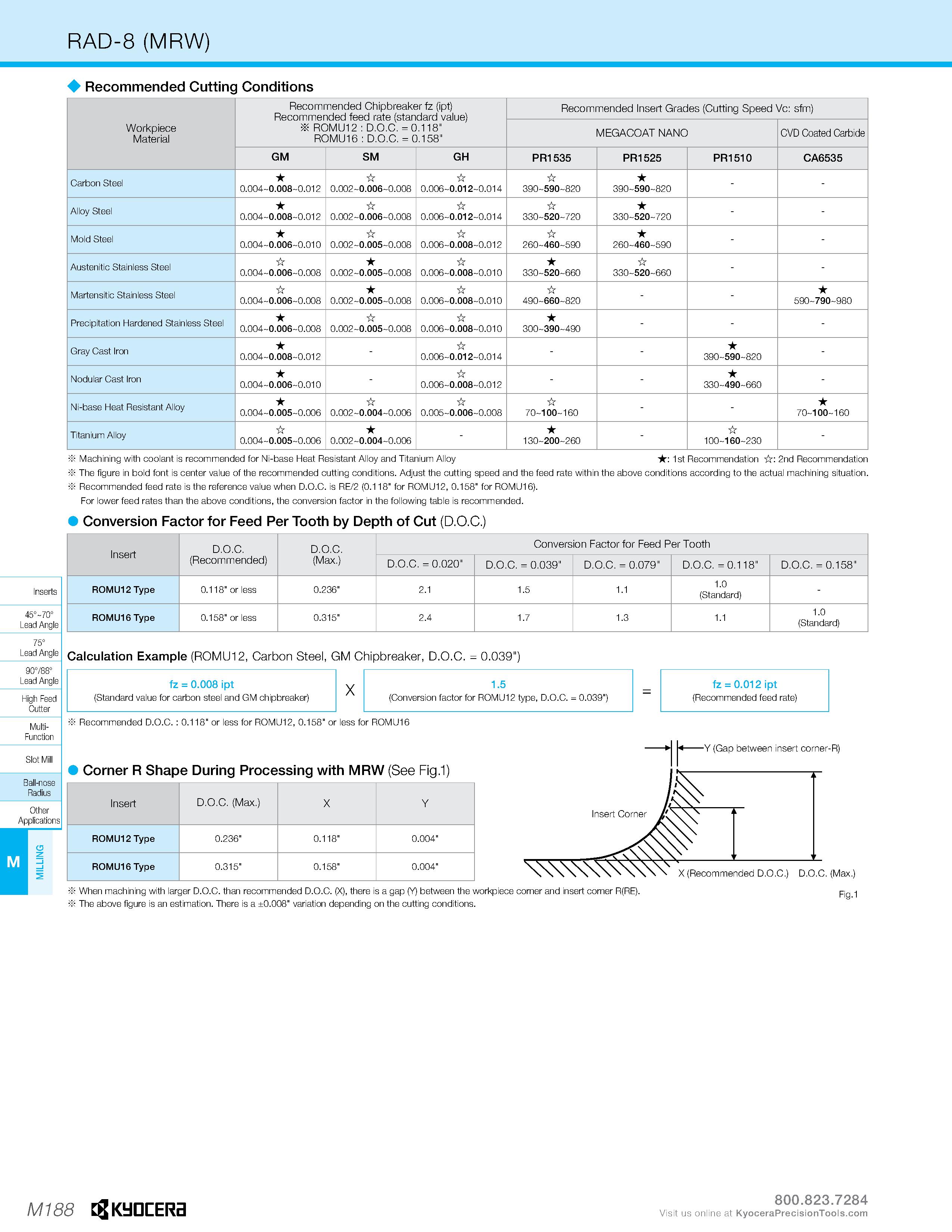

RAD-8 (MRW) 4 Recommended Cutting Conditions Workpiece Material Recommended Chipbreaker fz (ipt) Recommended feed rate (standard value) ROMU12 : D.O.C. = 0.118" ROMU16 : D.O.C. = 0.158" Recommended Insert Grades (Cutting Speed Vc: sfm) MEGACOAT NANO CVD Coated Carbide GM SM GH PR1535 PR1525 PR1510 CA6535 Carbon Steel 0.004-0.008-0.012 0.002-0.006-0.008 0.006-0.012-0.014 390-590-820 390-590-820 - - Alloy Steel 0.004-0.008-0.012 0.002-0.006-0.008 0.006-0.012-0.014 330-520-720 330-520-720 - - Mold Steel 0.004-0.006-0.010 0.002-0.005-0.008 0.006-0.008-0.012 260-460-590 260-460-590 - - Austenitic Stainless Steel 0.004-0.006-0.008 0.002-0.005-0.008 0.006-0.008-0.010 330-520-660 330-520-660 - - Martens it ic Stainless Steel 0.004-0.006-0.008 0.002-0.005-0.008 0.006-0.008-0.010 490-660-820 - - 590-790-980 Precipitation Hardened Stainless Steel 0.004-0.006-0.008 0.002-0.005-0.008 0.006-0.008-0.010 300-390-490 - - - Gray Cast Iron 0.004-0.008-0.012 - 0.006-0.012-0.014 - - 390-590-820 - Nodular Cast Iron 0.004-0.006-0.010 - 0.006-0.008-0.012 - - 330-490-660 - Ni-base Heat Resistant Alloy 0.004-0.005-0.006 0.002-0.004-0.006 0.005-0.006-0.008 70-100-160 - - 70-100-160 Titanium Alloy 0.004-0.005-0.006 0.002-0.004-0.006 - 130-200-260 - 100-160-230 - Machining with coolant is recommended for Ni-base Heat Resistant Alloy and Titanium Alloy : 1st Recommendation it: 2nd Recommendation The figure in bold font is center value of the recommended cutting conditions. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Recommended feed rate is the reference value when D.O.C. is RE/2 (0.118" for ROMU12, 0.158" for ROMU16). For lower feed rates than the above conditions, the conversion factor in the following table is recommended. Conversion Factor for Feed Per Tooth by Depth of Cut (D.O.C.) Insert D.O.C. (Recommended) D.O.C. (Max.) Conversion Factor for Feed Per Tooth D.O.C. = 0.020" D.O.C. = 0.039" D.O.C. = 0.079" D.O.C. =0.118" D.O.C. = 0.158" Inserts ROMU12 Type 0.118" or less 0.236" 2.1 1.5 1.1 1.0 (Standard) - 45°-70° Lead Angle ROMU16 Type 0.158" or less 0.315" 2.4 1.7 1.3 1.1 1.0 (Standard) 75° Lead Angle Calculation Example (ROMU12, Carbon Steel, GM Chipbreaker, D.O.C. = 0.039") 90788° Lead Angle High Feed Cutter fz = 0.008 ipt (Standard value for carbon steel and GM chipbreaker) X 1.5 (Conversion factor for ROMU12 type, D.O.C. = 0.039") fz = 0.012 ipt (Recommended feed rate) Multi- Function ; Recommended D.O.C.: 0.118" or less for ROMU12, 0.158" or less for ROMU16 Corner R Shape During Processing with MRW (See Fig.1) Y (Gap between insert corner-R) B all-nose Radius Other Applications Insert D.O.C. (Max.) X Y ROMU12 Type 0.236" 0.118" 0.004" ROMU16 Type 0.315" 0.158" 0.004" \\\W S When machining with larger D.O.C. than recommended D.O.C. (X), there is a gap (Y) between the workpiece corner and insert corner R(RE). i The above figure is an estimation. There is a ±0.008" variation depending on the cutting conditions. X (Recommended D.O.C.) D.O.C. (Max.) Fig.1 M188 Kyocera Visit us online at
