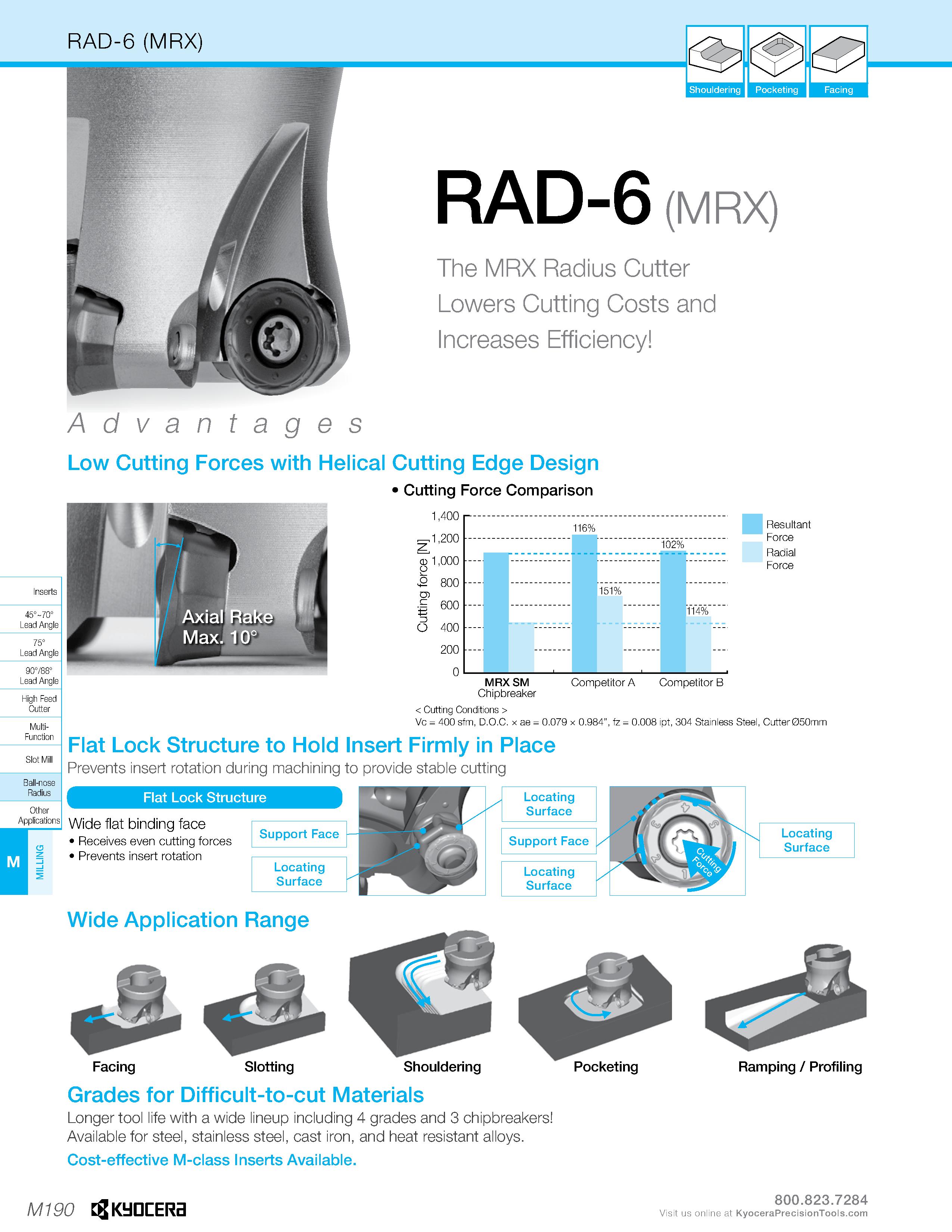

RAD-6 (MRX) Shouldering Pocketing Facing RAD-6 (MRX) The MRX Radius Cutter Lowers Cutting Costs and Increases Efficiency Advantages Low Cutting Forces with Helical Cutting Edge Design Cutting Force Comparison 1,400 „ 1,200 0 1,000 O £ 800 O) B 600 O 400 200 0 116% 102% 151% Resultant Force Radial Force 114% MRXSM Competitor A Competitor B Chipbreaker Cutting Conditions > Vc = 400 sfm, D.O.C. x ae = 0.079 x 0.984", fz = 0.008 ipt, 304 Stainless Steel, Cutter 050mm Flat Lock Structure to Hold Insert Firmly in Place Prevents insert rotation during machining to provide stable cutting B all-nose Radius Other Applications Flat Lock Structure Wide flat binding face Receives even cutting forces Prevents insert rotation Wide Application Range Facing Slotting Shouldering Grades for Difficult-to-cut Materials Longer tool life with a wide lineup including 4 grades and 3 chipbreakers Available for steel, stainless steel, cast iron, and heat resistant alloys. Cost-effective M-ciass Inserts Available. Pocketing Ramping / Profiling M190 Kyocera Visit us online at
