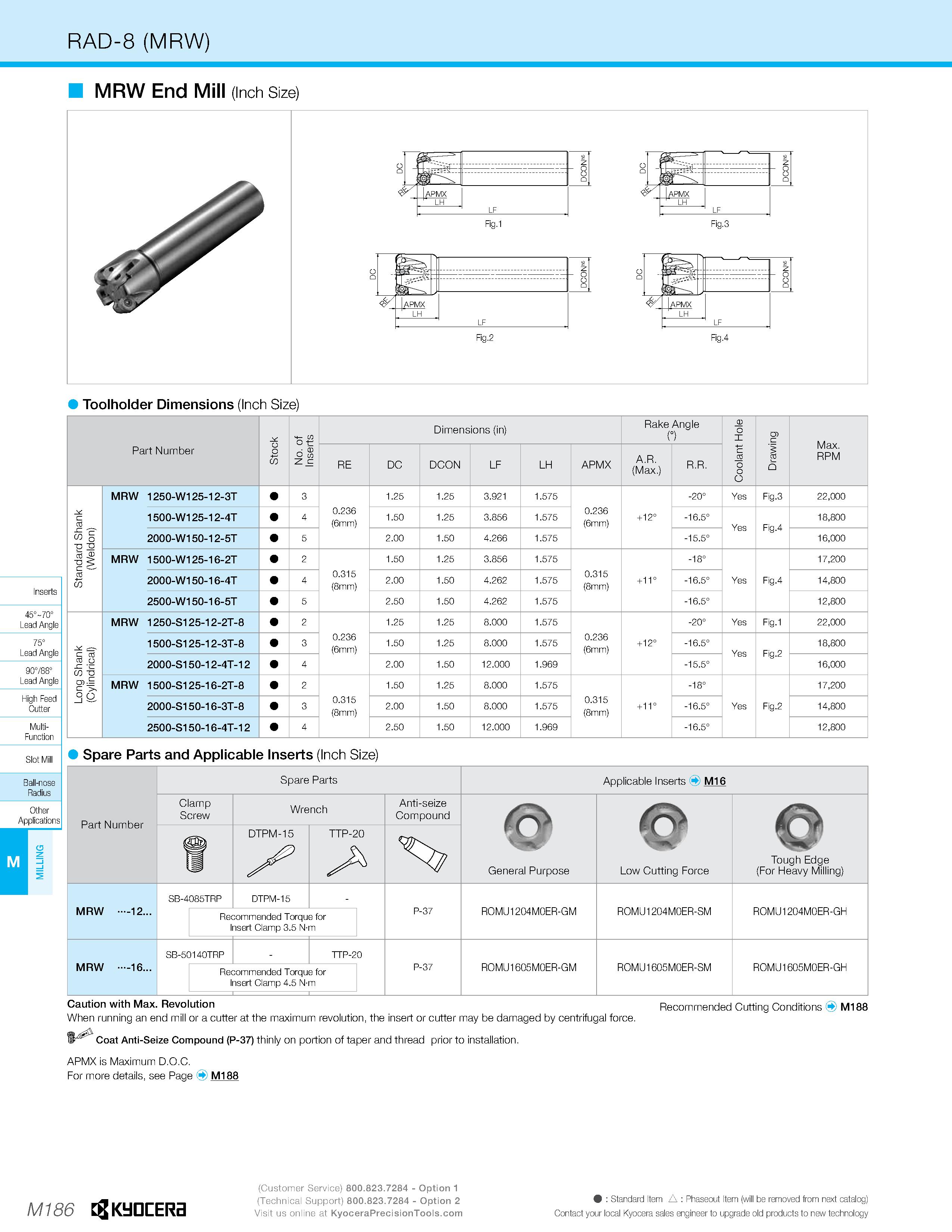

RAD-8 (MRW) MRW End Mill (Inch Size) Toolholder Dimensions (Inch Size) 45°-70° Lead Angle 75° Lead Angle Part Number Stock No. of Inserts Dimensions (in) Rake Angle n Coolant Hole Drawing Max. RPM RE DC DCON LF LH APMX A.R. (Max.) R.R. Standard Shank (Weldon) MRW 1250-W125-12-3T 3 0.236 (6mm) 1.25 1.25 3.921 1.575 0.236 (6mm) +12° -20° Yes Fig.3 22,000 1500-W125-12-4T 4 1.50 1.25 3.856 1.575 -16.5° Yes Fig.4 18,800 2000-W150-12-5T 5 2.00 1.50 4.266 1.575 -15.5° 16,000 MRW 1500-W125-16-2T 2 0.315 (8mm) 1.50 1.25 3.856 1.575 0.315 (8mm) +11° -18° Yes Fig.4 17,200 2000-W150-16-4T 4 2.00 1.50 4.262 1.575 -16.5° 14,800 2500-W150-16-5T 5 2.50 1.50 4.262 1.575 -16.5° 12,800 Long Shank (Cylindrical) MRW 1250-S125-12-2T -8 2 0.236 (6mm) 1.25 1.25 8.000 1.575 0.236 (6mm) +12° -20° Yes Fig.1 22,000 1500-S125-12-3T -8 3 1.50 1.25 8.000 1.575 -16.5° Yes Fig.2 18,800 2000-S150-12-4T-12 4 2.00 1.50 12.000 1.969 -15.5° 16,000 MRW 1500-S125-16-2T -8 2 0.315 (8mm) 1.50 1.25 8.000 1.575 0.315 (8mm) +11° -18° Yes Fig.2 17,200 2000-S150-16-3T -8 3 2.00 1.50 8.000 1.575 -16.5° 14,800 2500-S150-16-4T-12 4 2.50 1.50 12.000 1.969 -16.5° 12,800 90788° Lead Angle High Feed Cutter Multi- Function Spare Parts and Applicable Inserts (Inch Size) B all-nose Radius Other Applications Part Number Spare Parts Clamp Screw Wrench DTPM-15 TTP-20 Anti-seize Compound Applicable Inserts M16 o> General Purpose o Low Cutting Force Tough Edge For Heavy Milling) MRW -12.. Recommended Torque for Insert Clamp 3.5 N-m ROMU1204M0ER-GM ROMU1204M0ER-SM ROMU1204M0ER-GH SB-50140TRP MRW -16.. Recommended Torque for Insert Clamp 4.5 N-m ROMU1605M0ER-GM ROMU1605M0ER-SM ROMU1605M0ER-GH Caution with Max. Revolution Recommended Cutting Conditions M188 When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. APMX is Maximum D.O.C. For more details, see Page M188 M186 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
