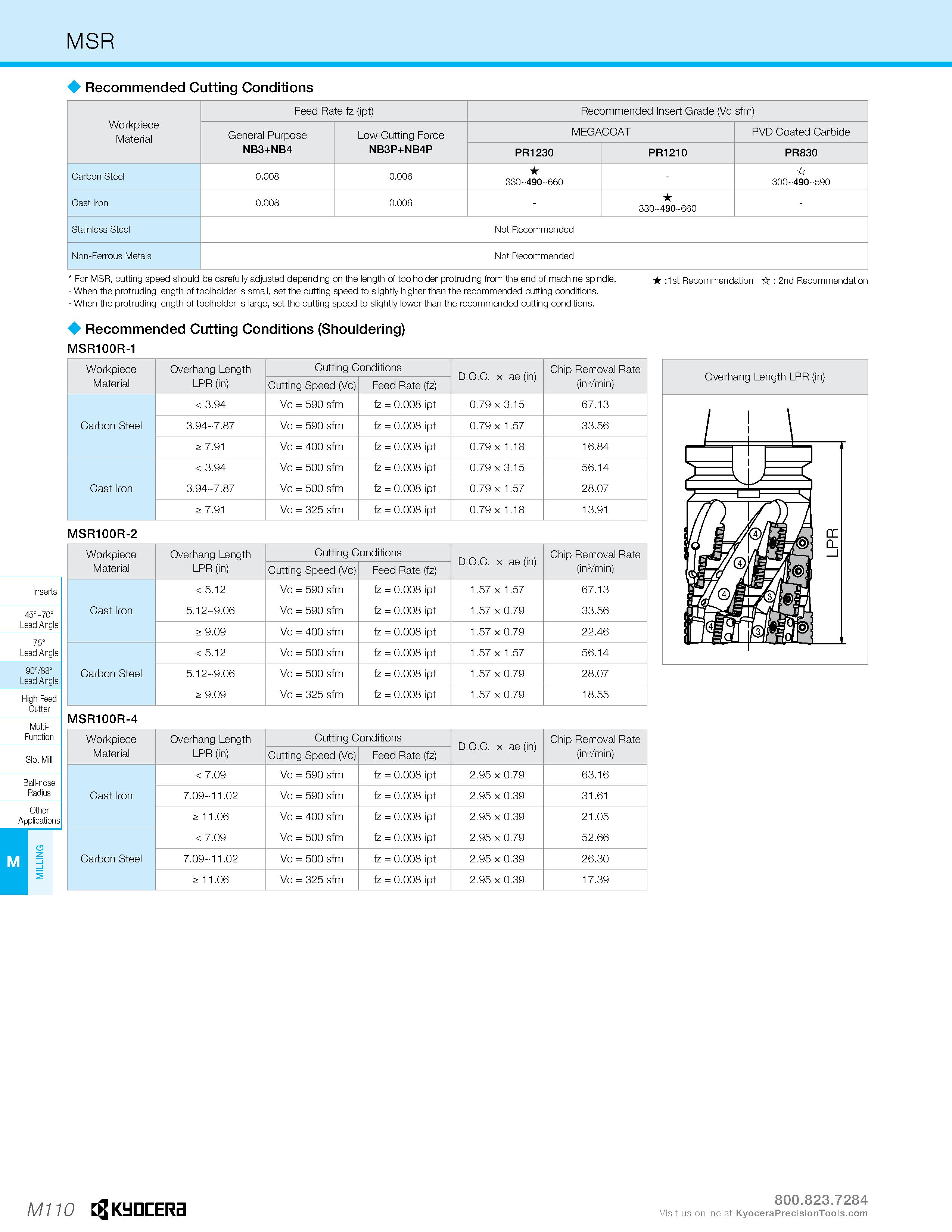

MSR 4 Recommended Cutting Conditions Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade (Vc sfm) General Purpose Low Cutting Force MEGACOAT PVD Coated Carbide NB3+NB4 NB3P+NB4P PR1230 PR1210 PR830 Carbon Steel 0.008 0.006 330-490-660 - 300-490-590 Cast Iron 0.008 0.006 - 330-490-660 - Stainless Steel Not Recommended Non-Ferrous Metals Not Recommended For MSR, cutting speed should be carefully adjusted depending on the length of toolholder protruding from the end of machine spindle. :- st Recommendation : 2nd Recommendation When the protruding length of toolholder is small, set the cutting speed to slightly higher than the recommended cutting conditions. When the protruding length of toolholder is large, set the cutting speed to slightly lower than the recommended cutting conditions. 4 Recommended Cutting Conditions (Shouldering) MSR100R-1 Workpiece Material Overhang Length LPR (in) Cutting Conditions D.O.C. x ae (in) Chip Removal Rate (in3/min) Cutting Speed (Vc) Feed Rate (fz) Carbon Steel 3.94 Vc = 590 sfm fe = 0.008 ipt 0.79 x 3.15 67.13 3.94-7.87 Vc = 590 sfm fe = 0.008 ipt 0.79 x 1.57 33.56 > 7.91 Vc = 400 sfm fe = 0.008 ipt 0.79 x 1.18 16.84 Cast Iron 3.94 Vc = 500 sfm fe = 0.008 ipt 0.79 x 3.15 56.14 3.94-7.87 Vc = 500 sfm fe = 0.008 ipt 0.79 x 1.57 28.07 > 7.91 Vc = 325 sfm fe = 0.008 ipt 0.79 x 1.18 13.91 MSR100R-2 Workpiece Material Overhang Length LPR (in) Cutting Conditions D.O.C. x ae (in) Chip Removal Rate (in3/min) Cutting Speed (Vc) Feed Rate (fz) Inserts Cast Iron 5.12 Vc = 590 sfm fe = 0.008 ipt 1.57 x 1.57 67.13 45°-70° Lead Angle 75° Lead Angle 5.12-9.06 Vc = 590 sfm fe = 0.008 ipt 1.57 x 0.79 33.56 > 9.09 Vc = 400 sfm fe = 0.008 ipt 1.57 x 0.79 22.46 Carbon Steel 5.12 Vc = 500 sfm fe = 0.008 ipt 1.57 x 1.57 56.14 90788° Lead Angle 5.12-9.06 Vc = 500 sfm fe = 0.008 ipt 1.57 x 0.79 28.07 High Feed Cutter Multi- Function > 9.09 Vc = 325 sfm fe = 0.008 ipt 1.57 x 0.79 18.55 MSR100R-4 Workpiece Material Overhang Length LPR (in) Cutting Conditions D.O.C. x ae (in) Chip Removal Rate (in3/min) Slot Mill B all-nose Radius Cutting Speed (Vc) Feed Rate (fz) Cast Iron 7.09 Vc = 590 sfm fe = 0.008 ipt 2.95 x 0.79 63.16 7.09-11.02 Vc = 590 sfm fe = 0.008 ipt 2.95 x 0.39 31.61 Other Applications s 11.06 Vc = 400 sfm fe = 0.008 ipt 2.95 x 0.39 21.05 M MILLING Carbon Steel 7.09 Vc = 500 sfm fe = 0.008 ipt 2.95 x 0.79 52.66 7.09-11.02 Vc = 500 sfm fe = 0.008 ipt 2.95 x 0.39 26.30 s 11.06 Vc = 325 sfm fe = 0.008 ipt 2.95 x 0.39 17.39 Overhang Length LPR (in) M110 Kyocera Visit us online at
