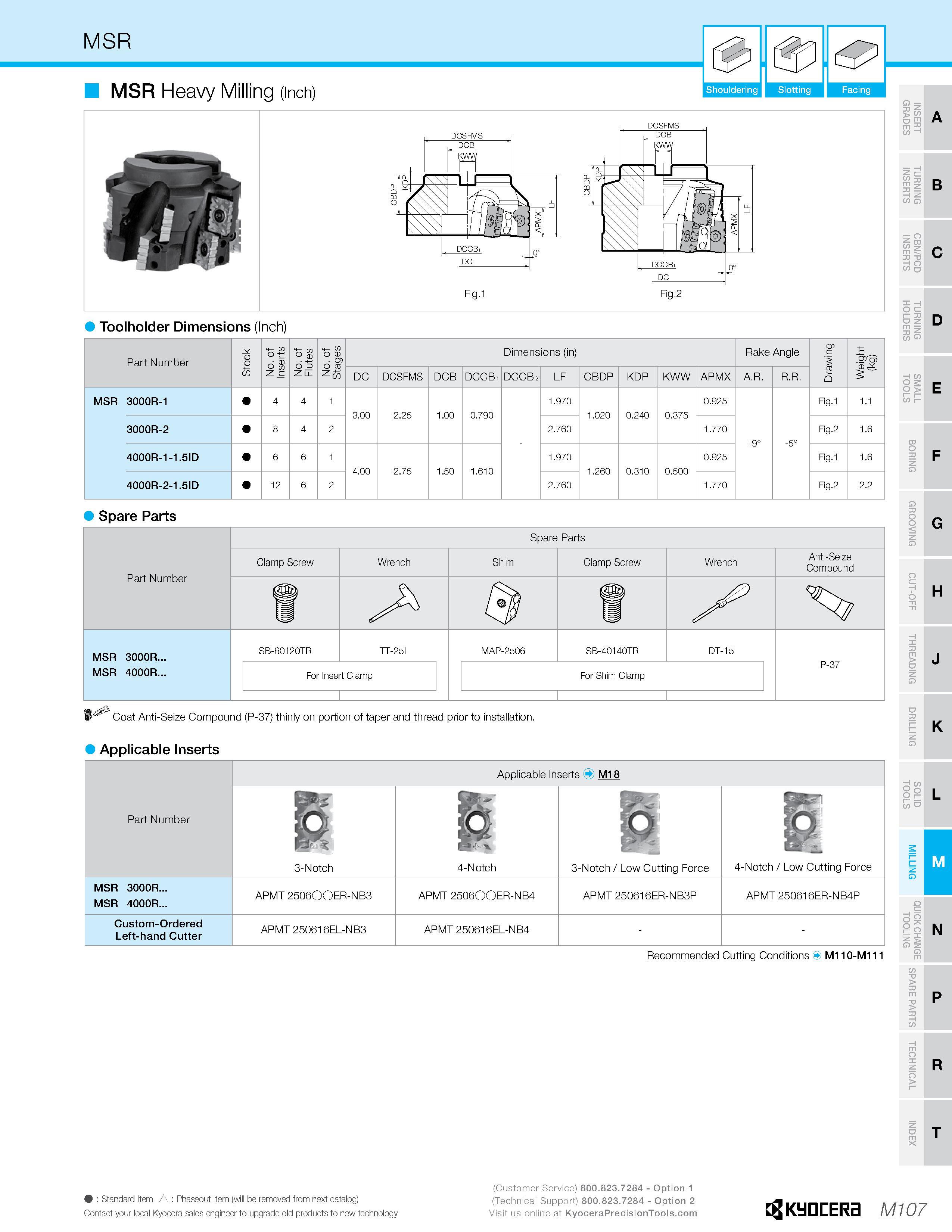

MSR MSR Heavy Milling (Inch) Shouldering I Slotting I Facing Fig. 1 Fig.2 Toolholder Dimensions (Inch) Part Number Stock No. of Inserts No. of Flutes No. of Stages Dimensions (in) Rake Angle Drawing Weight (kg) DC DCSFMS DCB DCCB1 DCCB2 LF CBDP KDP KWW APMX A.R. R.R. MSR 3000R-1 4 4 3.00 2.25 1.00 0.790 - 1.970 1.020 0.240 0.375 0.925 +9° -5° Fig.1 1.1 3000R-2 8 4 2 2.760 1.770 Fig.2 1.6 4000R-1-1.5ID 6 6 4.00 2.75 1.50 1.610 1.970 1.260 0.310 0.500 0.925 Fig.1 1.6 4000R-2-1.5ID 12 6 2 2.760 1.770 Fig.2 2.2 Spare Parts Part Number MSR 3000R... MSR 4000R... Spare Parts Clamp Screw Wrench SB-60120TR TT-25L For Insert Clamp . 1 .. Shim Clamp Screw SB-40140TR For Shim Clamp Wrench Anti-Seize Compound Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Applicable Inserts Part Number Applicable Inserts M18 3-Notch 4-Notch 3-Notch / Low Cutting Force 4-Notch / L iS ' ow Cutting Force MSR 3000R... MSR 4000R... APMT 250600ER-NB3 APMT 250600ER-NB4 APMT 250616ER-NB3P APMT 250616ER-NB4P Custom-Ordered Left-hand Cutter APMT 250616EL-NB3 APMT 250616EL-NB4 - - Recommended Cutting Conditions M110-M111 DO "O SD B C D O s L> E 0 1 N Q O CZ O > I N Q G H K N P R D T E F J L M : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M107
