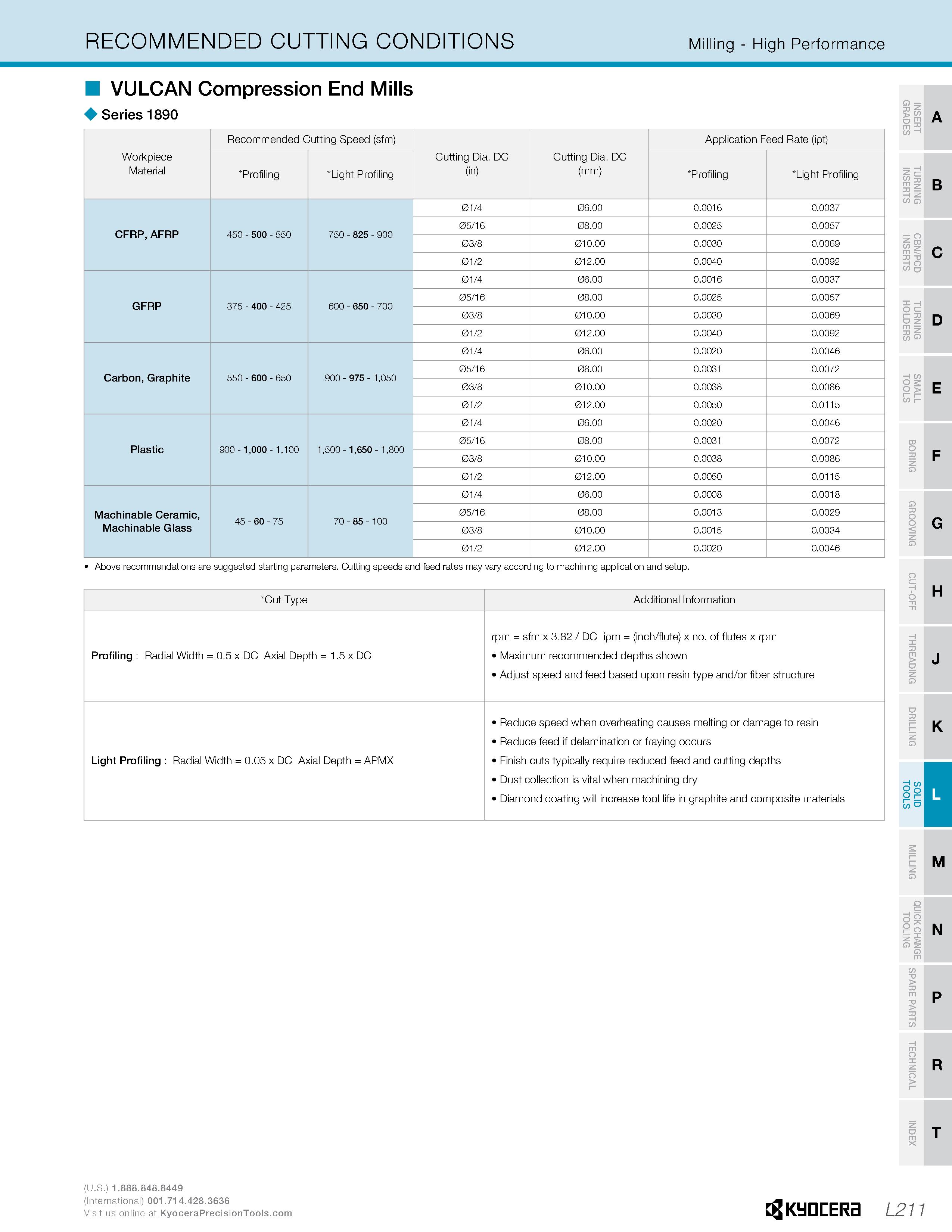

RECOMMENDED CUTTING CONDITIONS Milling - High Performance VULCAN Compression End Mills Series 1890 Workpiece Material Recommended Cutting Speed (sfm) Cutting Dia. DC (in) Cutting Dia. DC (mm) Application Feed Rate (ipt) Profiling Light Profiling Profiling Light Profiling CFRP, AFRP 450 - 500 - 550 750 - 825 - 900 01/4 06.00 0.0016 0.0037 05/16 08.00 0.0025 0.0057 03/8 010.00 0.0030 0.0069 01/2 012.00 0.0040 0.0092 GFRP 375 - 400 - 425 600 - 650 - 700 01/4 06.00 0.0016 0.0037 05/16 08.00 0.0025 0.0057 03/8 010.00 0.0030 0.0069 01/2 012.00 0.0040 0.0092 Carbon, Graphite 550 - 600 - 650 900 - 975 - 1,050 01/4 06.00 0.0020 0.0046 05/16 08.00 0.0031 0.0072 03/8 010.00 0.0038 0.0086 01/2 012.00 0.0050 0.0115 Plastic 900 - 1,000 - 1,100 1,500 - 1,650 - 1,800 01/4 06.00 0.0020 0.0046 05/16 08.00 0.0031 0.0072 03/8 010.00 0.0038 0.0086 01/2 012.00 0.0050 0.0115 Machinable Ceramic, Machinable Glass 45 - 60 - 75 70 - 85 - 100 01/4 06.00 0.0008 0.0018 05/16 08.00 0.0013 0.0029 03/8 010.00 0.0015 0.0034 01/2 012.00 0.0020 0.0046 A E R 3 = T Z C/5 G DO "O SD B C D o g z o E G H Above recommendations are suggested starting parameters. Cutting speeds and feed rates may vary according to machining application and setup. o cz - 0 > g z o Cut Type Additional Information Profiling : Radial Width = 0.5 x DC Axial Depth = 1.5 x DC rpm = sfm x 3.82 / DC ipm = (inch/flute) x no. of flutes x rpm Maximum recommended depths shown Adjust speed and feed based upon resin type and/or fiber structure Light Profiling : Radial Width = 0.05 x DC Axial Depth = APMX Reduce speed when overheating causes melting or damage to resin Reduce feed if delamination or fraying occurs Finish cuts typically require reduced feed and cutting depths Dust collection is vital when machining dry Diamond coating will increase tool life in graphite and composite materials 8° S D K : M N P R T F J (U.S.) 1.888.848.8449 (International) 001.714.428.3636 211 Visit us online at L2ll
