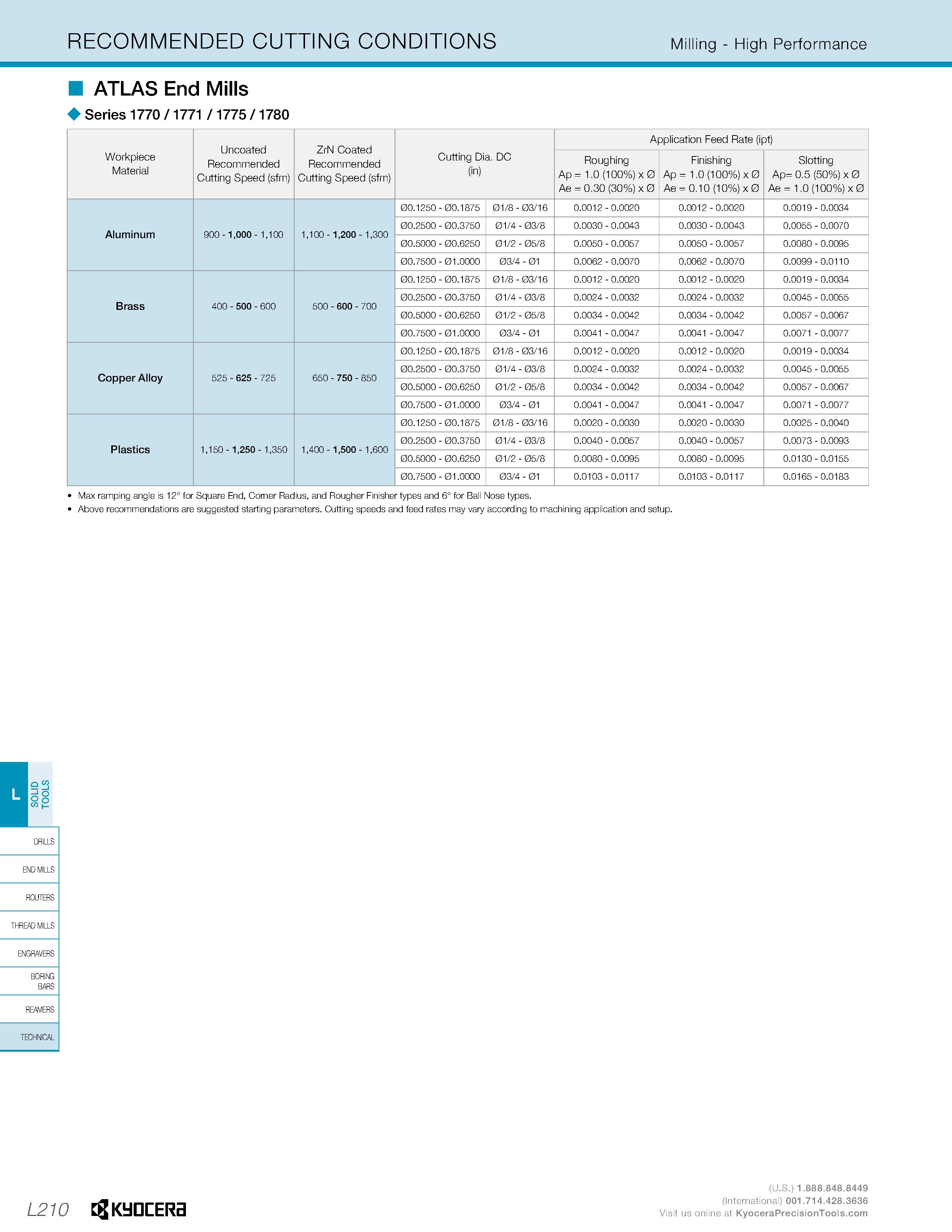

RECOMMENDED CUTTING CONDITIONS Milling - High Performance ATLAS End Mills Series 1770 / 1771 / 1775 / 1780 Workpiece Material Uncoated Recommended Cutting Speed (sfm) ZrN Coated Recommended Cutting Speed (sfm) Cutting Dia. DC (in) Application Feed Rate (ipt) Roughing Ap = 1.0 (100%) x 0 Ae = 0.30 (30%) x 0 Finishing Ap = 1.0 (100%) x 0 Ae = 0.10 (10%) x 0 Slotting Ap= 0.5 (50%) x 0 Ae = 1.0 (100%) x 0 Aluminum 900 - 1,000 - 1,100 1,100 - 1,200 - 1,300 00.1250 00.1875 01/8 - 03/16 0.0012 0.0020 0.0012 0.0020 0.0019 - 0.0034 00.2500 00.3750 01/4 03/8 0.0030 0.0043 0.0030 0.0043 0.0055 - 0.0070 00.5000 00.6250 01/2 05/8 0.0050 0.0057 0.0050 0.0057 0.0080 - 0.0095 00.7500 01.0000 03/4 - 01 0.0062 0.0070 0.0062 0.0070 0.0099 - 0.0110 Brass 400 - 500 - 600 500 - 600 - 700 00.1250 00.1875 01/8 - 03/16 0.0012 0.0020 0.0012 0.0020 0.0019 - 0.0034 00.2500 00.3750 01/4 03/8 0.0024 0.0032 0.0024 0.0032 0.0045 - 0.0055 00.5000 00.6250 01/2 05/8 0.0034 0.0042 0.0034 0.0042 0.0057 - 0.0067 00.7500 01.0000 03/4 - 01 0.0041 0.0047 0.0041 0.0047 0.0071 - 0.0077 Copper Alloy 525 - 625 - 725 650 - 750 - 850 00.1250 00.1875 01/8 - 03/16 0.0012 0.0020 0.0012 0.0020 0.0019 - 0.0034 00.2500 00.3750 01/4 03/8 0.0024 0.0032 0.0024 0.0032 0.0045 - 0.0055 00.5000 00.6250 01/2 05/8 0.0034 0.0042 0.0034 0.0042 0.0057 - 0.0067 00.7500 01.0000 03/4 - 01 0.0041 0.0047 0.0041 0.0047 0.0071 - 0.0077 Plastics 1,150 - 1,250 - 1,350 1,400 - 1,500 - 1,600 00.1250 00.1875 01/8 - 03/16 0.0020 0.0030 0.0020 0.0030 0.0025 - 0.0040 00.2500 00.3750 01/4 03/8 0.0040 0.0057 0.0040 0.0057 0.0073 - 0.0093 00.5000 00.6250 01/2 05/8 0.0080 0.0095 0.0080 0.0095 0.0130 - 0.0155 00.7500 01.0000 03/4 - 01 0.0103 0.0117 0.0103 0.0117 0.0165 - 0.0183 Max ramping angle is 12° for Square End, Corner Radius, and Rougher Finisher types and 6° for Ball Nose types. Above recommendations are suggested starting parameters. Cutting speeds and feed rates may vary according to machining application and setup. DRILLS END MILLS ROUTERS THREAD MILLS ENGRAVERS BORING BARS REAMERS TECHNICAL L210 Kyocera (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at
