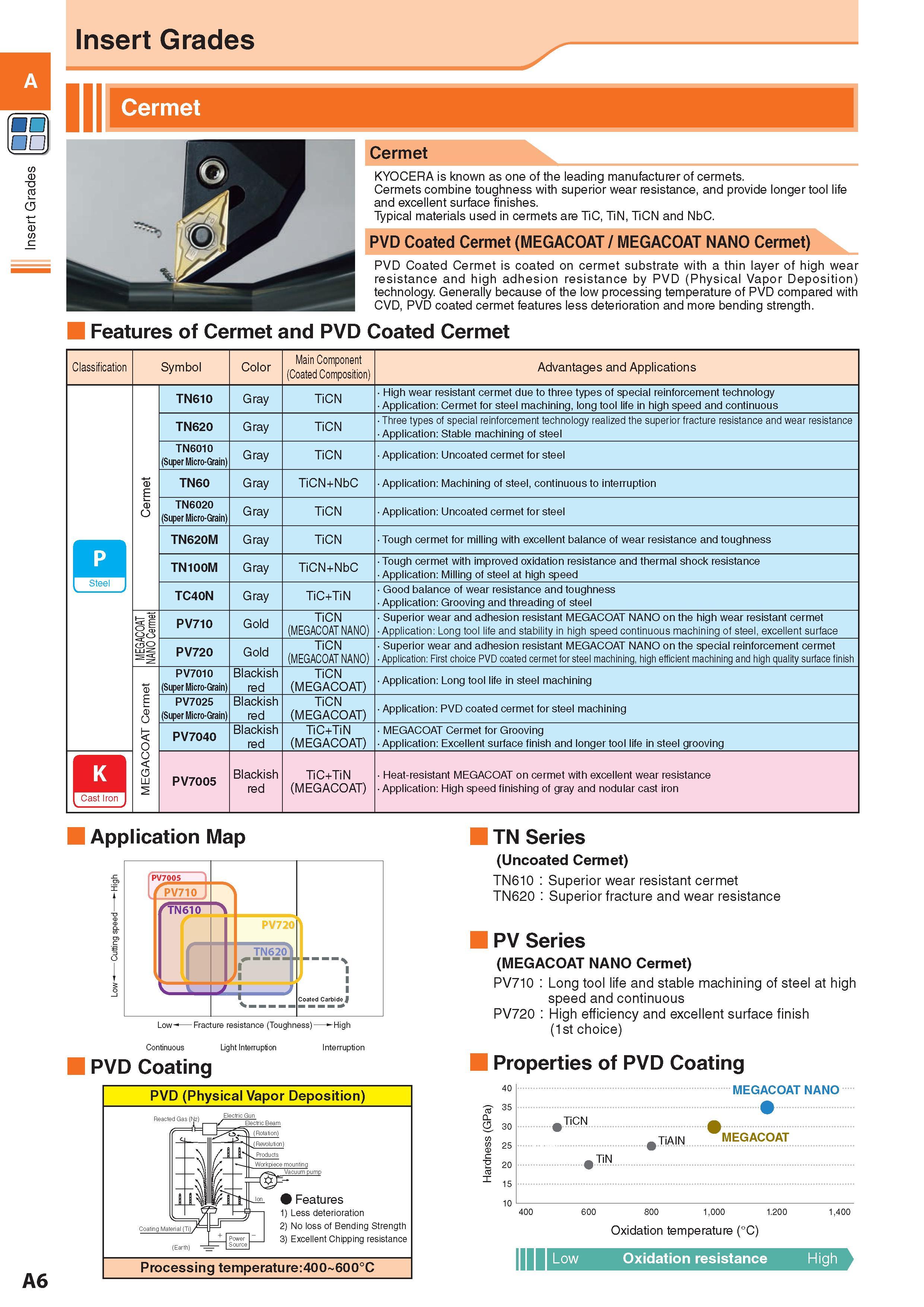

Описание свойств материалов режущих инструментов Твердые сплавы Kyocera для режущих сменных пластин Точение стали и чугуна Области применения _ Insert Grades Cermet KYOCERA is known as one of the leading manufacturer of cermets. Cermets combine toughness with superior wear resistance, and provide longer tool life and excellent surface finishes. Typical materials used in cermets are TiC, TiN, TiCN and NbC. PVD Coated Cermet (MEGACOAT / MEGACOAT NANO Cermet) PVD Coated Cermet is coated on cermet substrate with a thin layer of high wear resistance and high adhesion resistance by PVD (Physical Vapor Deposition) technology. Generally because of the low processing temperature of PVD compared with CVD, PVD coated cermet features less deterioration and more bending strength. Features of Cermet and PVD Coated Cermet Classification Symbol Color Main Component (Coated Composition) Advantages and Applications H a mr er O TN610 Gray TiCN High wear resistant cermet due to three types of special reinforcement technology Application: Cermet for steel machining, long tool life in high speed and continuous TN620 Gray TiCN Three types of special reinforcement technology realized the superior fracture resistance and wear resistance Application: Stable machining of steel TN6010 (Super Micro-Grain) Gray TiCN Application: Uncoated cermet for steel TN60 Gray TiCN+NbC Application: Machining of steel, continuous to interruption TN6020 (Super Micro-Grain) Gray TiCN Application: Uncoated cermet for steel TN620M Gray TiCN Tough cermet for milling with excellent balance of wear resistance and toughness TN100M Gray TiCN+NbC Tough cermet with improved oxidation resistance and thermal shock resistance Application: Milling of steel at high speed Steel TC40N Gray TiC+TiN Good balance of wear resistance and toughness Application: Grooving and threading of steel MEGACOAT NANO Cermet PV710 Gold TiCN (MEGACOAT NANO) Superior wear and adhesion resistant MEGACOAT NANO on the high wear resistant cermet Application: Long tool life and stability in high speed continuous machining of steel, excellent surface PV720 Gold TiCN (MEGACOAT NANO) Superior wear and adhesion resistant MEGACOAT NANO on the special reinforcement cermet Application: First choice PVD coated cermet for steel machining, high efficient machining and high quality surface finish MEGACOAT Cermet PV7010 (Super Micro-Grain) Blackish red TiCN (MEGACOAT) Application: Long tool life in steel machining PV7025 (Super Micro-Grain) Blackish red TiCN (MEGACOAT) Application: PVD coated cermet for steel machining PV7040 Blackish red TiC+TiN (MEGACOAT) MEGACOAT Cermet for Grooving Application: Excellent surface finish and longer tool life in steel grooving FI 1 Cast Iron 1 PV7005 Blackish red TiC+TiN (MEGACOAT) Heat-resistant MEGACOAT on cermet with excellent wear resistance Application: High speed finishing of gray and nodular cast iron Application Map A6 PV710 TN610 PV720 " TN620\ J l / Coated Carbide w Fracture resistance (Toughness) PVD Coating Light Interruption High Interruption PVD (Physical Vapor Deposition) Reacted Gas (N2) Coating Material (Ti) Features 1) Less deterioration 2) No loss of Bending Strength 3) Excellent Chipping resistance Processing temperature:400 600°C TN Series (Uncoated Cermet) TN610 : Superior wear resistant cermet TN620 : Superior fracture and wear resistance PV Series (MEGACOAT NANO Cermet) PV710 : Long tool life and stable machining of steel at high speed and continuous PV720 : High efficiency and excellent surface finish (1st choice) Properties of PVD Coating cc 35 Q O 30 re MEGACOAT NANO TiCN TiAlN MEGACOAT TiN llll 600 800 1,000 1.200 Oxidation temperature (°C) Low Oxidation resistance High 40 20 10 400
