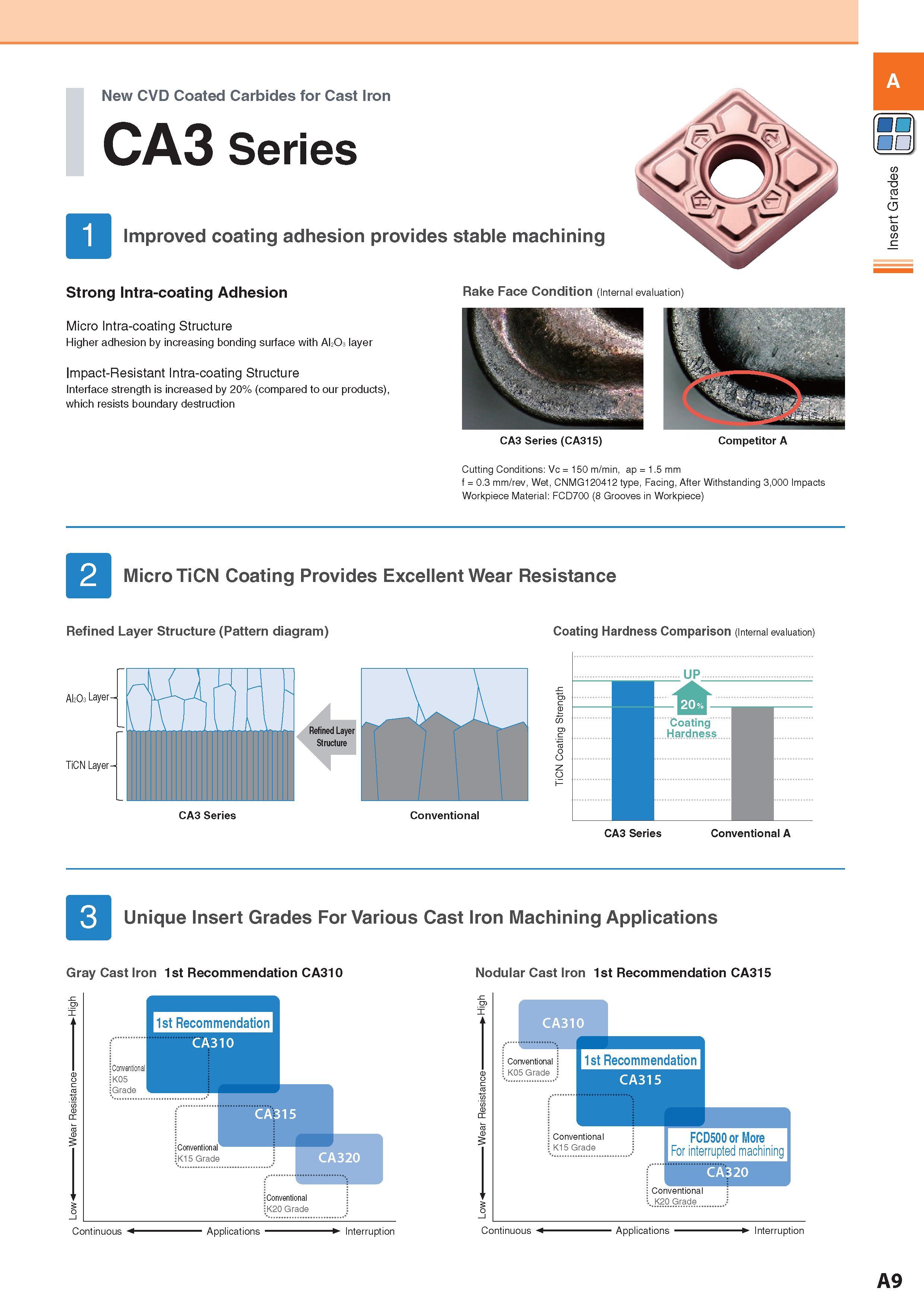

New CVD Coated Carbides for Cast Iron CA3 Series Improved coating adhesion provides stable machining Strong Intra-coating Adhesion Micro Intra-coating Structure Higher adhesion by increasing bonding surface with AhO3 layer Impact-Resistant Intra-coating Structure Interface strength is increased by 20% (compared to our products), which resists boundary destruction Rake Face Condition (Internal evaluation) CA3 Series (CA315) Competitor A Cutting Conditions: Vc = 150 m/min, ap = 1.5 mm f = 0.3 mm/rev, Wet, CNMG120412 type, Facing, After Withstanding 3,000 Impacts Workpiece Material: FCD700 (8 Grooves in Workpiece) Micro TiCN Coating Provides Excellent Wear Resistance Refined Layer Structure (Pattern diagram) M2O3Layer- Coating Hardness Comparison (Internal evaluation) TiCN Layer - CA3 Series Conventional CA3 Series Conventional A Unique Insert Grades For Various Cast Iron Machining Applications Gray Cast Iron 1st Recommendation CA310 1st Recommendation Continuous ' Applications Interruption Nodular Cast Iron 1st Recommendation CA315 Conventional K05 Grade CA315 Conventional K15 Grade FCD500 or More For interrupted machining Conventional . K20 Grade Continuous Applications 1 Interruption A9 Insert Grades
