16 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.A8

Каталог KYOCERA 2017 Инструмент режущий Стр. A8 0016 Lab2u

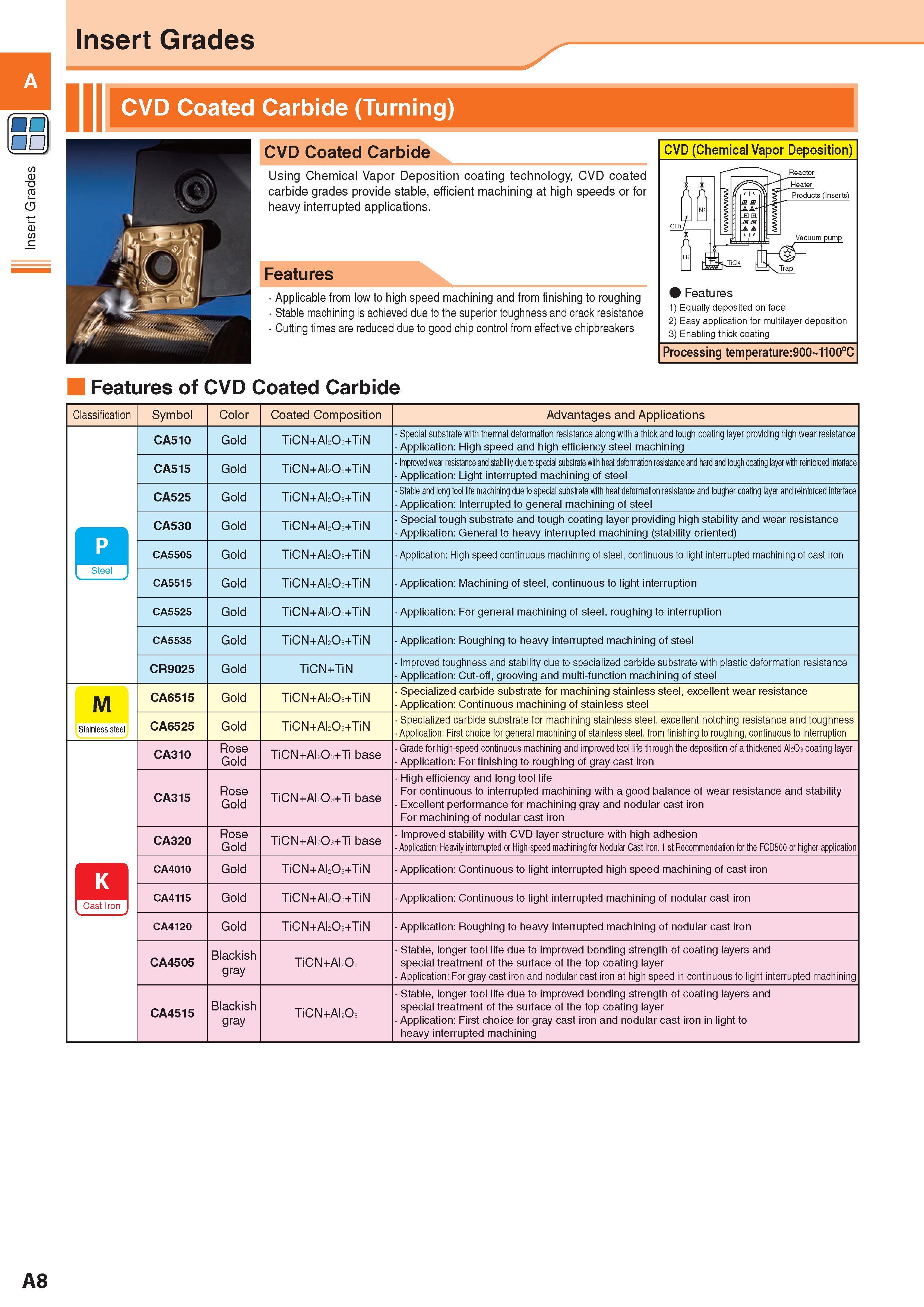

PP Insert Grades Insert Grades CVD Coated Carbide (Turning) CVD Coated Carbide Features Applicable from low to high speed machining and from finishing to roughing Stable machining is achieved due to the superior toughness and crack resistance Cutting times are reduced due to good chip control from effective chipbreakers Features of CVD Coated Carbide Using Chemical Vapor Deposition coating technology, CVD coated carbide grades provide stable, efficient machining at high speeds or for heavy interrupted applications. CVD (Chemical Vapor Deposition) Features 1) Equally deposited on face 2) Easy application for multilayer deposition 3) Enabling thick coating Processing temperature:900 1100°C Classification Symbol Color Coated Composition Advantages and Applications CA510 Gold TiCN+AhOs+TiN Special substrate with thermal deformation resistance along with a thick and tough coating layer providing high wear resistance Application: High speed and high efficiency steel machining CA515 Gold TiCN+AhOs+TiN Improved wear resistance and stability due to special substrate with heat deformation resistance and hard and tough coating layer with reinforced interlace Application: Light interrupted machining of steel CA525 Gold TiCN+AbOs+TiN Stable and long tool life machining due to special substrate with heat deformation resistance and tougher coating layer and reinforced interface Application: Interrupted to general machining of steel PP CA530 Gold TiCN+AbOs+TiN Special tough substrate and tough coating layer providing high stability and wear resistance Application: General to heavy interrupted machining (stability oriented) CA5505 Gold TiCN+AhOs+TiN Application: High speed continuous machining of steel, continuous to light interrupted machining of cast iron Steel CA5515 Gold TiCN+AhOs+TiN Application: Machining of steel, continuous to light interruption CA5525 Gold TiCN+AhOs+TiN Application: For general machining of steel, roughing to interruption CA5535 Gold TiCN+AbOs+TiN Application: Roughing to heavy interrupted machining of steel CR9025 Gold TiCN+TiN Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance Application: Cut-off, grooving and multi-function machining of steel M Stainless steel CA6515 Gold TiCN+AhOs+TiN Specialized carbide substrate for machining stainless steel, excellent wear resistance Application: Continuous machining of stainless steel CA6525 Gold TiCN+AhOs+TiN Specialized carbide substrate for machining stainless steel, excellent notching resistance and toughness Application: First choice for general machining of stainless steel, from finishing to roughing, continuous to interruption CA310 Rose Gold TiCN+A Os+Ti base Grade for high-speed continuous machining and improved tool life through the deposition of a thickened AkOa coating layer Application: For finishing to roughing of gray cast iron CA315 Rose Gold TiCN+AhOs+Ti base High efficiency and long tool life For continuous to interrupted machining with a good balance of wear resistance and stability Excellent performance for machining gray and nodular cast iron For machining of nodular cast iron CA320 Rose Gold TiCN+AhOs+Ti base Improved stability with CVD layer structure with high adhesion Application: Heavily interrupted or High-speed machining for Nodular Cast Iron. 1 st Recommendation for the FCD500 or higher application CA4010 Gold TiCN+AbOs+TiN Application: Continuous to light interrupted high speed machining of cast iron mm Cast Iron CA4115 Gold TiCN+AbOs+TiN Application: Continuous to light interrupted machining of nodular cast iron CA4120 Gold TiCN+AhOs+TiN Application: Roughing to heavy interrupted machining of nodular cast iron CA4505 Blackish gray TiCN+AhOs Stable, longer tool life due to improved bonding strength of coating layers and special treatment of the surface of the top coating layer Application: For gray cast iron and nodular cast iron at high speed in continuous to light interrupted machining CA4515 Blackish gray TiCN+AhOs Stable, longer tool life due to improved bonding strength of coating layers and special treatment of the surface of the top coating layer Application: First choice for gray cast iron and nodular cast iron in light to heavy interrupted machining A8
