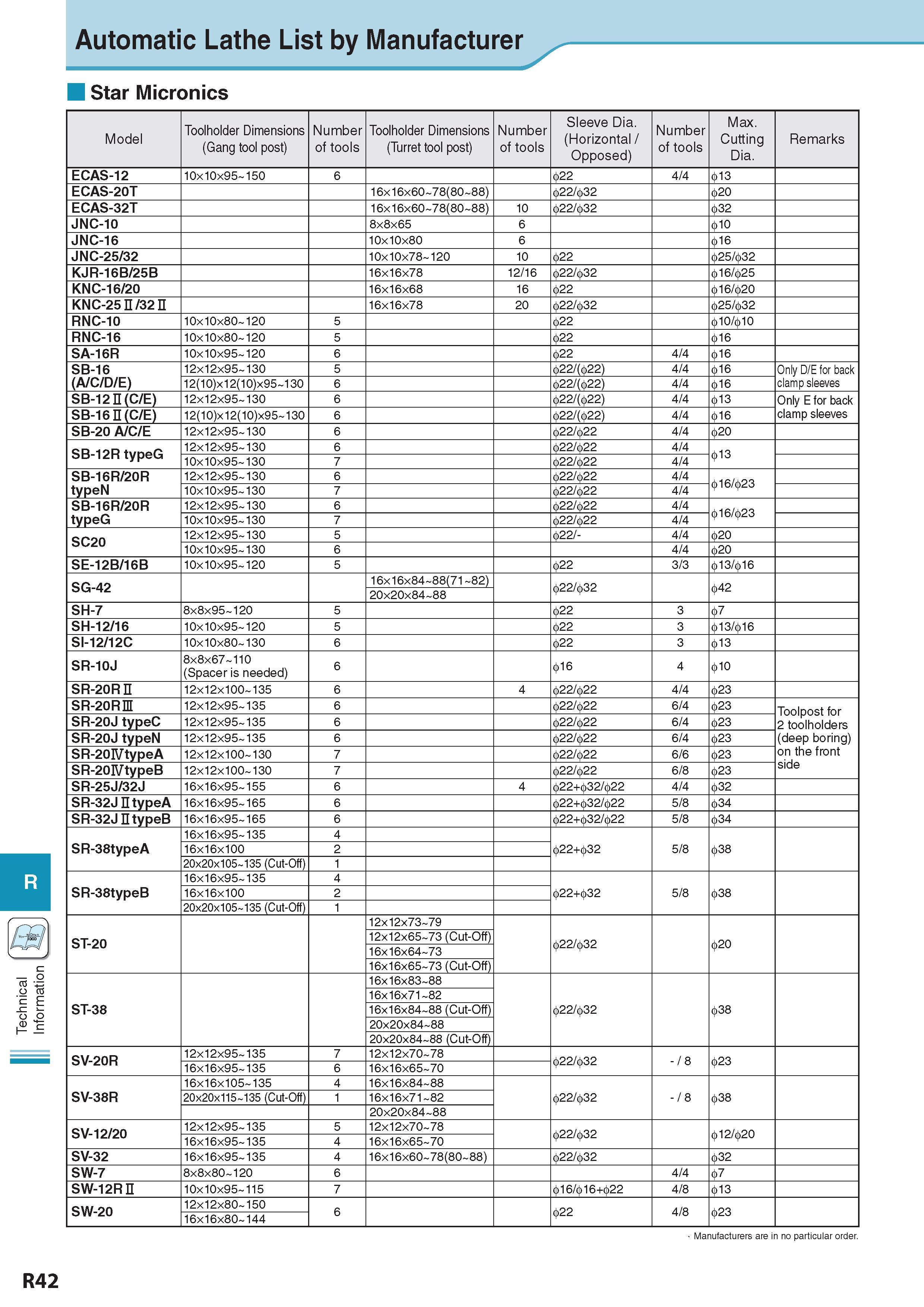

Technical Information Automatic Lathe List by Manufacturer Star Micronics Model Toolholder Dimensions (Gang tool post) Number of tools Toolholder Dimensions (Turret tool post) Number of tools Sleeve Dia. (Horizontal / Opposed) Number of tools Max. Cutting Dia. Remarks Примечания ECAS-12 10x10x95-150 6 022 4/4 013 ECAS-20T 16x16x60-78(80-88) 022/032 020 ECAS-32T 16x16x60-78(80-88) 10 022/032 032 JNC-10 8x8x65 6 010 JNC-16 10x10x80 6 016 JNC-25/32 10x10x78-120 10 022 025/032 KJR-16B/25B 16x16x78 12/16 022/032 016/025 KNC-16/20 16x16x68 16 022 016/020 KNC-25 H/32 n 16x16x78 20 022/032 025/032 RNC-10 10x10x80-120 5 022 010/010 RNC-16 10x10x80-120 5 022 016 SA-16R 10x10x95-120 6 022 4/4 016 SB-16 (A/C/D/E) 12x12x95-130 5 022/(022) 4/4 016 Only D/E for back clamp sleeves 12(10)x12(10)x95 130 6 022/(022) 4/4 016 SB-12 n (C/E) 12x12x95-130 6 022/(022) 4/4 013 Only E for back clamp sleeves SB-16 n (C/E) 12(10)x12(10)x95-130 6 022/(022) 4/4 016 SB-20 A/C/E 12x12x95-130 6 022/022 4/4 020 SB-12R typeG 12x12x95-130 6 022/022 4/4 013 10x10x95-130 7 022/022 4/4 SB-16R/20R typeN 12x12x95-130 6 022/022 4/4 016/023 10x10x95-130 7 022/022 4/4 SB-16R/20R typeG 12x12x95-130 6 022/022 4/4 016/023 10x10x95-130 7 022/022 4/4 SC20 12x12x95-130 5 022/- 4/4 020 10x10x95-130 6 4/4 020 SE-12B/16B 10x10x95-120 5 022 3/3 013/016 SG-42 16x16x84-88(71-82) 022/032 042 20x20x84-88 SH-7 8x8x95-120 5 022 3 07 SH-12/16 10x10x95-120 5 022 3 013/016 SI-12/12C 10x10x80-130 6 022 3 013 SR-10J 8x8x67-110 (Spacer is needed) 6 016 4 010 SR-20Rn 12x12x100-135 6 4 022/022 4/4 023 SR-20RM 12x12x95-135 6 022/022 6/4 023 Toolpost for 2 toolholders (deep boring) on the front side SR-20J typeC 12x12x95-135 6 022/022 6/4 023 SR-20J typeN 12x12x95-135 6 022/022 6/4 023 SR-20WtypeA 12x12x100-130 7 022/022 6/6 023 SR-20WtypeB 12x12x100-130 7 022/022 6/8 023 SR-25J/32J 16x16x95-155 6 4 022+032/022 4/4 032 SR-32J ntypeA 16x16x95-165 6 022+032/022 5/8 034 SR-32J ntypeB 16x16x95-165 6 022+032/022 5/8 034 SR-38typeA 16x16x95-135 4 022+032 5/8 038 16x16x100 2 20x20x105-135 (Cut-Off) 1 SR-38typeB 16x16x95-135 4 022+032 5/8 038 16x16x100 2 20x20x105-135 (Cut-Off) 1 ST-20 12x12x73-79 022/032 020 12x12x65-73 (Cut-Off) 16x16x64-73 16x16x65-73 (Cut-Off) ST-38 16x16x83-88 022/032 038 16x16x71-82 16x16x84-88 (Cut-Off) 20x20x84-88 20x20x84-88 (Cut-Off) SV-20R 12x12x95-135 7 12x12x70-78 022/032 - / 8 023 16x16x95-135 6 16x16x65-70 SV-38R 16x16x105-135 4 16x16x84-88 022/032 - / 8 038 20x20x115-135 (Cut-Off) 1 16x16x71-82 20x20x84-88 SV-12/20 12x12x95-135 5 12x12x70-78 022/032 012/020 16x16x95-135 4 16x16x65-70 SV-32 16x16x95-135 4 16x16x60-78(80-88) 022/032 032 SW-7 8x8x80-120 6 4/4 07 SW-12Rn 10x10x95-115 7 016/016+022 4/8 013 SW-20 12x12x80-150 6 022 4/8 023 16x16x80-144 Manufacturers are in no particular order. R42
