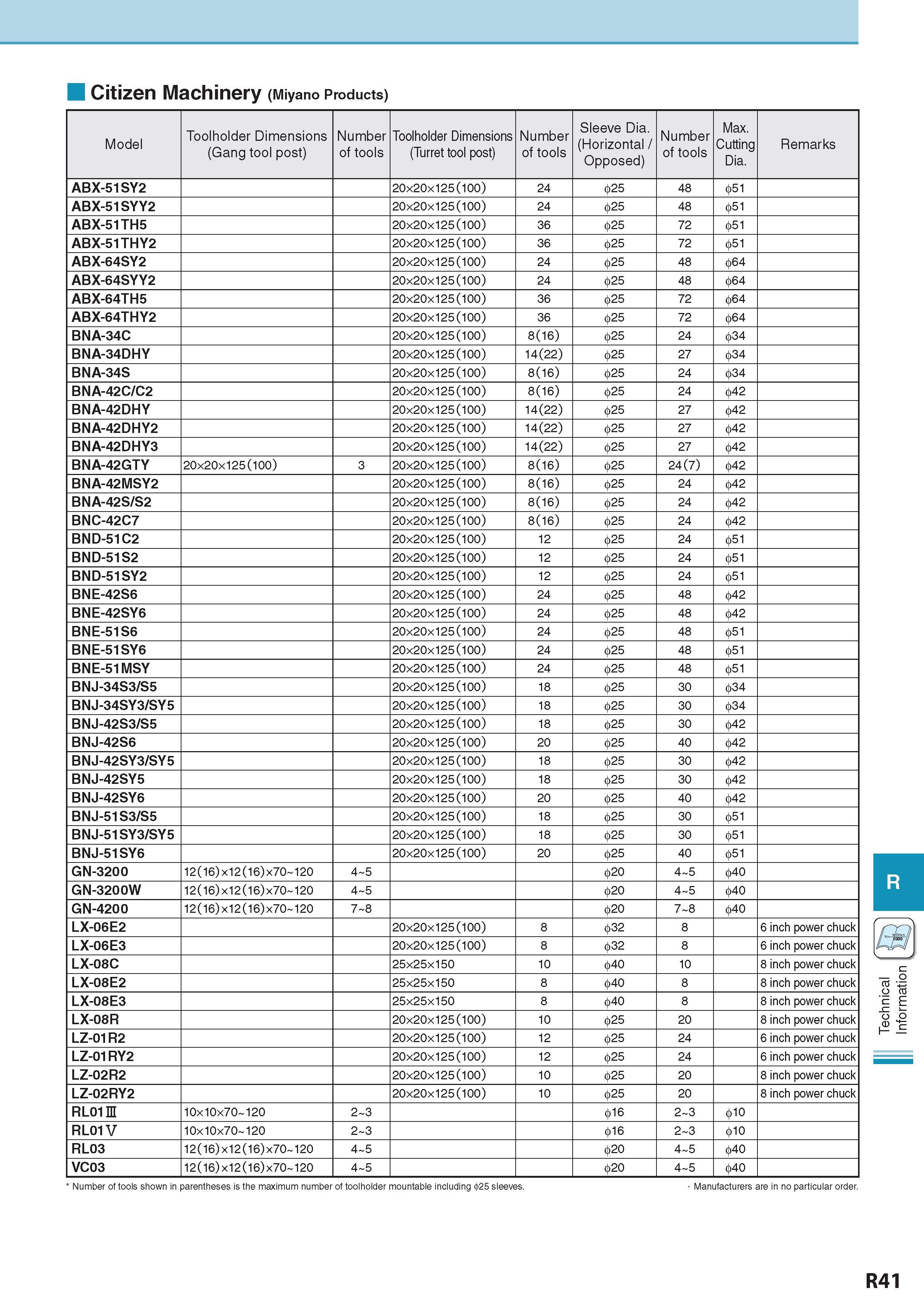

Citizen Machinery (Miyano Products) Model Toolholder Dimensions (Gang tool post) Number of tools Toolholder Dimensions (Turret tool post) Number of tools Sleeve Dia. (Horizontal / Opposed) Number of tools Max. Cutting Dia. Remarks Примечания ABX-51SY2 20x20x125 100) 24 25 48 51 ABX-51SYY2 20x20x125 100) 24 25 48 51 ABX-51TH5 20x20x125 100) 36 25 72 51 ABX-51THY2 20x20x125 100) 36 25 72 51 ABX-64SY2 20x20x125 100) 24 25 48 64 ABX-64SYY2 20x20x125 100) 24 25 48 64 ABX-64TH5 20x20x125 100) 36 25 72 64 ABX-64THY2 20x20x125 100) 36 25 72 64 BNA-34C 20x20x125 100) ((16) 25 24 34 BNA-34DHY 20x20x125 100) 1((22) 25 27 34 BNA-34S 20x20x125 100) ((16) 25 24 34 BNA-42C/C2 20x20x125 100) ((16) 25 24 42 BNA-42DHY 20x20x125 100) 1((22) 25 27 42 BNA-42DHY2 20x20x125 100) 1((22) 25 27 42 BNA-42DHY3 20x20x125 100) 1((22) 25 27 42 BNA-42GTY 20x20x125(100) 3 20x20x125 100) ((16) 25 24(7) 42 BNA-42MSY2 20x20x125 100) ((16) 25 24 42 BNA-42S/S2 20x20x125 100) ((16) 25 24 42 BNC-42C7 20x20x125 100) ((16) 25 24 42 BND-51C2 20x20x125 100) 12 25 24 51 BND-51S2 20x20x125 100) 12 25 24 51 BND-51SY2 20x20x125 100) 12 25 24 51 BNE-42S6 20x20x125 100) 24 25 48 42 BNE-42SY6 20x20x125 100) 24 25 48 42 BNE-51S6 20x20x125 100) 24 25 48 51 BNE-51SY6 20x20x125 100) 24 25 48 51 BNE-51MSY 20x20x125 100) 24 25 48 51 BNJ-34S3/S5 20x20x125 100) 18 25 30 34 BNJ-34SY3/SY5 20x20x125 100) 18 25 30 34 BNJ-42S3/S5 20x20x125 100) 18 25 30 42 BNJ-42S6 20x20x125 100) 20 25 40 42 BNJ-42SY3/SY5 20x20x125 100) 18 25 30 42 BNJ-42SY5 20x20x125 100) 18 25 30 42 BNJ-42SY6 20x20x125 100) 20 25 40 42 BNJ-51S3/S5 20x20x125 100) 18 25 30 51 BNJ-51SY3/SY5 20x20x125 100) 18 25 30 51 BNJ-51SY6 20x20x125 100) 20 25 40 51 GN-3200 12(16)x12(16)x70 120 4 5 20 4 5 40 GN-3200W 1((16)x12(16)x70 120 4 5 20 4 5 40 GN-4200 12(16)x12(16)x70 120 7 8 20 7 8 40 LX-06E2 20x20x125(100) 8 32 8 6 inch power chuck LX-06E3 20x20x125(100) 8 32 8 6 inch power chuck LX-08C 25x25x150 10 40 10 8 inch power chuck LX-08E2 25x25x150 8 40 8 8 inch power chuck LX-08E3 25x25x150 8 40 8 8 inch power chuck LX-08R 20x20x125(100) 10 25 20 8 inch power chuck LZ-01R2 20x20x125(100) 12 25 24 6 inch power chuck LZ-01RY2 20x20x125(100) 12 25 24 6 inch power chuck LZ-02R2 20x20x125(100) 10 25 20 8 inch power chuck LZ-02RY2 20x20x125(100) 10 25 20 8 inch power chuck RL01 m 10x10x70 120 2 3 16 2 3 10 RL01V 10x10x70 120 2 3 16 2 3 10 RL03 12(16)x12(16)x70 120 4 5 20 4 5 40 VC03 12(16)x12(16)x70 120 4 5 20 4 5 40 Number of tools shown in parentheses is the maximum number of toolholder mountable including 25 sleeves. Manufacturers are in no particular order. R41 Technical Information
