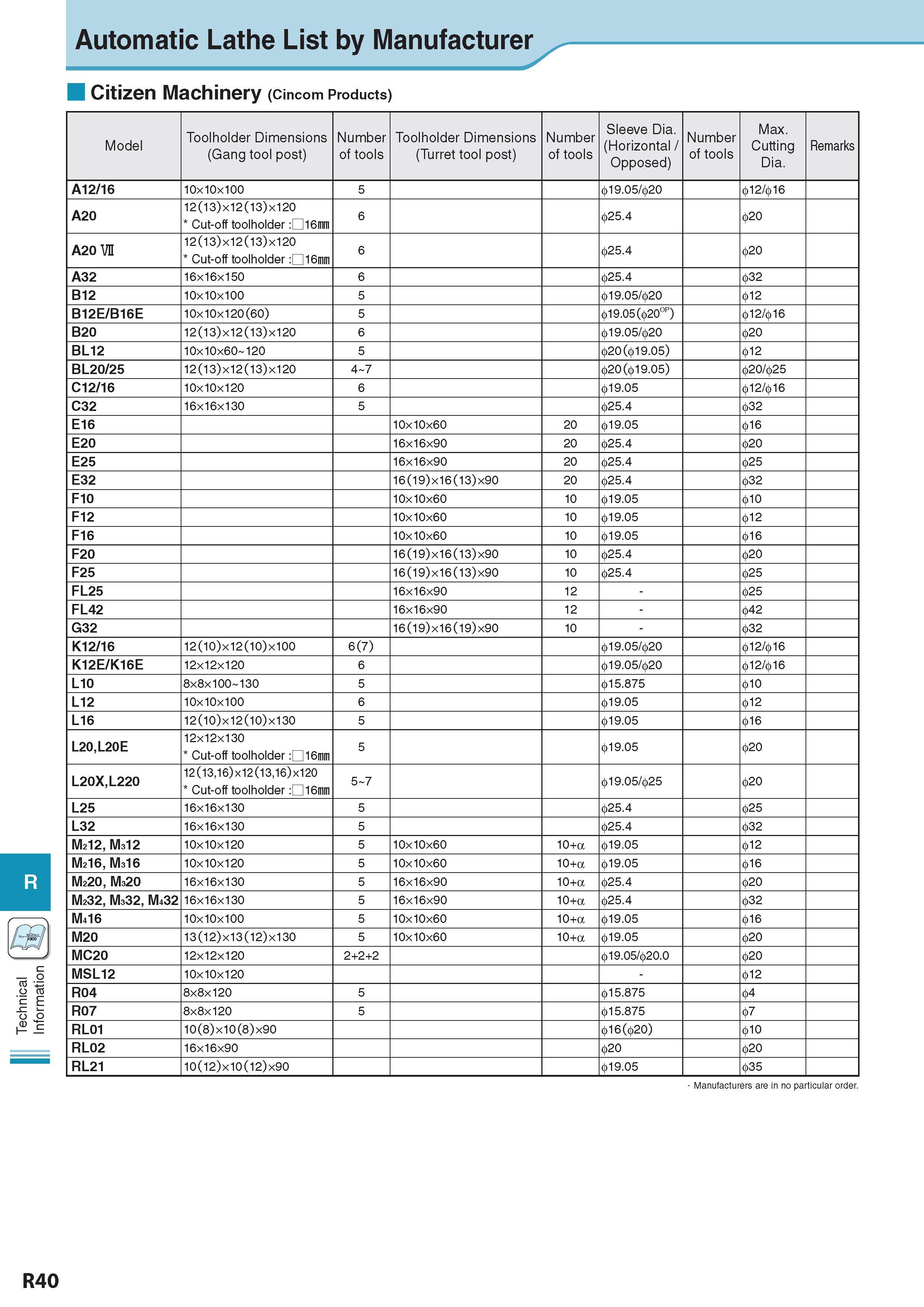

Technical Information Automatic Lathe List by Manufacturer Citizen Machinery (Cincom Products) Model Toolholder Dimensions (Gang tool post) Number of tools Toolholder Dimensions (Turret tool post) Number of tools Sleeve Dia. (Horizontal / Opposed) Number of tools . g X-CC MC Remarks Примечания A12/16 10x10x100 5 419.05/420 412/416 A20 12(13)x12(13)x120 Cut-off toolholder 016mm 6 425.4 420 A20 W 12(13)x12(13)x120 Cut-off toolholder :G16mm 6 425.4 420 A32 16x16x150 6 425.4 432 B12 10x10x100 5 419.05/420 412 B12E/B16E 10x10x120(60) 5 419.05(420 P) 412/416 B20 12(13)x12(13)x120 6 419.05/420 420 BL12 10x10x60 120 5 420(419.05) 412 BL20/25 12(13)x12(13)x120 4 7 420(419.05) 420/425 C12/16 10x10x120 6 419.05 412/416 C32 16x16x130 5 425.4 432 E16 10x10x60 20 419.05 416 E20 16x16x90 20 425.4 420 E25 16x16x90 20 425.4 425 E32 16(19)x16(13)x90 20 425.4 432 F10 10x10x60 10 419.05 410 F12 10x10x60 10 419.05 412 F16 10x10x60 10 419.05 416 F20 16(19)x16(13)x90 10 425.4 420 F25 16(19)x16(13)x90 10 425.4 425 FL25 16x16x90 12 - 425 FL42 16x16x90 12 - 442 G32 16(19)x16(19)x90 10 - 432 K12/16 12(10)x12(10)x100 6(7) 419.05/420 412/416 K12E/K16E 12x12x120 6 419.05/420 412/416 L10 8x8x100 130 5 415.875 410 L12 10x10x100 6 419.05 412 L16 12(10)x12(10)x130 5 419.05 416 L20,L20E 12x12x130 Cut-off toolholder :G16mm 5 419.05 420 L20X,L220 12(13,16)x12(13,16)x120 Cut-off toolholder :G16mm 5 7 419.05/425 420 L25 16x16x130 5 425.4 425 L32 16x16x130 5 425.4 432 M212, Ma12 10x10x120 5 10x10x60 10+a 419.05 412 M216, Ma16 10x10x120 5 10x10x60 10+a 419.05 416 M220, Ma20 16x16x130 5 16x16x90 10+a 425.4 420 M232, Ma32, M432 16x16x130 5 16x16x90 10+a 425.4 432 M416 10x10x100 5 10x10x60 10+a 419.05 416 M20 13(12)x13(12)x130 5 10x10x60 10+a 419.05 420 MC20 12x12x120 2+2+2 419.05/420.0 420 MSL12 10x10x120 - 412 R04 8x8x120 5 415.875 44 R07 8x8x120 5 415.875 47 RL01 1((8)x10(8)x90 41((420) 410 RL02 16x16x90 420 420 RL21 1((12)x10(12)x90 419.05 435 Manufacturers are in no particular order. R40
