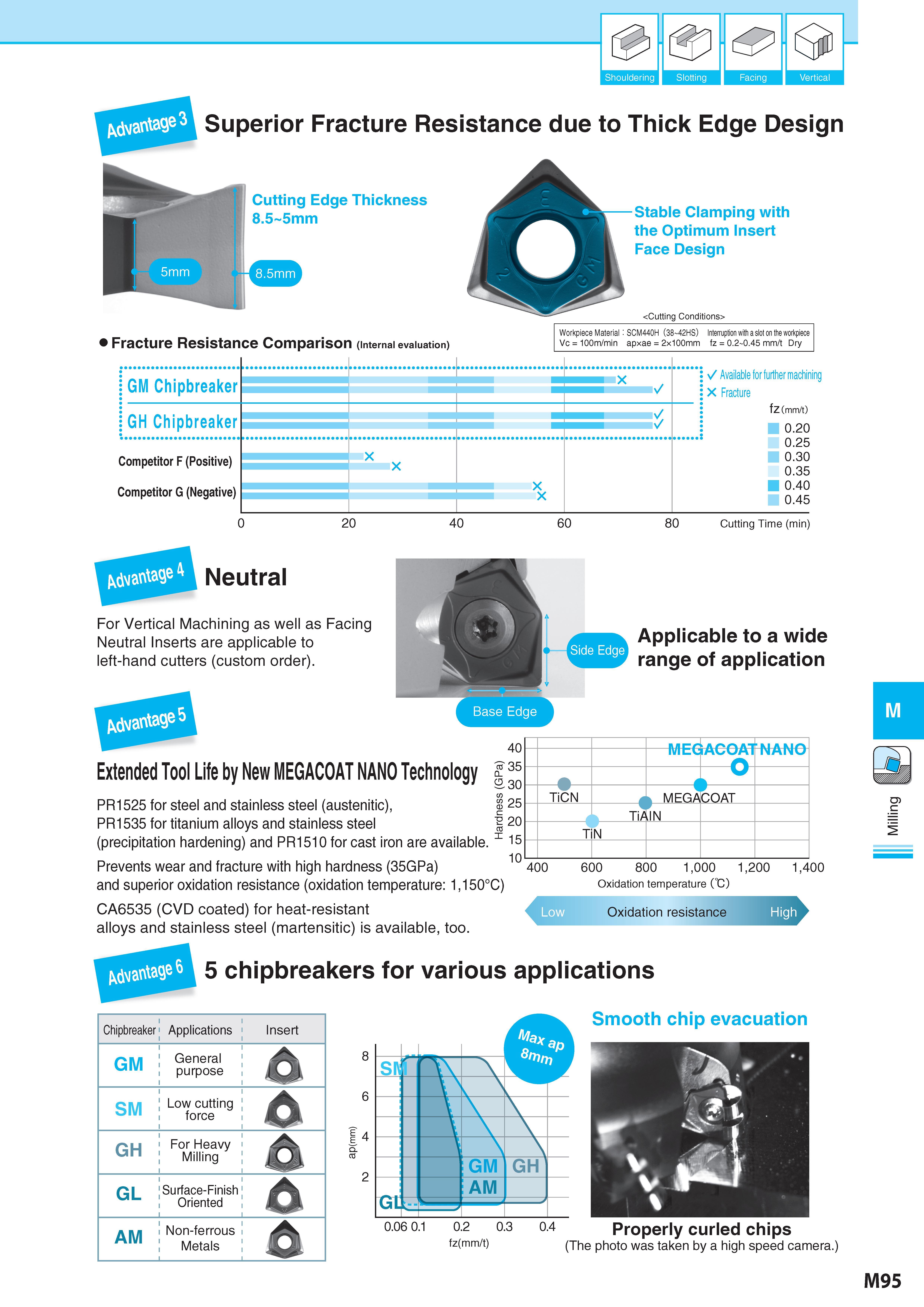

0 (£5 s Shouldering Slotting Facing Vertical Superior Fracture Resistance due to Thick Edge Design m 5mm Cutting Edge Thickness 8.5 5mm Stable Clamping with the Optimum Insert Face Design Fracture Resistance Comparison (Internal evaluation) ..................f................ Workpiece Material: SCM440H (38-42HS) Interruption with a slot on the workpiece Vc = 100m/min apxae = 2x100mm fz = 0.2-0.45 mm/t Dry GM Chipbreaker Стружколом сменной пластины GH Chipbreaker Стружколом сменной пластины Competitor F (Positive) Competitor G (Negative) f X X n/ v/ Available for further machining X Fracture fz (mm/t) 0.20 0.25 0.30 0.35 0.40 0.45 0 20 40 60 80 Cutting Time (min) Neutral For Vertical Machining as well as Facing Neutral Inserts are applicable to left-hand cutters (custom order). Applicable to a wide range of application Extended Tool Life by New MEGACOAT NANO Technology PR1525 for steel and stainless steel (austenitic), PR1535 for titanium alloys and stainless steel (precipitation hardening) and PR1510 for cast iron are available Prevents wear and fracture with high hardness (35GPa) and superior oxidation resistance (oxidation temperature: 1,150°C) CA6535 (CVD coated) for heat-resistant alloys and stainless steel (martensitic) is available, too. 40 35 CL S30
