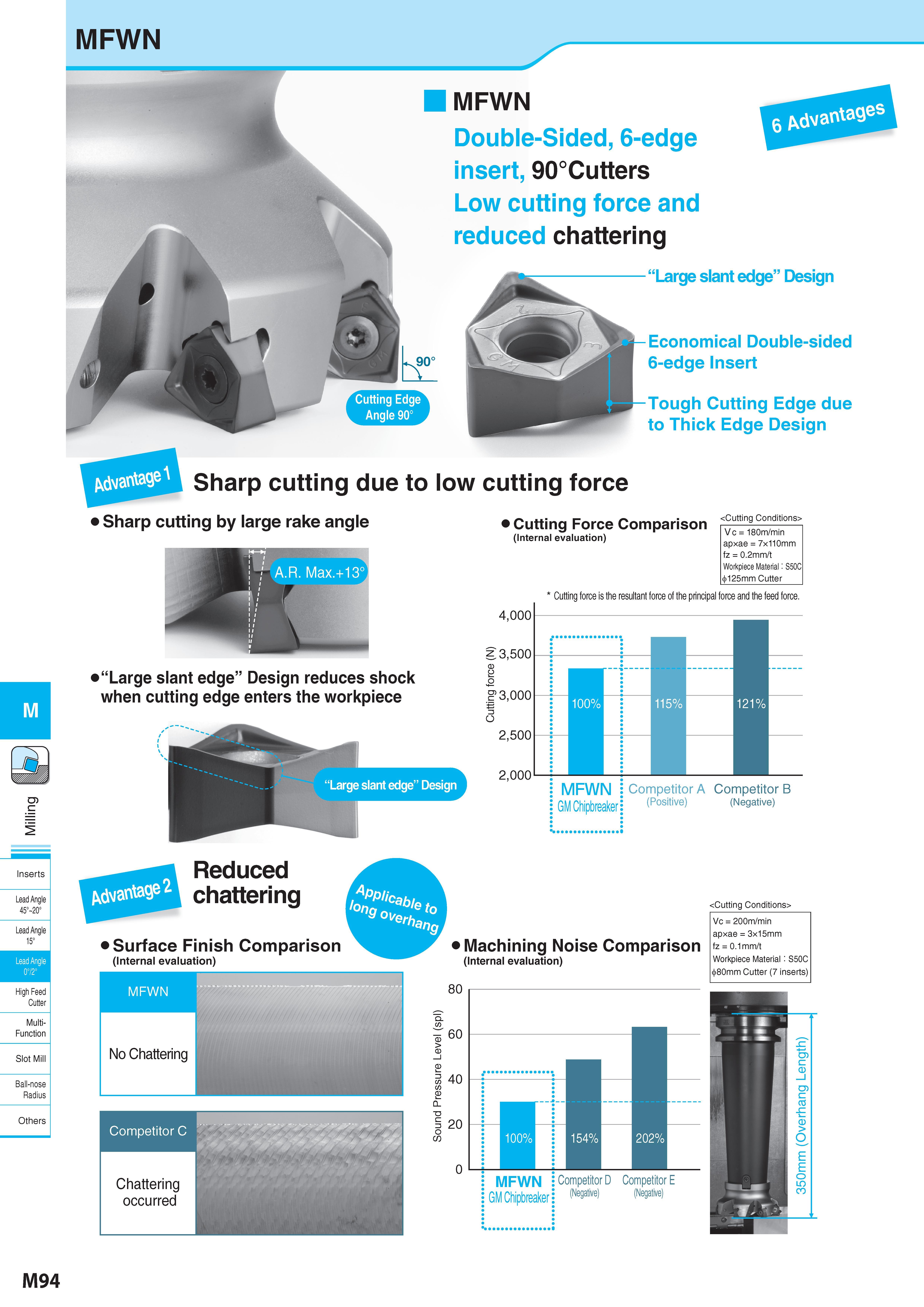

MFWN Inserts Lead Angle 45° 20° Lead Angle 15° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MFWN Double-Sided, 6-edge insert, 90°Cutters Low cutting force and reduced chattering “Large slant edge” Design Economical Double-sided 6-edge Insert Tough Cutting Edge due to Thick Edge Design Sharp cutting due to low cutting force Sharp cutting by large rake angle Cutting Force Comparison (Internal evaluation) Vc = 180m/min apxae = 7x110mm fz = 0.2mm/t Workpiece Material: S50C 125mm Cutter “Large slant edge” Design reduces shock when cutting edge enters the workpiece 4,000 ) 3,500 g 3,000 o 2,500 2,000 " Cutting force is the resultant force of the principal force and the feed force. MFWN GM Chipbreaker Стружколом сменной пластины Competitor A Competitor B (Positive) (Negative) Reduced chattering Surface Finish Comparison (Internal evaluation) Machining Noise Comparison (Internal evaluation) 80 60 Vc = 200m/min apxae = 3x15mm fz = 0.1mm/t Workpiece Material Обрабатываемый материал : S50C 80mm Cutter (7 inserts) 40 20 0 M94
