796 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M46

Каталог KYOCERA 2017 Инструмент режущий Стр. M46 0796 Lab2u

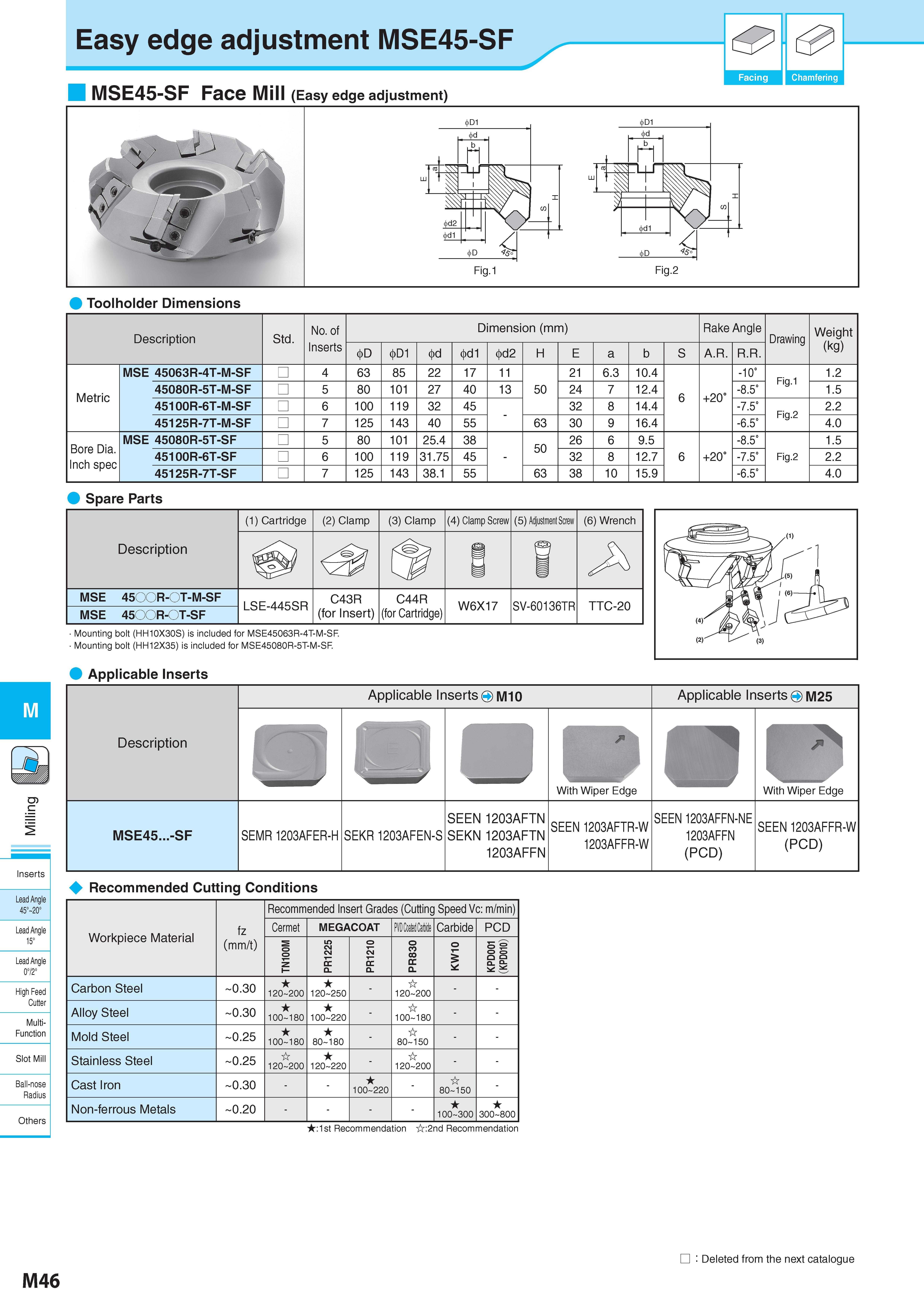

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Easy edge adjustment MSE45-SF MSE45-SF Face Mill (Easy edge adjustment) Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Drawing Weight (kg) Вес инструмента в кг (kg) D 4>D1 d 4>d1 4>d2 H E a b S A.R. R.R. Metric MSE 45063R-4T-M-SF 4 63 85 22 17 11 50 21 6.3 10.4 6 +20° -10° Fig.1 1.2 45080R-5T-M-SF 5 80 101 27 40 13 24 7 12.4 -8.5° 1.5 45100R-6T-M-SF 6 100 119 32 45 - 32 8 14.4 -7.5° Fig.2 2.2 45125R-7T-M-SF 7 125 143 40 55 63 30 9 16.4 -6.5° 4.0 Bore Dia. Inch spec MSE 45080R-5T-SF 5 80 101 25.4 38 - 50 26 6 9.5 6 +20° -8.5° Fig.2 1.5 45100R-6T-SF 6 100 119 31.75 45 32 8 12.7 -7.5° 2.2 45125R-7T-SF 7 125 143 38.1 55 63 38 10 15.9 -6.5° 4.0 Spare Parts Description Обозначение (1) Cartridge (2) Clamp (3) Clamp (4) Clamp Screw (5) Adjustment Screw (6) Wrench 8 1 A MSE 45OOR-OT-M-SF LSE-445SR C43R (for Insert) C44R (for Cartridge) W6X17 SV-60136TR TTC-20 MSE 45OOR-OT-SF Mounting bolt (HH10X30S) is included for MSE45063R-4T-M-SF Mounting bolt (HH12X35) is included for MSE45080R-5T-M-SF Applicable Inserts Description Обозначение MSE45...-SF Applicable Inserts M10 Applicable Inserts M25 SEMR 1203AFER-H SEKR 1203AFEN-S SEEN 1203AFTN SEKN 1203AFTN 1203AFFN SEEN 1203AFTR-W 1203AFFR-W SEEN 1203AFFN-NE 1203AFFN (PCD) Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet MEGACOAT PVD Coated Carbide Carbide PCD TN100M PR1225 PR1210 PR830 KW10 KPD001 (KPD010) Carbon Steel 0.30 120 200 120 250 - 120 200 Alloy Steel 0.30 100 180 100 220 - 100 180 Mold Steel 0.25 100 180 80 180 - 80 150 Stainless Steel 0.25 120 200 120 220 - 120 200 Cast Iron 0.30 - 100 220 80 150 - Non-ferrous Metals 0.20 100 300 300 800 :1st Recommendation :2nd Recommendation M46 : Deleted from the next catalogue
