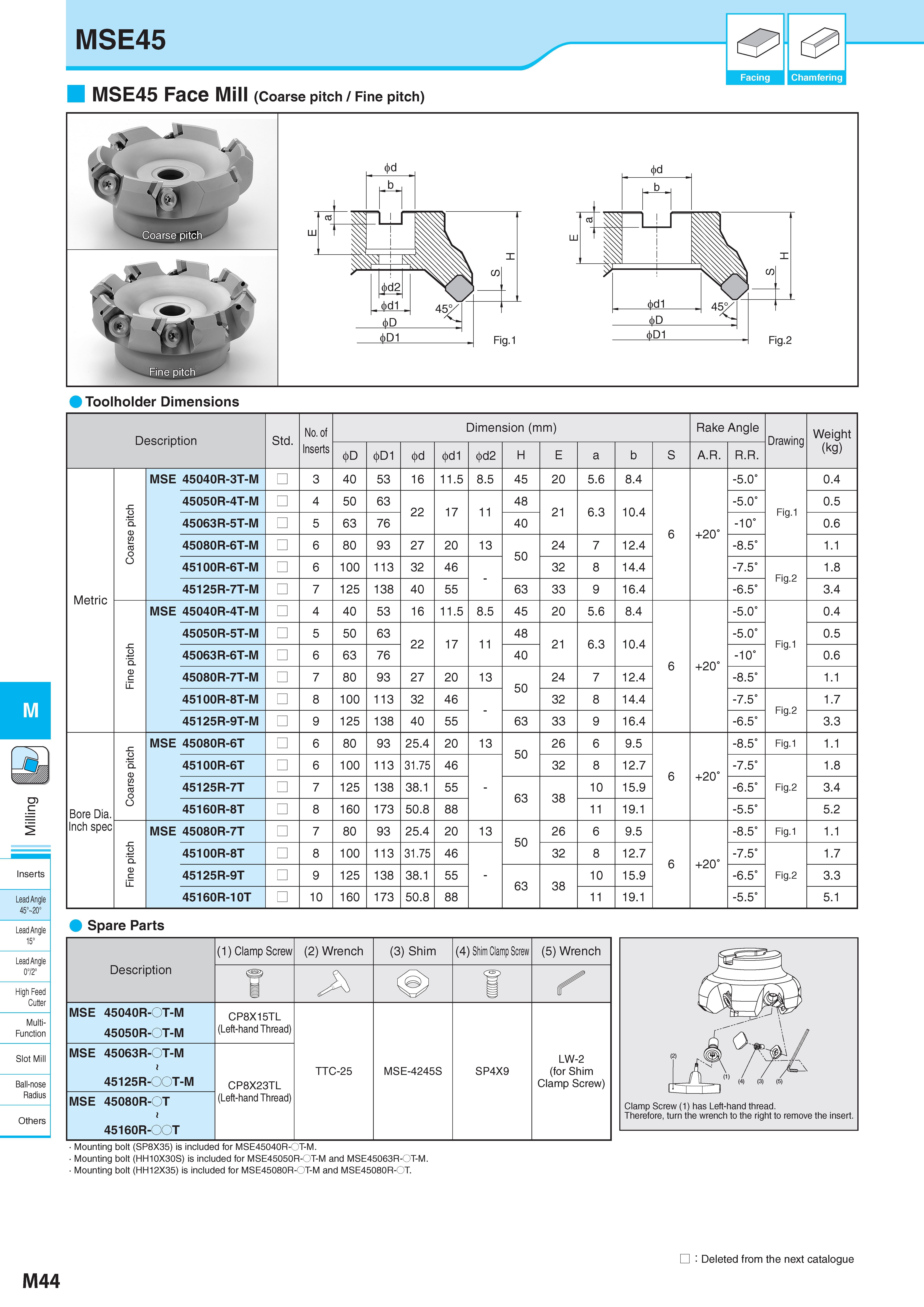

Inserts 45° 20° Q°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MSE45 MSE45 Face Mill (Coarse pitch / Fine pitch) Facing I Chamfering Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Drawing Weight (kg) Вес инструмента в кг (kg) 4>D 4>D1 d 4>d1 d2 H E a b S A.R. R.R. Metric .c tc e to CC o O MSE 45040R-3T-M 3 40 53 16 11.5 8.5 45 20 5.6 8.4 6 +20° -5.0° Fig.1 0.4 45050R-4T-M 4 50 63 22 17 11 48 21 6.3 10.4 -5.0° 0.5 45063R-5T-M 5 63 76 40 -10° 0.6 45080R-6T-M 6 80 93 27 20 13 50 24 7 12.4 -8.5° 1.1 45100R-6T-M 6 100 113 32 46 - 32 8 14.4 -7.5° Fig.2 1.8 45125R-7T-M 7 125 138 40 55 63 33 9 16.4 -6.5° 3.4 h o e c Ll MSE 45040R-4T-M 4 40 53 16 11.5 8.5 45 20 5.6 8.4 6 +20° -5.0° Fig.1 0.4 45050R-5T-M 5 50 63 22 17 11 48 21 6.3 10.4 -5.0° 0.5 45063R-6T-M 6 63 76 40 -10° 0.6 45080R-7T-M 7 80 93 27 20 13 50 24 7 12.4 -8.5° 1.1 45100R-8T-M 8 100 113 32 46 - 32 8 14.4 -7.5° Fig.2 1.7 45125R-9T-M 9 125 138 40 55 63 33 9 16.4 -6.5° 3.3 Bore Dia. Inch spec .c tc e to CC o O MSE 45080R-6T 6 80 93 25.4 20 13 50 26 6 9.5 6 +20° -8.5° Fig.1 1.1 45100R-6T 6 100 113 31.75 46 - 32 8 12.7 -7.5° Fig.2 1.8 45125R-7T 7 125 138 38.1 55 63 38 10 15.9 -6.5° 3.4 45160R-8T 8 160 173 50.8 88 11 19.1 -5.5° 5.2 h o e c Ll MSE 45080R-7T 7 80 93 25.4 20 13 50 26 6 9.5 6 +20° -8.5° Fig.1 1.1 45100R-8T 8 100 113 31.75 46 - 32 8 12.7 -7.5° Fig.2 1.7 45125R-9T 9 125 138 38.1 55 63 38 10 15.9 -6.5° 3.3 45160R-10T 10 160 173 50.8 88 11 19.1 -5.5° 5.1 Spare Parts Description Обозначение (1) Clamp Screw (2) Wrench (3) Shim (4) Shim Clamp Screw (5) Wrench 1 S MSE 45040R-0T-M 45050R-0T-M CP8X15TL (Left-hand Thread) TTC-25 MSE-4245S SP4X9 LW-2 (for Shim Clamp Screw) MSE 45063R-0T-M 45125R-OOT-M CP8X23TL (Left-hand Thread) MSE 45080R-0T 45160R-00T Clamp Screw (1) has Left-hand thread. Therefore, turn the wrench to the right to remove the insert. Mounting bolt (SP8X35) is included for MSE45040R-OT-M. Mounting bolt (HH10X30S) is included for MSE45050R-OT-M and MSE45063R-OT-M. Mounting bolt (HH12X35) is included for MSE45080R-OT-M and MSE45080R-OT. M44 : Deleted from the next catalogue
