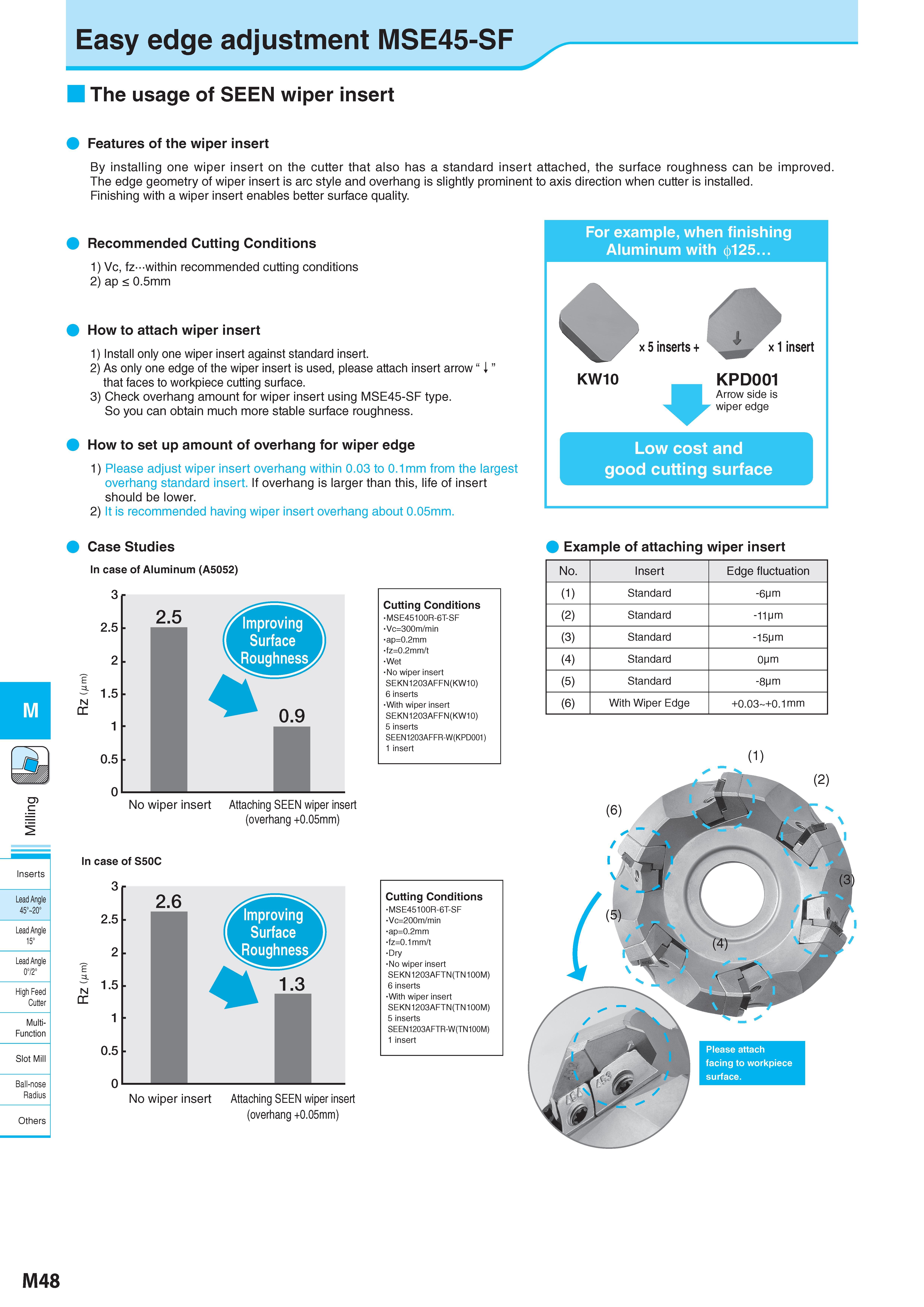

Easy edge adjustment MSE45-SF M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others The usage of SEEN wiper insert Features of the wiper insert By installing one wiper insert on the cutter that also has a standard insert attached, the surface roughness can be improved. The edge geometry of wiper insert is arc style and overhang is slightly prominent to axis direction when cutter is installed. Finishing with a wiper insert enables better surface quality. Recommended Cutting Conditions Рекомендованные режимы резания на станках 1) Vc, fz within recommended cutting conditions 2) ap < 0.5mm How to attach wiper insert 1) Install only one wiper insert against standard insert. 2) As only one edge of the wiper insert is used, please attach insert arrow “ I ” that faces to workpiece cutting surface. 3) Check overhang amount for wiper insert using MSE45-SF type. So you can obtain much more stable surface roughness. How to set up amount of overhang for wiper edge 1) Please adjust wiper insert overhang within 0.03 to 0.1mm from the largest overhang standard insert. If overhang is larger than this, life of insert should be lower. 2) It is recommended having wiper insert overhang about 0.05mm. For example, when finishing Aluminum with 4)125... x 5 inserts + x 1 insert KW10 KPD001 Arrow side is wiper edge Low cost and good cutting surface Case Studies In case of Aluminum (A5052) 3 Example of attaching wiper insert N cc No wiper insert Attaching SEEN wiper insert (overhang +0.05mm) Cutting Conditions MSE45100R-6T-SF Vc=300m/min ap=0.2mm fz=0.2mm/t Wet No wiper insert SEKN1203AFFN(KW10) 6 inserts With wiper insert SEKN1203AFFN(KW10) 5 inserts SEEN1203AFFR-W(KPD001) 1 insert No. Insert Edge fluctuation (1) Standard -6 Jm (2) Standard -11 jm (3) Standard -15 Jm (4) Standard 0 Jm (5) Standard -8 Jm (6) With Wiper Edge +0.03 +0.1mm In case of S50C 3 CC No wiper insert Attaching SEEN wiper insert (overhang +0.05mm) Cutting Conditions MSE45100R-6T-SF Vc=200m/min ap=0.2mm fz=0.1mm/t Dry No wiper insert SEKN1203AFTN(TN100M) 6 inserts With wiper insert SEKN1203AFTN(TN100M) 5 inserts SEEN1203AFTR-W(TN100M) 1 insert Please attach facing to workpiece surface. M48
