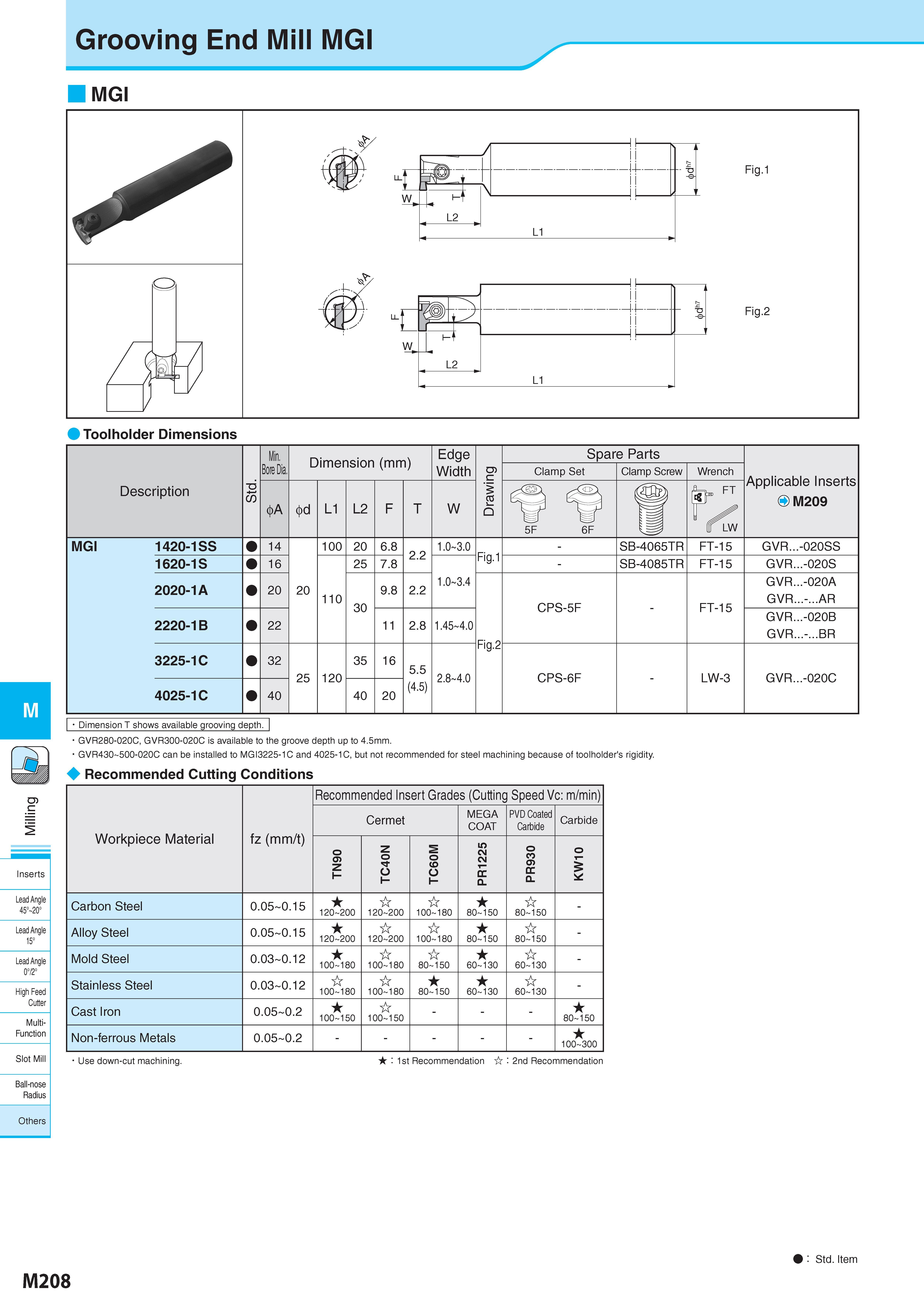

Grooving End Mill MGI MGI Toolholder Dimensions Lead Angle 45° 20° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others GVR280-020C, GVR300-020C is available to the groove depth up to 4.5mm. GVR430 500-020C can be installed to MGI3225-1C and 4025-1C, but not recommended for steel machining because of toolholder's rigidity. Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet MEGA COAT PVD Coated Carbide Carbide TN90 TC40N TC60M PR1225 PR930 KW10 Carbon Steel 0.05 0.15 120 200 120 200 100 180 80 150 80 150 - Alloy Steel 0.05 0.15 120 200 120 200 100 180 80 150 80 150 - Mold Steel 0.03 0.12 100 180 100 180 80 150 60 130 60 130 - Stainless Steel 0.03 0.12 100 180 100 180 80 150 60 130 60 130 - Cast Iron 0.05 0.2 100 150 100 150 - 80 150 Non-ferrous Metals 0.05 0.2 - 100 300 Use down-cut machining. : 1st Recommendation : 2nd Recommendation M208 : Std. Item
