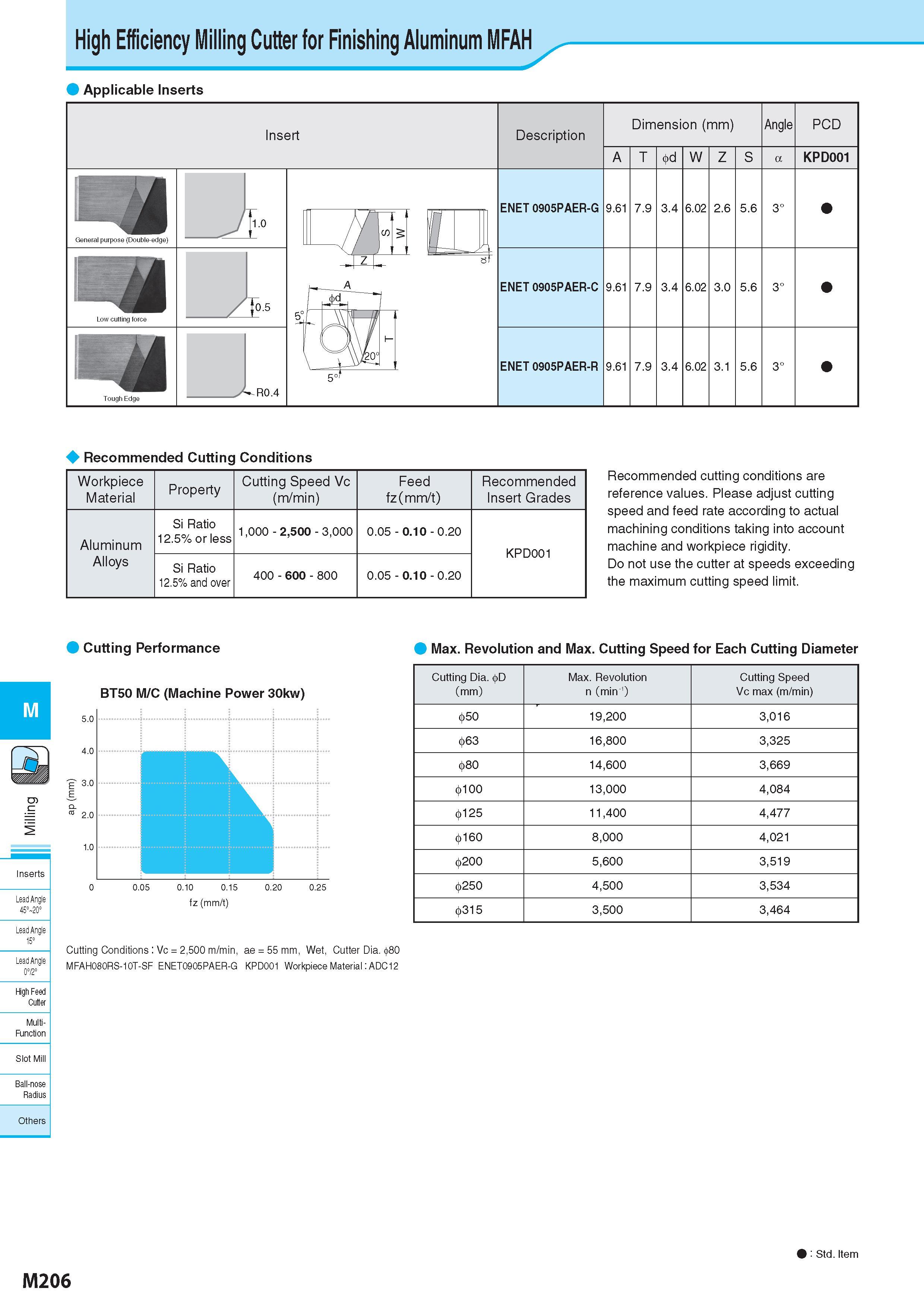

High Efficiency Milling Cutter for Finishing Aluminum MFAH Applicable Inserts Insert Description Обозначение Dimension (mm) Размеры в мм AT 4>d W Z S Angle PCD KPD001 General purpose (Double-edge) 1.0 0.5 R0.4 ENET 0905PAER-G 9.61 7.9 3.4 6.02 2.6 5.6 ENET 0905PAER-C 9.61 7.9 3.4 6.02 3.0 5.6 ENET 0905PAER-R 9.61 7.9 3.4 6.02 3.1 5.6 Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал Property Cutting Speed Vc (m/min) Feed fz(mm/t) Recommended Insert Grades Aluminum Alloys Si Ratio 12.5% or less 1,000 - 2,500 - 3,000 0.05 - 0.10 - 0.20 KPD001 Si Ratio 12.5% and over 400 - 600 - 800 0.05 - 0.10 - 0.20 Recommended cutting conditions are reference values. Please adjust cutting speed and feed rate according to actual machining conditions taking into account machine and workpiece rigidity. Do not use the cutter at speeds exceeding the maximum cutting speed limit. a Cutting Performance Lead Angle 45° 20° Lead Angle 15° ' Lead Angle 0°/2°" High Feed Cutter Multi- Function Ball-nose Radius BT50 M/C (Machine Power 30kw) j= 3.0 E 0.10 0.15 fz (mm/t) Cutting Conditions : Vc = 2,500 m/min, ae = 55 mm, Wet, Cutter Dia. 80 MFAH080RS-10T-SF ENET0905PAER-G KPD001 Workpiece Material Обрабатываемый материал :ADC12 1.0 0 Slot Mill Max. Revolution and Max. Cutting Speed for Each Cutting Diameter Cutting Dia. Zmm) Max. Revolution n Zmin-1) Cutting Speed Vc max (m/min) 50 19,200 3,016 63 16,800 3,325 4>80 14,600 3,669 100 13,000 4,084 125 11,400 4,477 160 8,000 4,021 200 5,600 3,519 250 4,500 3,534 315 3,500 3,464 M206 : Std. Item
