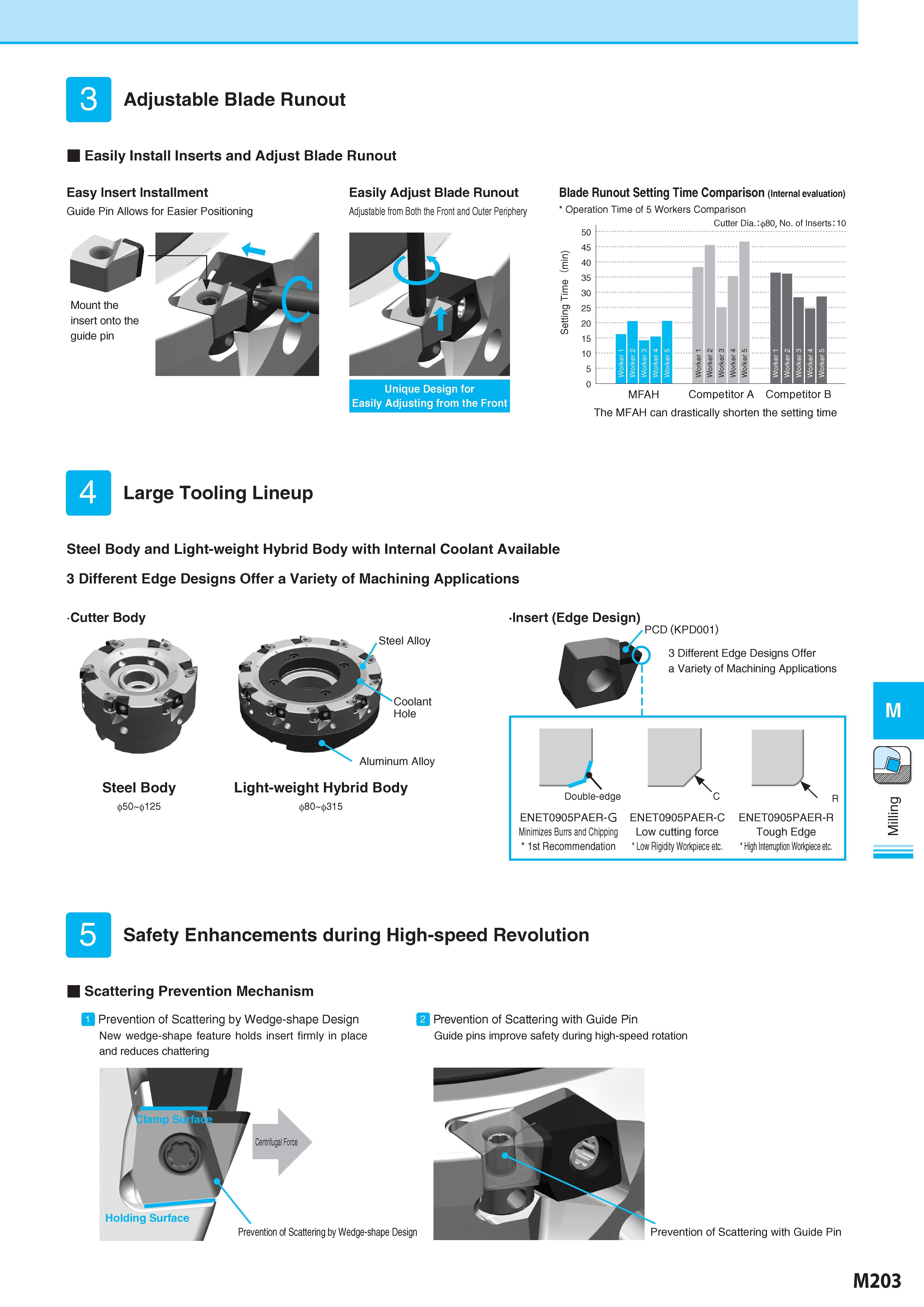

3 Adjustable Blade Runout Easily Install Inserts and Adjust Blade Runout Easy Insert Installment Guide Pin Allows for Easier Positioning Mount the insert onto the guide pin Easily Adjust Blade Runout Adjustable from Both the Front and Outer Periphery Unique Design for Easily Adjusting from the Front Blade Runout Setting Time Comparison (Internal evaluation) Operation Time of 5 Workers Comparison Cutter Dia.: ( 80, No. of Inserts: 10 50 c j= 45 40 CD E i- 35 30 cn c CD cn 25 20 15 10 5 0 MFAH Competitor A Competitor B The MFAH can drastically shorten the setting time 4 Large Tooling Lineup Steel Body and Light-weight Hybrid Body with Internal Coolant Available 3 Different Edge Designs Offer a Variety of Machining Applications Cutter Body Steel Body 50- 125 Steel Alloy k Coolant Hole Aluminum Alloy Light-weight Hybrid Body 80- 315 Insert (Edge Design) PCD (KPD001) 3 Different Edge Designs Offer a Variety of Machining Applications Safety Enhancements during High-speed Revolution Scattering Prevention Mechanism 1 Prevention of Scattering by Wedge-shape Design New wedge-shape feature holds insert firmly in place and reduces chattering Holding Surface Prevention of Scattering with Guide Pin Guide pins improve safety during high-speed rotation Prevention of Scattering by Wedge-shape Design of Scattering with Guide Pin M c M203
