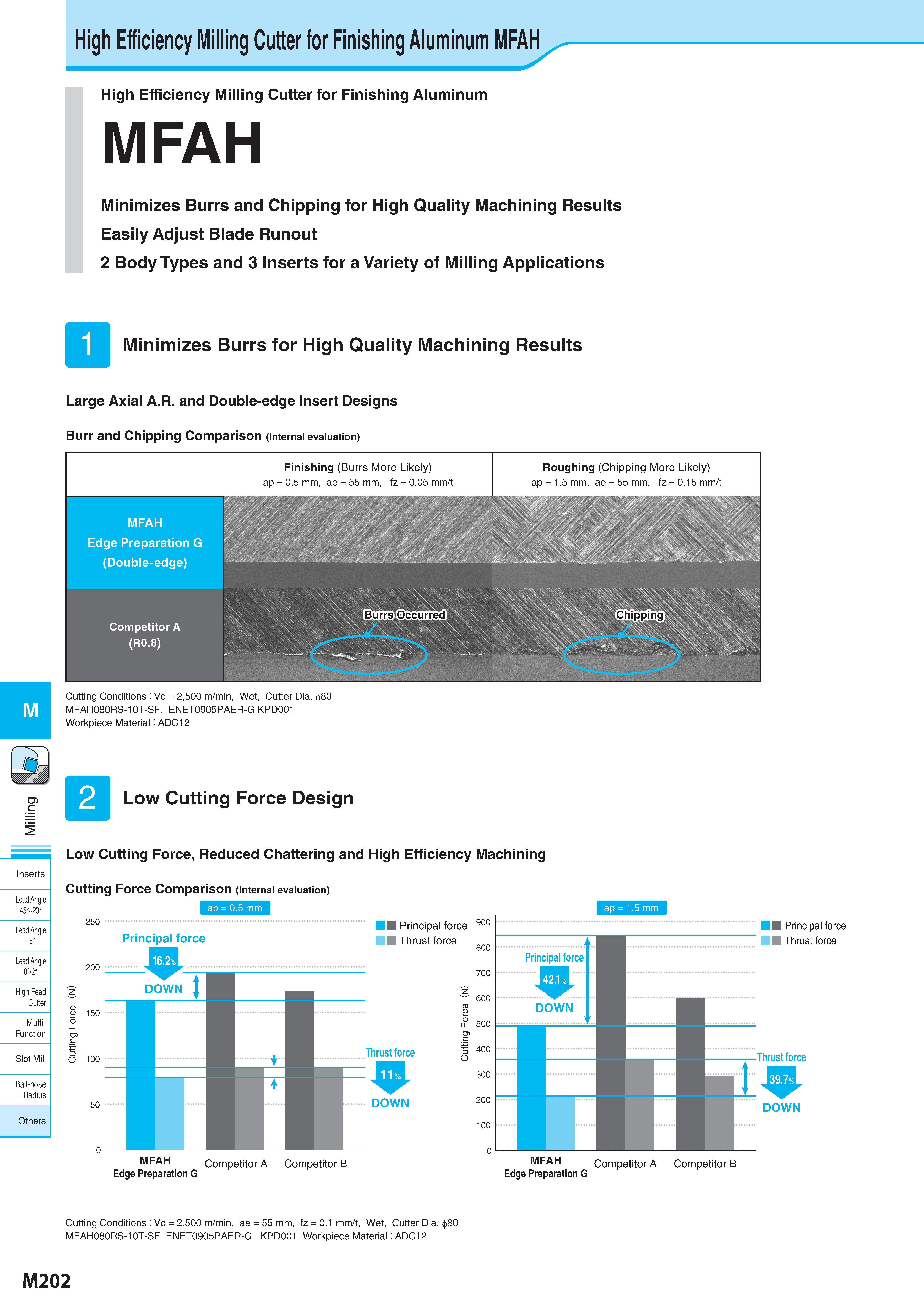

High Efficiency Milling Cutter for Finishing Aluminum MFAH M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others High Efficiency Milling Cutter for Finishing Aluminum MFAH Minimizes Burrs and Chipping for High Quality Machining Results Easily Adjust Blade Runout 2 Body Types and 3 Inserts for a Variety of Milling Applications Minimizes Burrs for High Quality Machining Results Large Axial A.R. and Double-edge Insert Designs Burr and Chipping Comparison (Internal evaluation) Finishing (Burrs More Likely) ap = 0.5 mm, ae = 55 mm, fz = 0.05 mm/t Roughing (Chipping More Likely) ap = 1.5 mm, ae = 55 mm, fz = 0.15 mm/t Edge Preparation G (Double-edge) Competitor A mn a\ Cutting Conditions : Vc = 2,500 m/min, Wet, Cutter Dia. 80 MFAH080RS-10T-SF, ENET0905PAER-G KPD001 Workpiece Material: ADC12 Low Cutting Force Design Low Cutting Force, Reduced Chattering and High Efficiency Machining Cutting Force Comparison (Internal evaluation) 250 o 150 O 100 50 ap = 0.5 mm ap = 1.5 mm Principal force 900 Thrust force MFAH Competitor A Competitor B Edge Preparation G Principal force Thrust force DOWN MFAH Competitor A Competitor B Edge Preparation G Cutting Conditions : Vc = 2,500 m/min, ae = 55 mm, fz = 0.1 mm/t, Wet, Cutter Dia. ( MFAH080RS-10T-SF ENET0905PAER-G KPD001 Workpiece Material: ADC12 200 0 M202
