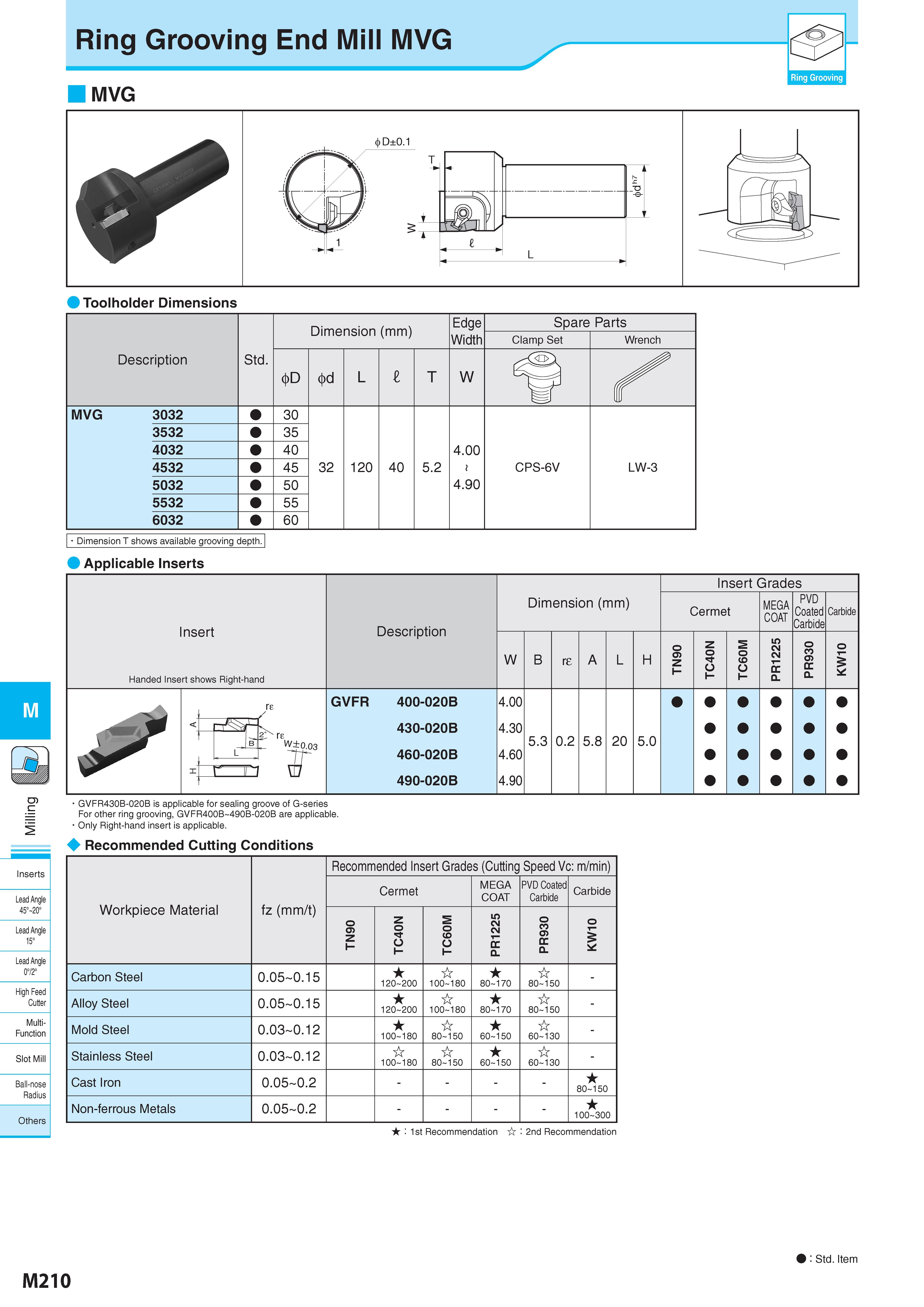

960 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M210

Каталог KYOCERA 2017 Инструмент режущий Стр. M210 0960 Lab2u

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Ring Grooving End Mill MVG MVG Toolholder Dimensions Applicable Inserts Insert Handed Insert shows Right-hand Description Обозначение Dimension (mm) Размеры в мм Insert Grades Cermet MEGA COAT PVD Coated Carbide Carbide W B re A L H TN90 TC40N TC60M PR1225 PR930 KW10 re JlL rew±0.03 GVFR 400-020B 430-020B 460-020B 490-020B 4.00 4.30 4.60 4.90 5.3 0.2 5.8 20 5.0 L \ fj- GVFR430B-020B is applicable for sealing groove of G-series For other ring grooving, GVFR400B 490B-020B are applicable. Only Right-hand insert is applicable. Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet MEGA COAT PVD Coated Carbide Carbide TN90 TC40N TC60M PR1225 PR930 KW10 Carbon Steel 0.05 0.15 120 200 100 180 80 170 80 150 - Alloy Steel 0.05 0.15 120 200 100 180 80 170 80 150 - Mold Steel 0.03 0.12 100 180 80 150 60 150 60 130 - Stainless Steel 0.03 0.12 100 180 80 150 60 150 60 130 - Cast Iron 0.05 0.2 80 150 Non-ferrous Metals 0.05 0.2 100 300 :1st Recommendation : 2nd Recommendation M210 : Std. Item
