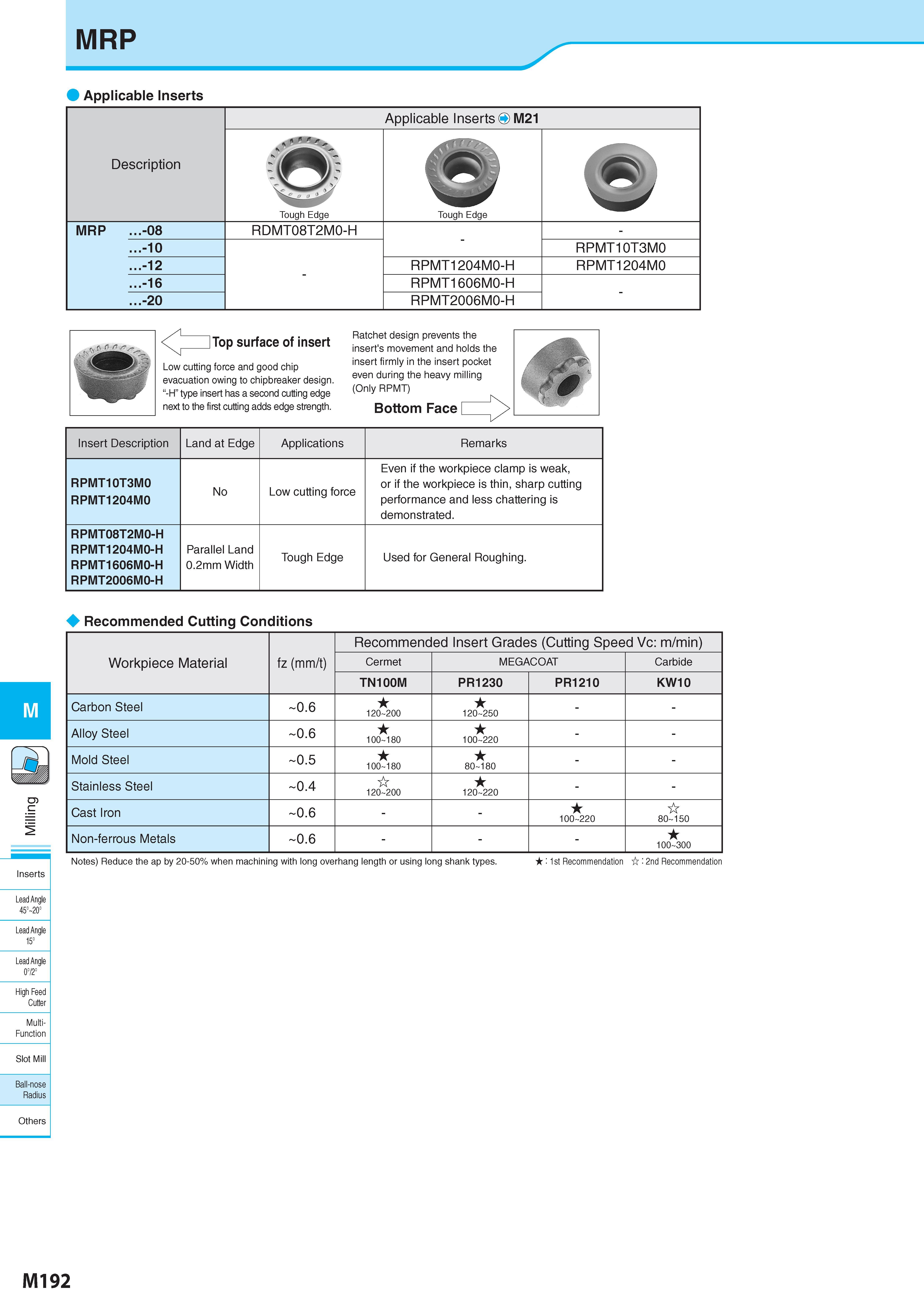

MRP Applicable Inserts Description Обозначение Applicable Inserts 4 M21 w Tough Edge Tough Edge 3 MRP ...-08 RDMT08T2M0-H ...-10 - RPMT10T3M0 ...-12 RPMT1204M0-H RPMT1204M0 .-16 RPMT1606M0-H - .-20 RPMT2006M0-H I Top surface of insert Low cutting force and good chip evacuation owing to chipbreaker design. “-H” type insert has a second cutting edge next to the first cutting adds edge strength. Ratchet design prevents the insert's movement and holds the insert firmly in the insert pocket even during the heavy milling (Only RPMT) Bottom Face d Insert Description Обозначение Land at Edge Applications Remarks Примечания RPMT10T3M0 RPMT1204M0 No Low cutting force Even if the workpiece clamp is weak, or if the workpiece is thin, sharp cutting performance and less chattering is demonstrated. RPMT08T2M0-H RPMT1204M0-H RPMT1606M0-H RPMT2006M0-H Parallel Land 0.2mm Width Tough Edge Used for General Roughing. Recommended Cutting Conditions Рекомендованные режимы резания на станках Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Workpiece Material Обрабатываемый материал fz (mm/t) Cermet MEGACOAT Carbide TN100M PR1230 PR1210 KW10 Carbon Steel 0.6 120 200 120 250 Alloy Steel 0.6 100 180 100 220 Mold Steel 0.5 100 180 80 180 Stainless Steel 0.4 120 200 120 220 Cast Iron 0.6 100 220 80 150 Non-ferrous Metals 0.6 - 100 300 Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Notes) Reduce the ap by 20-50% when machining with long overhang length or using long shank types. : 1st Recommendation : 2nd Recommendation M192
