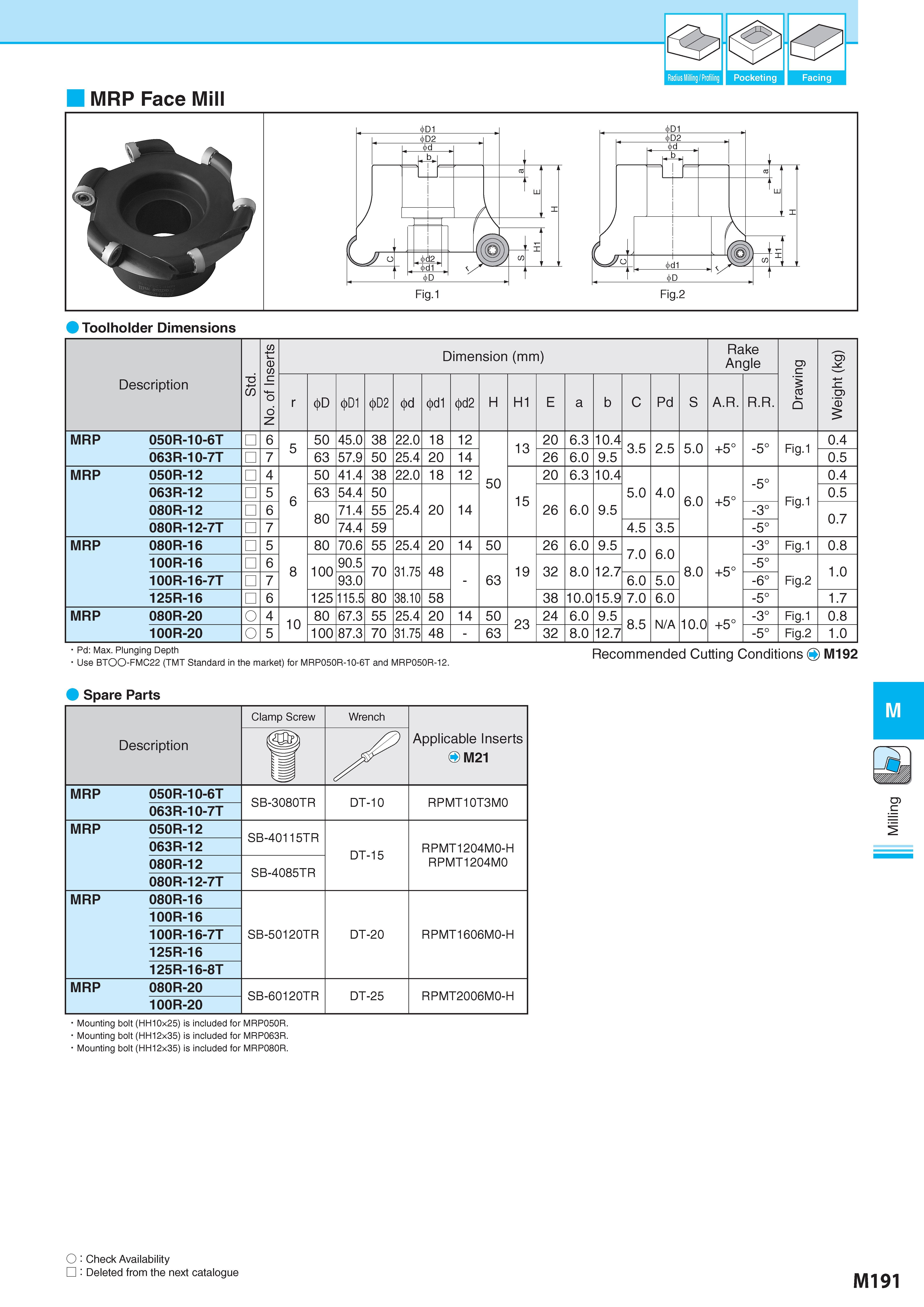

Radius Milling / Profiling Pocketing Facing MRP Face Mill Toolholder Dimensions Description Обозначение "O 00 No. of Inserts Dimension (mm) Размеры в мм Rake Angle Drawing Weight (kg) Вес инструмента в кг (kg) r D D1 D2 d d1 d2 H H1 E a b C Pd S A.R. R.R. MRP 050R-10-6T 6 5 50 45.0 38 22.0 18 12 50 13 20 6.3 10.4 3.5 2.5 5.0 +5° -5° Fig.1 0.4 063R-10-7T 7 63 57.9 50 25.4 20 14 26 6.0 9.5 0.5 MRP 050R-12 4 6 50 41.4 38 22.0 18 12 15 20 6.3 10.4 5.0 4.0 6.0 + cn o -5° Fig.1 0.4 063R-12 5 63 54.4 50 25.4 20 14 26 6.0 9.5 0.5 080R-12 6 80 71.4 55 -3° 0.7 080R-12-7T 7 74.4 59 4.5 3.5 -5° MRP 080R-16 5 8 80 70.6 55 25.4 20 14 50 19 26 6.0 9.5 7.0 6.0 8.0 + cn o -3° Fig.1 0.8 100R-16 6 100 90.5 70 31.75 48 - 63 32 8.0 12.7 -5° Fig.2 1.0 100R-16-7T 7 93.0 6.0 5.0 -6° 125R-16 6 125 115.5 80 38.10 58 38 10.0 15.9 7.0 6.0 -5° 1.7 MRP 080R-20 O 4 10 80 67.3 55 25.4 20 14 50 23 24 6.0 9.5 8.5 N/A 10.0 + cn o -3° Fig.1 0.8 100R-20 O 5 100 87.3 70 31.75 48 - 63 32 8.0 12.7 -5° Fig.2 1.0 Pd: Max. Plunging Depth Use BTOO-FMC22 (TMT Standard in the market) for MRP050R-10-6T and MRP050R-12. Recommended Cutting Conditions Рекомендованные режимы резания на станках O M192 Spare Parts Mounting bolt (HH10x25) is included for MRP050R. Mounting bolt (HH12x35) is included for MRP063R. Mounting bolt (HH12x35) is included for MRP080R. O : Check Availability : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге M191 S Milling
