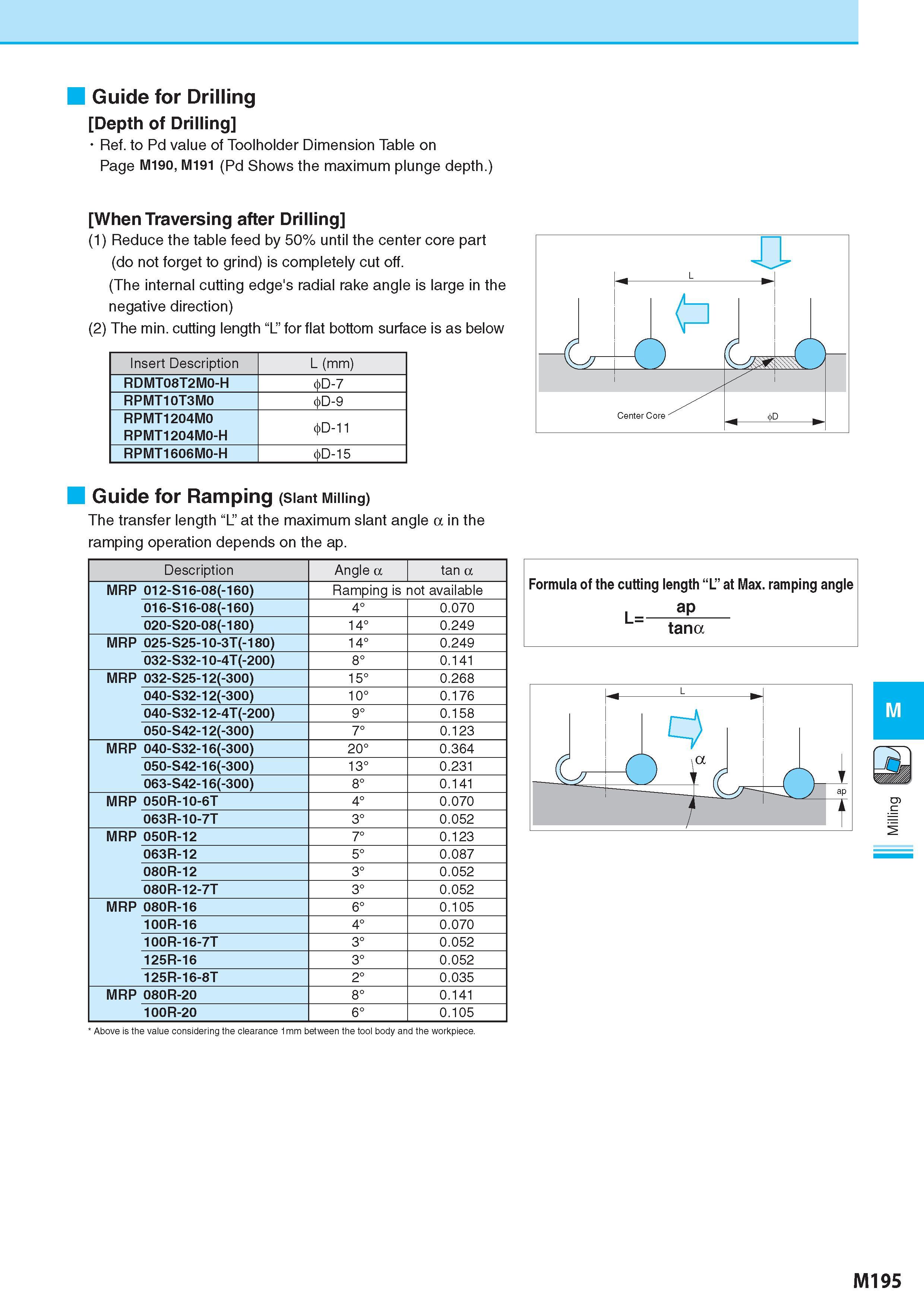

Guide for Drilling Depth of Drilling Ref. to Pd value of Toolholder Dimension Table on Page M190, M191 (Pd Shows the maximum plunge depth.) When Traversing after Drilling (1) Reduce the table feed by 50% until the center core part (do not forget to grind) is completely cut off. (The internal cutting edge's radial rake angle is large in the negative direction) (2) The min. cutting length “L” for flat bottom surface is as below Insert Description Обозначение L (mm) RDMT08T2M0-H D-7 RPMT10T3M0 D-9 RPMT1204M0 RPMT1204M0-H D-11 RPMT1606M0-H D-15 Guide for Ramping (Slant Milling) The transfer length “L” at the maximum slant angle a in the ramping operation depends on the ap. Description Обозначение Angle a tan a MRP 012-S16-08(-160) Ramping is not available 016-S16-08(-160) 4° 0.070 020-S20-08(-180) 14° 0.249 MRP 025-S25-10-3T(-180) 14° 0.249 032-S32-10-4T(-200) 8° 0.141 MRP 032-S25-12(-300) 15° 0.268 040-S32-12(-300) 10° 0.176 040-S32-12-4T(-200) 9° 0.158 050-S42-12(-300) 7° 0.123 MRP 040-S32-16(-300) 20° 0.364 050-S42-16(-300) 13° 0.231 063-S42-16(-300) 8° 0.141 MRP 050R-10-6T 4° 0.070 063R-10-7T 3° 0.052 MRP 050R-12 7° 0.123 063R-12 5° 0.087 080R-12 3° 0.052 080R-12-7T 3° 0.052 MRP 080R-16 6° 0.105 100R-16 4° 0.070 100R-16-7T 3° 0.052 125R-16 3° 0.052 125R-16-8T 2° 0.035 MRP 080R-20 8° 0.141 100R-20 6° 0.105 Formula of the cutting length “L” at Max. ramping angle L= ap tana Above is the value considering the clearance 1mm between the tool body and the workpiece. M195 Milling
