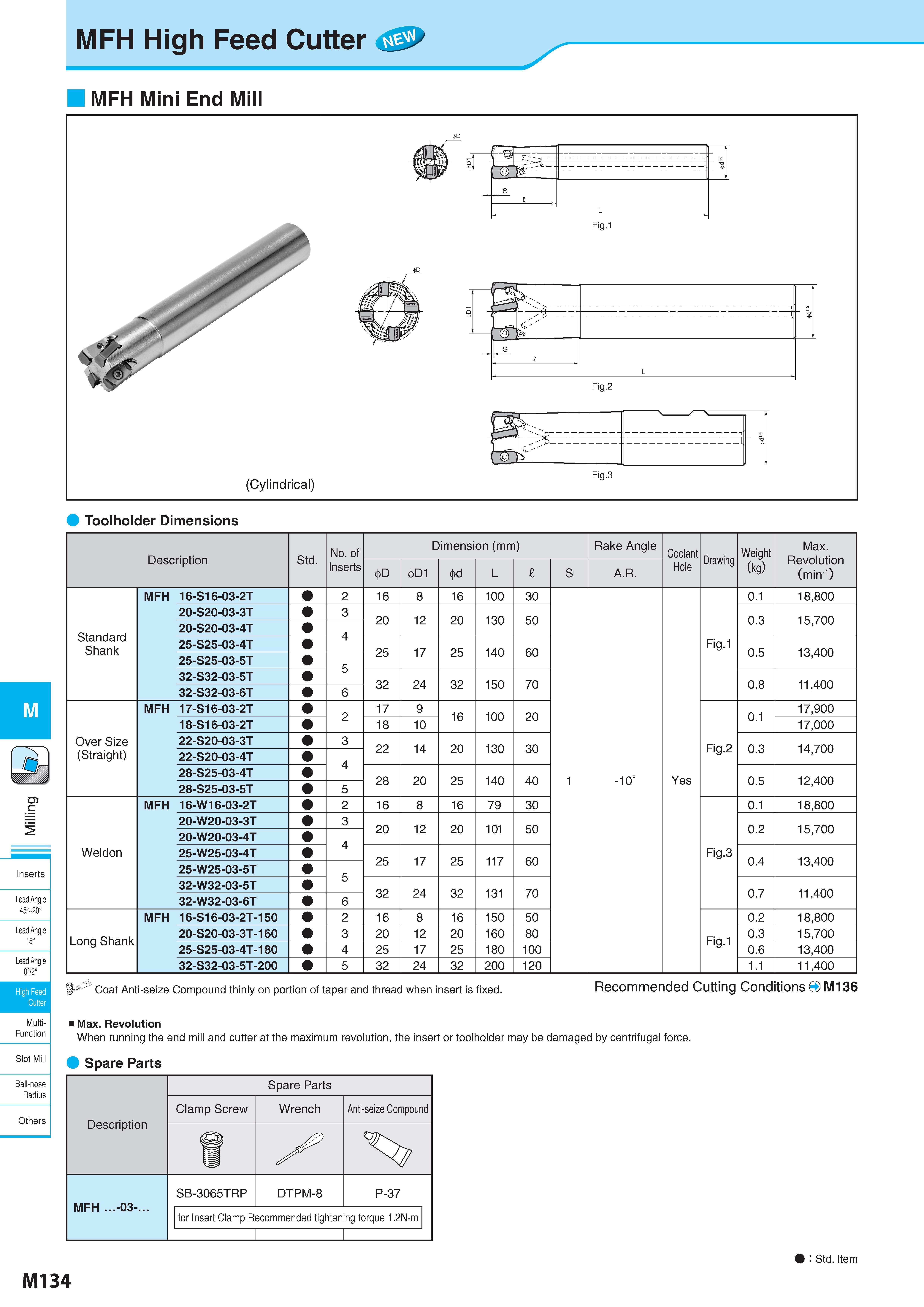

MFH High Feed Cutter M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MFH Mini End Mill Toolholder Dimensions Std. No. of Dimension (mm) Размеры в мм Rake Angle Coolant Drawing Weight (kg) Вес инструмента в кг Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) Description Обозначение Inserts 4>D 0D1 d L I S A.R. Hole (kg) MFH 16-S16-03-2T 2 16 8 16 100 30 0.1 18,800 20-S20-03-3T 3 20 12 20 130 50 0.3 15,700 Standard Shank 20-S20-03-4T 4 25-S25-03-4T 25 17 25 140 60 Fig.1 0.5 13,400 25-S25-03-5T 5 32-S32-03-5T 32 24 32 150 70 0.8 11,400 32-S32-03-6T 6 MFH 17-S16-03-2T 2 17 9 16 100 20 0.1 17,900 18-S16-03-2T 18 10 17,000 Over Size 22-S20-03-3T 3 22 14 20 130 30 Fig.2 0.3 14,700 (Straight) 22-S20-03-4T 4 28-S25-03-4T 28 20 25 140 40 1 -10° Yes 0.5 12,400 28-S25-03-5T 5 MFH 16-W16-03-2T 2 16 8 16 79 30 0.1 18,800 20-W20-03-3T 3 20 12 20 101 50 0.2 15,700 20-W20-03-4T 4 Weldon 25-W25-03-4T 25 17 25 117 60 Fig.3 0.4 13,400 25-W25-03-5T 5 32-W32-03-5T 32 24 32 131 70 0.7 11,400 32-W32-03-6T 6 MFH 16-S16-03-2T-150 2 16 8 16 150 50 0.2 18,800 Long Shank 20-S20-03-3T-160 3 20 12 20 160 80 Fig.1 0.3 15,700 25-S25-03-4T-180 4 25 17 25 180 100 0.6 13,400 32-S32-03-5T-200 5 32 24 32 200 120 1.1 11,400 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions Рекомендованные режимы резания на станках O M136 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts Description Обозначение Spare Parts Clamp Screw Wrench Anti-seize Compound u V MFH ...-03-... SB-3065TRP DTPM-8 P-37 for Insert Clamp Recommended tightening torque 1.2N-m i i : Std. Item Стандартная позиция M134
