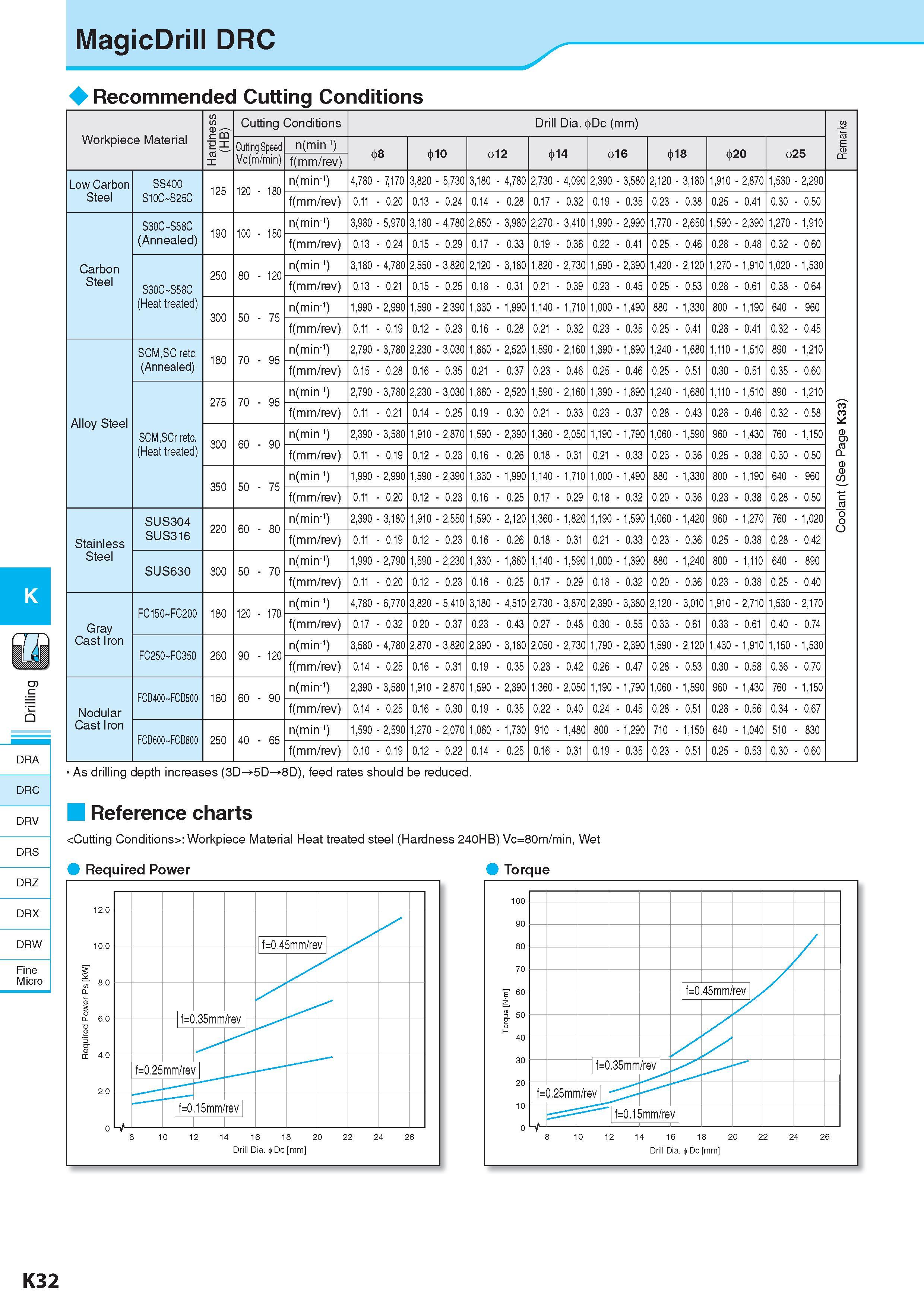

MagicDrill DRC Recommended Cutting Conditions Рекомендованные режимы резания на станках DRA Workpiece Material Обрабатываемый материал Hardness (HB) Cutting Conditions Drill Dia. Dc (mm) Remarks Примечания Cutting Speed Vc(m/min) n(min-1) f(mm/rev) 8 4>10 12 f14 4>16 4>18 4>20 25 Low Carbon Steel SS400 S10C S25C 125 120 - 180 n(min-1) 4,780 - 7170 3,820 - 5,730 3,180 - 4,780 2,730 - 4,090 2,390 - 3,580 2,120 - 3,180 1,910 - 2,870 1,530 - 2,290 Coolant (See Page K33) f(mm/rev) 0.11 - 0.20 0.13 - 0.24 0.14 - 0.28 0.17 - 0.32 0.19 - 0.35 0.23 - 0.38 0.25 - 0.41 0.30 - 0.50 Carbon Steel S30C S58C (Annealed) 190 100 - 150 n(min-1) 3,980 - 5,970 3,180 - 4,780 2,650 - 3,980 2,270 - 3,410 1,990 - 2,990 1,770 - 2,650 1,590 - 2,390 1,270 - 1,910 f(mm/rev) 0.13 - 0.24 0.15 - 0.29 0.17 - 0.33 0.19 - 0.36 0.22 - 0.41 0.25 - 0.46 0.28 - 0.48 0.32 - 0.60 S30C S58C (Heat treated) 250 80 - 120 n(min-1) 3,180 - 4,780 2,550 - 3,820 2,120 - 3,180 1,820 - 2,730 1,590 - 2,390 1,420 - 2,120 1,270 - 1,910 1,020 - 1,530 f(mm/rev) 0.13 - 0.21 0.15 - 0.25 0.18 - 0.31 0.21 - 0.39 0.23 - 0.45 0.25 - 0.53 0.28 - 0.61 0.38 - 0.64 300 50 - 75 n(min-1) 1,990 - 2,990 1,590 - 2,390 1,330 - 1,990 1,140 - 1,710 1,000 - 1,490 880 - 1,330 800 - 1,190 640 - 960 f(mm/rev) 0.11 - 0.19 0.12 - 0.23 0.16 - 0.28 0.21 - 0.32 0.23 - 0.35 0.25 - 0.41 0.28 - 0.41 0.32 - 0.45 Alloy Steel SCM,SC retc. (Annealed) 180 70 - 95 n(min-1) 2,790 - 3,780 2,230 - 3,030 1,860 - 2,520 1,590 - 2,160 1,390 - 1,890 1,240 - 1,680 1,110 - 1,510 890 - 1,210 f(mm/rev) 0.15 - 0.28 0.16 - 0.35 0.21 - 0.37 0.23 - 0.46 0.25 - 0.46 0.25 - 0.51 0.30 - 0.51 0.35 - 0.60 SCM,SCr retc. (Heat treated) 275 70 - 95 n(min-1) 2,790 - 3,780 2,230 - 3,030 1,860 - 2,520 1,590 - 2,160 1,390 - 1,890 1,240 - 1,680 1,110 - 1,510 890 - 1,210 f(mm/rev) 0.11 - 0.21 0.14 - 0.25 0.19 - 0.30 0.21 - 0.33 0.23 - 0.37 0.28 - 0.43 0.28 - 0.46 0.32 - 0.58 300 60 - 90 n(min-1) 2,390 - 3,580 1,910 - 2,870 1,590 - 2,390 1,360 - 2,050 1,190 - 1,790 1,060 - 1,590 960 - 1,430 760 - 1,150 f(mm/rev) 0.11 - 0.19 0.12 - 0.23 0.16 - 0.26 0.18 - 0.31 0.21 - 0.33 0.23 - 0.36 0.25 - 0.38 0.30 - 0.50 350 50 - 75 n(min-1) 1,990 - 2,990 1,590 - 2,390 1,330 - 1,990 1,140 - 1,710 1,000 - 1,490 880 - 1,330 800 - 1,190 640 - 960 f(mm/rev) 0.11 - 0.20 0.12 - 0.23 0.16 - 0.25 0.17 - 0.29 0.18 - 0.32 0.20 - 0.36 0.23 - 0.38 0.28 - 0.50 Stainless Steel SUS304 SUS316 220 60 - 80 n(min-1) 2,390 - 3,180 1,910 - 2,550 1,590 - 2,120 1,360 - 1,820 1,190 - 1,590 1,060 - 1,420 960 - 1,270 760 - 1,020 f(mm/rev) 0.11 - 0.19 0.12 - 0.23 0.16 - 0.26 0.18 - 0.31 0.21 - 0.33 0.23 - 0.36 0.25 - 0.38 0.28 - 0.42 SUS630 300 50 - 70 n(min-1) 1,990 - 2,790 1,590 - 2,230 1,330 - 1,860 1,140 - 1,590 1,000 - 1,390 880 - 1,240 800 - 1,110 640 - 890 f(mm/rev) 0.11 - 0.20 0.12 - 0.23 0.16 - 0.25 0.17 - 0.29 0.18 - 0.32 0.20 - 0.36 0.23 - 0.38 0.25 - 0.40 Gray Cast Iron FC150 FC200 180 120 - 170 n(min-1) 4,780 - 6,770 3,820 - 5,410 3,180 - 4,510 2,730 - 3,870 2,390 - 3,380 2,120 - 3,010 1,910 - 2,710 1,530 - 2,170 f(mm/rev) 0.17 - 0.32 0.20 - 0.37 0.23 - 0.43 0.27 - 0.48 0.30 - 0.55 0.33 - 0.61 0.33 - 0.61 0.40 - 0.74 FC250 FC350 260 90 - 120 n(min-1) 3,580 - 4,780 2,870 - 3,820 2,390 - 3,180 2,050 - 2,730 1,790 - 2,390 1,590 - 2,120 1,430 - 1,910 1,150 - 1,530 f(mm/rev) 0.14 - 0.25 0.16 - 0.31 0.19 - 0.35 0.23 - 0.42 0.26 - 0.47 0.28 - 0.53 0.30 - 0.58 0.36 - 0.70 Nodular Cast Iron FCD400 FCD500 160 60 - 90 n(min-1) 2,390 - 3,580 1,910 - 2,870 1,590 - 2,390 1,360 - 2,050 1,190 - 1,790 1,060 - 1,590 960 - 1,430 760 - 1,150 f(mm/rev) 0.14 - 0.25 0.16 - 0.30 0.19 - 0.35 0.22 - 0.40 0.24 - 0.45 0.28 - 0.51 0.28 - 0.56 0.34 - 0.67 FCD600 FCD800 250 40 - 65 n(min-1) 1,590 - 2,590 1,270 - 2,070 1,060 - 1,730 910 - 1,480 800 - 1,290 710 - 1,150 640 - 1,040 510 - 830 f(mm/rev) 0.10 - 0.19 0.12 - 0.22 0.14 - 0.25 0.16 - 0.31 0.19 - 0.35 0.23 - 0.51 0.25 - 0.53 0.30 - 0.60 DRC DRV DRS DRZ DRX DRW Fine Micro As drilling depth increases (3D 5D 8D), feed rates should be reduced. Reference charts : Workpiece Material Обрабатываемый материал Heat treated steel (Hardness 240HB) Vc=80m/min, Wet 0 Required Power 0 Torque K32
