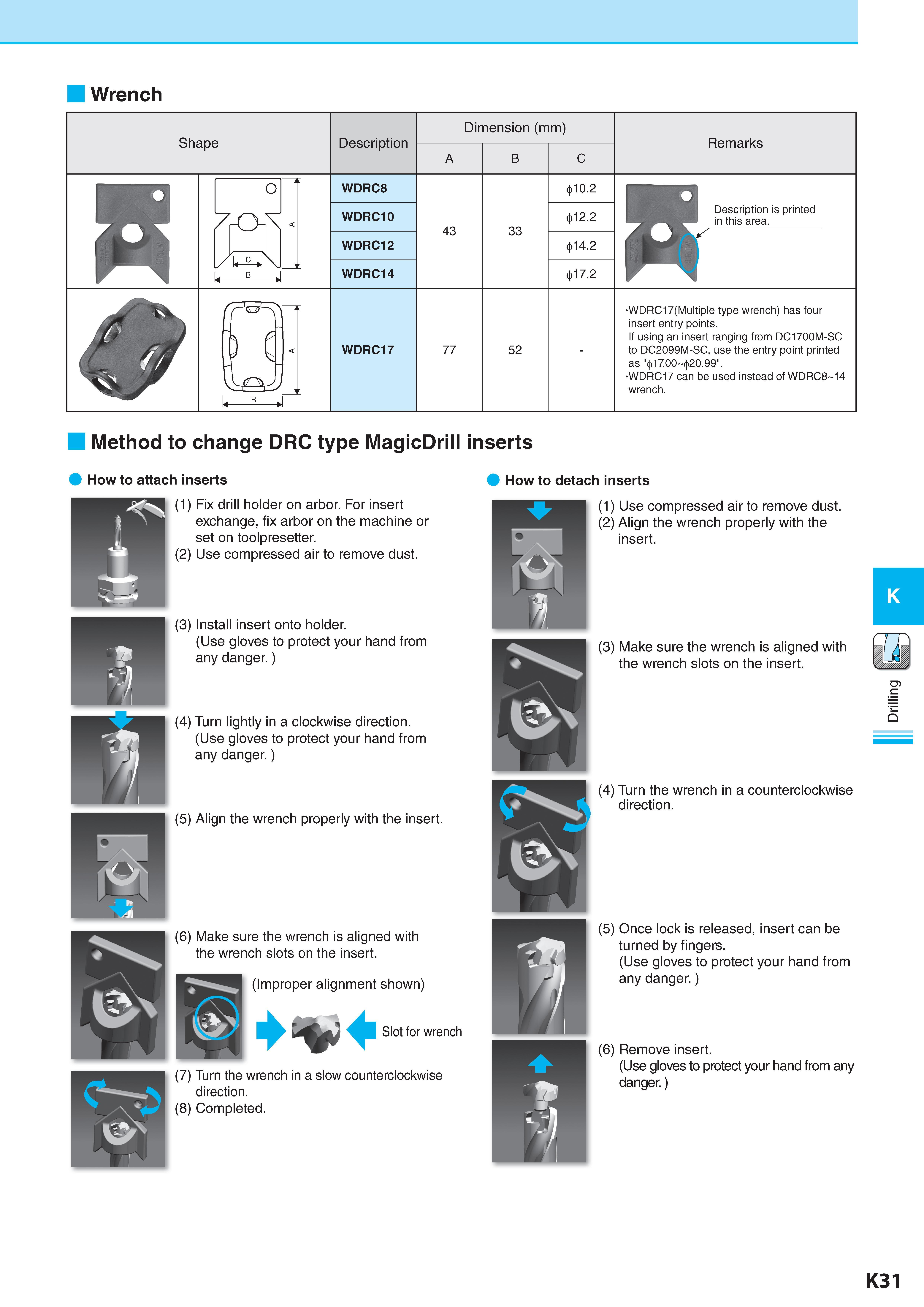

Wrench Shape Description Обозначение Dimension (mm) Размеры в мм B Remarks Примечания WDRC8 010.2 WDRC10 43 33 012.2 WDRC12 014.2 WDRC14 017.2 Description Обозначение is printed in this area. c VjoU WDRC17 77 52 WDRC17(Multiple type wrench) has four insert entry points. If using an insert ranging from DC1700M-SC to DC2099M-SC, use the entry point printed as "017.00 020.99". WDRC17 can be used instead of WDRC8 14 wrench. A C B Method to change DRC type MagicDrill inserts How to attach inserts How to detach inserts (1) Fix drill holder on arbor. For insert exchange, fix arbor on the machine or set on toolpresetter. (2) Use compressed air to remove dust. (3) Install insert onto holder. (Use gloves to protect your hand from any danger.) (4) Turn lightly in a clockwise direction. (Use gloves to protect your hand from any danger.) (5) Align the wrench properly with the insert. (1) Use compressed air to remove dust. (2) Align the wrench properly with the insert. (3) Make sure the wrench is aligned with the wrench slots on the insert. (4) Turn the wrench in a counterclockwise direction. n m kl (6) Make sure the wrench is aligned with the wrench slots on the insert. (Improper alignment shown) Slot for wrench (7) Turn the wrench in a slow counterclockwise direction. (8) Completed. (5) Once lock is released, insert can be turned by fingers. (Use gloves to protect your hand from any danger.) (6) Remove insert. (Use gloves to protect your hand from any danger.) K31
