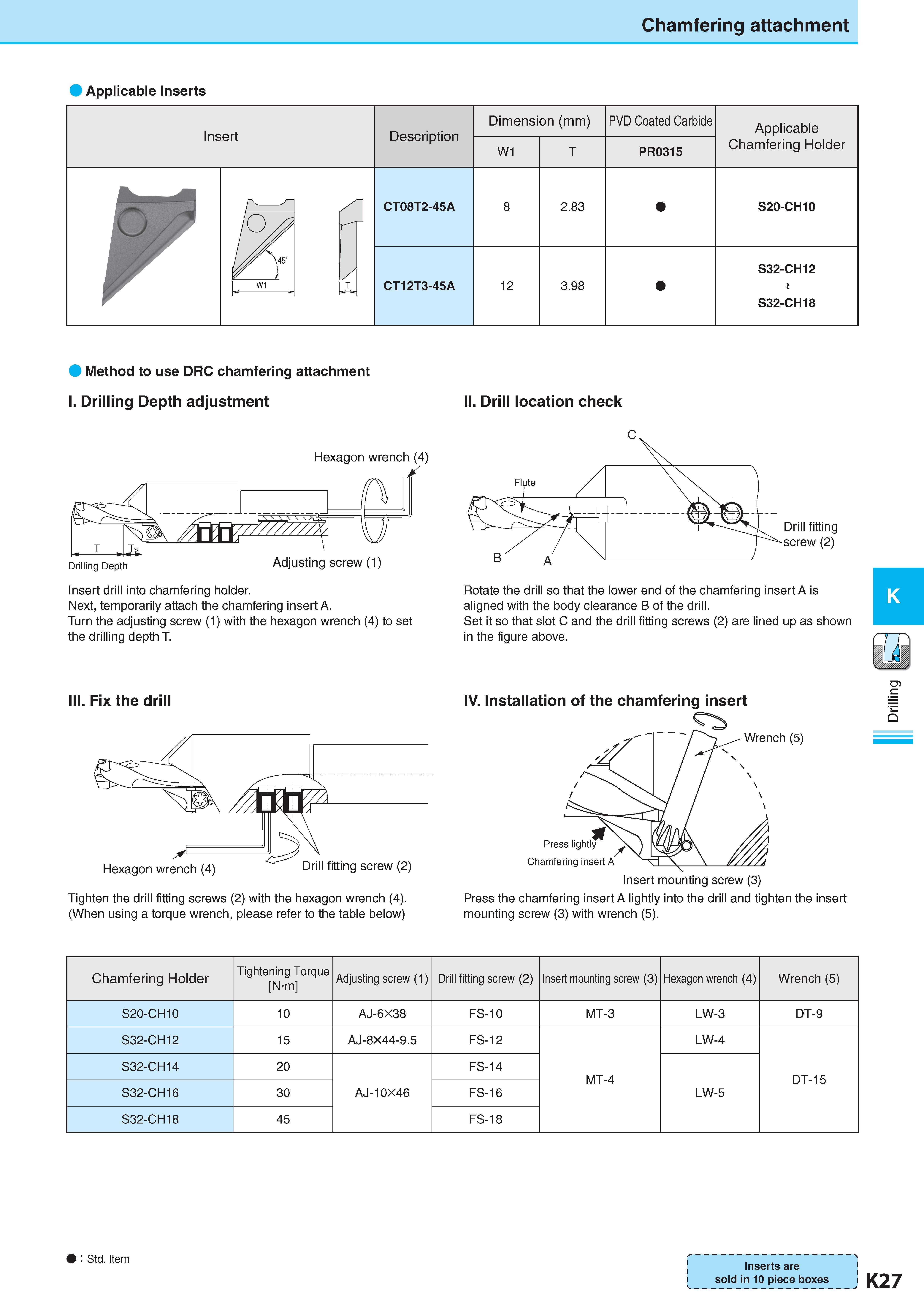

Chamfering attachment Applicable Inserts Insert Description Обозначение Dimension (mm) Размеры в мм PVD Coated Carbide Applicable Chamfering Holder W1 T PR0315 r W1 CT08T2-45A 8 2.83 S20-CH10 CT12T3-45A 12 3.98 S32-CH12 X S32-CH18 Method to use DRC chamfering attachment I. Drilling Depth adjustment Hexagon wrench (4) y T Drilling Depth Adjusting screw (1) Insert drill into chamfering holder. Next, temporarily attach the chamfering insert A. Turn the adjusting screw (1) with the hexagon wrench (4) to set the drilling depth T. I. Fix the drill Tighten the drill fitting screws (2) with the hexagon wrench (4). (When using a torque wrench, please refer to the table below) II. Drill location check Rotate the drill so that the lower end of the chamfering insert A is aligned with the body clearance B of the drill. Set it so that slot C and the drill fitting screws (2) are lined up as shown in the figure above. IV. Installation of the chamfering insert Press the chamfering insert A lightly into the drill and tighten the insert mounting screw (3) with wrench (5). Ts Chamfering Holder Tightening Torque N-m Adjusting screw (1) Drill fitting screw (2) Insert mounting screw (3) Hexagon wrench (4) Wrench (5) S20-CH10 10 AJ-6X38 FS-10 MT-3 LW-3 DT-9 S32-CH12 15 AJ-8X44-9.5 FS-12 MT-4 LW-4 DT-15 S32-CH14 20 AJ-10X46 FS-14 LW-5 S32-CH16 30 FS-16 S32-CH18 45 FS-18 : Std. Item Стандартная позиция T . Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes j K27
