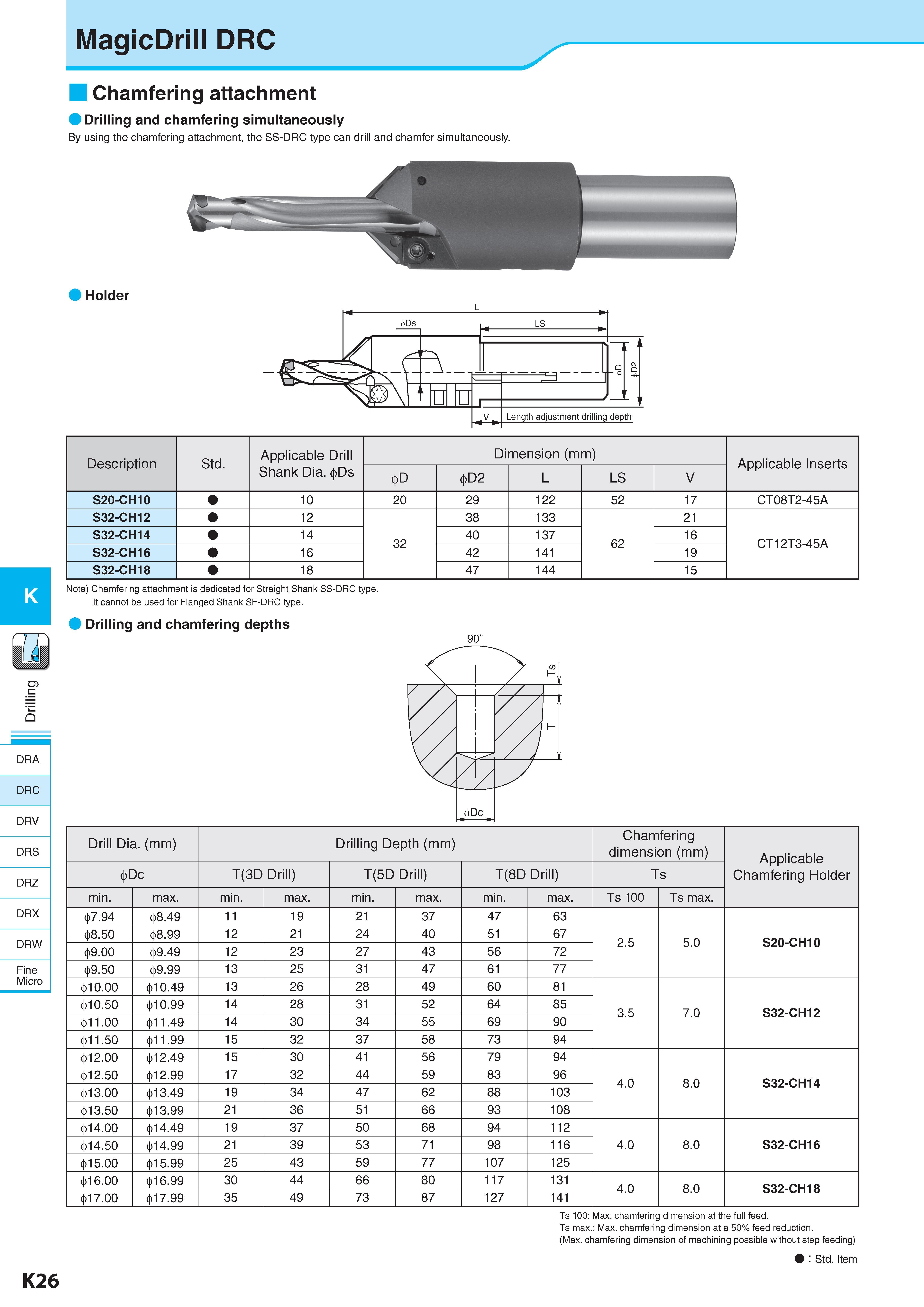

MagicDrill DRC K DRA DRC DRV DRS DRZ DRX DRW Fine Micro Chamfering attachment Drilling and chamfering simultaneously By using the chamfering attachment, the SS-DRC type can drill and chamfer simultaneously. Holder Description Обозначение Std. Applicable Drill Shank Dia. 0Ds Dimension (mm) Размеры в мм Applicable Inserts 0D 0D2 L LS V S20-CH10 10 20 29 122 52 17 CT08T2-45A S32-CH12 12 32 38 133 62 21 CT12T3-45A S32-CH14 14 40 137 16 S32-CH16 16 42 141 19 S32-CH18 18 47 144 15 Note) Chamfering attachment is dedicated for Straight Shank SS-DRC type. It cannot be used for Flanged Shank SF-DRC type. Drilling and chamfering depths \ 1 / i A / . 1 i Vi 1- DC Drill Dia. (mm) Drilling Depth (mm) Chamfering dimension (mm) Applicable Chamfering Holder 0Dc T(3D Drill) T(5D Drill) T(8D Drill) Ts min. max. min. max. min. max. min. max. Ts 100 Ts max. 07.94 08.49 11 19 21 37 47 63 2.5 5.0 S20-CH10 08.50 08.99 12 21 24 40 51 67 09.00 09.49 12 23 27 43 56 72 09.50 09.99 13 25 31 47 61 77 010.00 010.49 13 26 28 49 60 81 3.5 7.0 S32-CH12 010.50 010.99 14 28 31 52 64 85 011.00 011.49 14 30 34 55 69 90 011.50 011.99 15 32 37 58 73 94 012.00 012.49 15 30 41 56 79 94 4.0 8.0 S32-CH14 012.50 012.99 17 32 44 59 83 96 013.00 013.49 19 34 47 62 88 103 013.50 013.99 21 36 51 66 93 108 014.00 014.49 19 37 50 68 94 112 4.0 8.0 S32-CH16 014.50 014.99 21 39 53 71 98 116 015.00 015.99 25 43 59 77 107 125 016.00 016.99 30 44 66 80 117 131 4.0 8.0 S32-CH18 017.00 017.99 35 49 73 87 127 141 Ts 100: Max. chamfering dimension at the full feed. Ts max.: Max. chamfering dimension at a 50% feed reduction. (Max. chamfering dimension of machining possible without step feeding) : Std. Item Стандартная позиция K26
