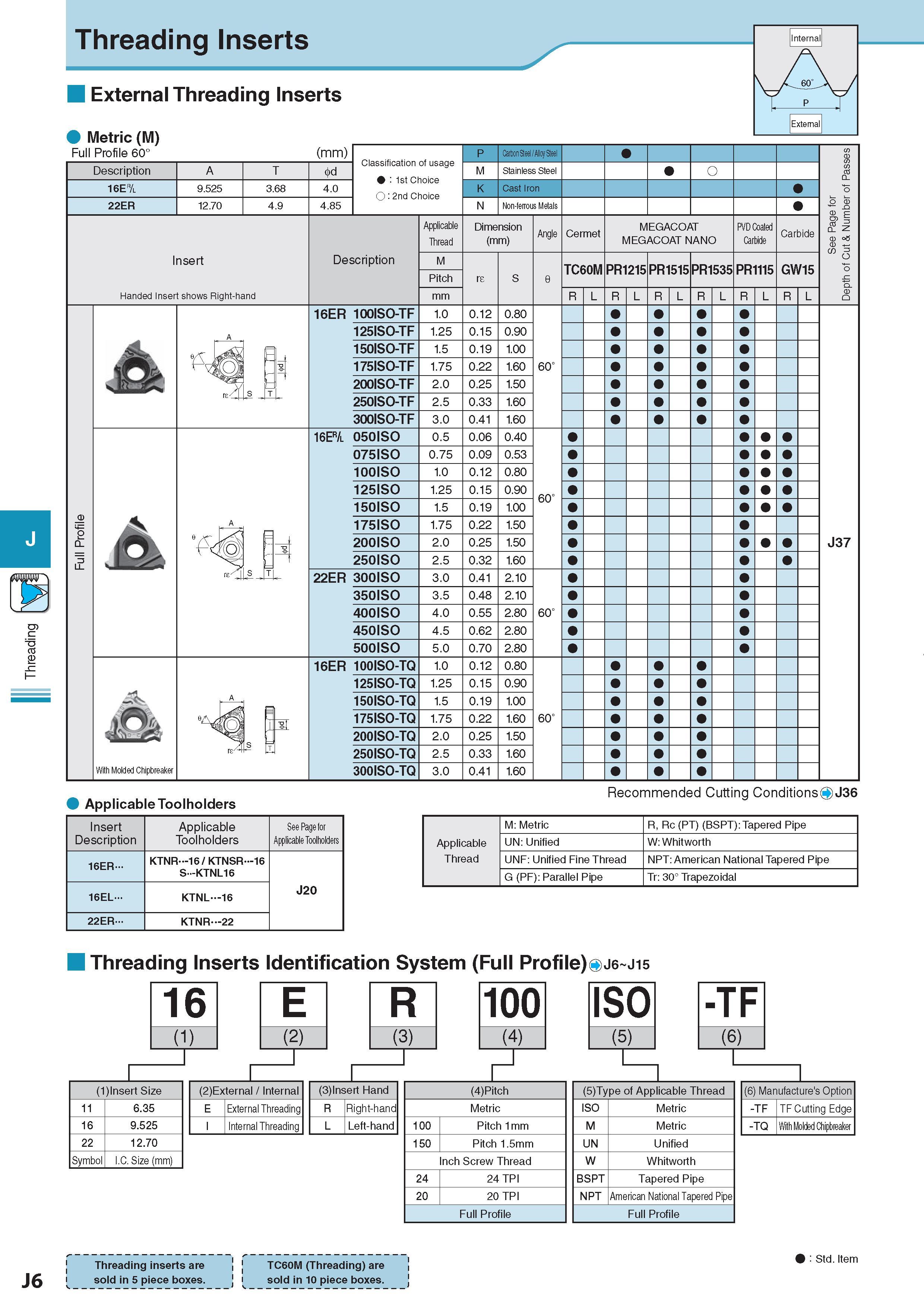

Threading Threading Inserts External Threading Inserts Metric (M) Full Profile 60° Description Обозначение 16E& 22ER 9.525 12.70 3.68 4.9 Insert Handed Insert shows Right-hand With Molded Chipbreaker Стружколом сменной пластины (mm) P Carbon Steel / Alloy Steel See Page for Depth of Cut & Number of Passes d : 1st Choice M Stainless Steel O 4.0 K Cast Iron 4.85 N Non-ferrous Metals Applicable Thread Dimension (mm) Размеры в мм Angle Cermet MEGACOAT MEGACOAT NANO PVD Coated Carbide Carbide Description Обозначение M TC60M PR1215 PR1515 PR1535 PR1115 GW15 Pitch re S 0 mm R L R L R L R L R L R L 16ER 100IS0-TF 1.0 0.12 0.80 125IS0-TF 1.25 0.15 0.90 150IS0-TF 1.5 0.19 1.00 175IS0-TF 1.75 0.22 1.60 60° 200IS0-TF 2.0 0.25 1.50 250IS0-TF 2.5 0.33 1.60 300IS0-TF 3.0 0.41 1.60 16Er/l 050IS0 0.5 0.06 0.40 075IS0 0.75 0.09 0.53 100IS0 1.0 0.12 0.80 125IS0 1.25 0.15 0.90 60° 150IS0 1.5 0.19 1.00 175IS0 1.75 0.22 1.50 200IS0 2.0 0.25 1.50 J37 250IS0 2.5 0.32 1.60 22ER 300IS0 3.0 0.41 2.10 350IS0 3.5 0.48 2.10 400IS0 4.0 0.55 2.80 60° 450IS0 4.5 0.62 2.80 500IS0 5.0 0.70 2.80 16ER 100IS0-TQ 1.0 0.12 0.80 125IS0-TQ 1.25 0.15 0.90 150IS0-TQ 1.5 0.19 1.00 175IS0-TQ 1.75 0.22 1.60 60° 200IS0-TQ 2.0 0.25 1.50 250IS0-TQ 2.5 0.33 1.60 300IS0-TQ 3.0 0.41 1.60 Applicable Toolholders Recommended Cutting Conditions Рекомендованные режимы резания на станкахO J36 Insert Description Обозначение Applicable Toolholders See Page for Applicable Toolholders 16ER- KTNR-16 / KTNSR-16 S-KTNL16 J20 16EL-. KTNL 16 22ER- KTNR 22 M: Metric R, Rc (PT) (BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Tr: 30° Trapezoidal Threading Inserts Identification System (Full Profile) J6 J15 16 E R 100 ISO -TF (i) (2) (3) (4) (5) (6) (1)Insert Size (2)External / Internal (3)Insert Hand (4)Pitch (5)Type of Applicable Thread (6) Manufacture's Option 11 6.35 E External Threading R Right-hand Metric ISO Metric -TF TF Cutting Edge 16 9.525 I Internal Threading L Left-hand 100 Pitch 1mm M Metric -TQ With Molded Chipbreaker Стружколом сменной пластины 22 12.70 150 Pitch 1.5mm UN Unifed Symbol I.C. Size (mm) Inch Screw Thread W Whitworth 24 20 24 TPI 20 TPI Full Profile BSPT Tapered Pipe NPT American National Tapered Pipe Full Profile Threading inserts are J6 i sold in 5 piece boxes. TC60M (Threading) are sold in 10 piece boxes. 9 : Std. Item Стандартная позиция A T A
