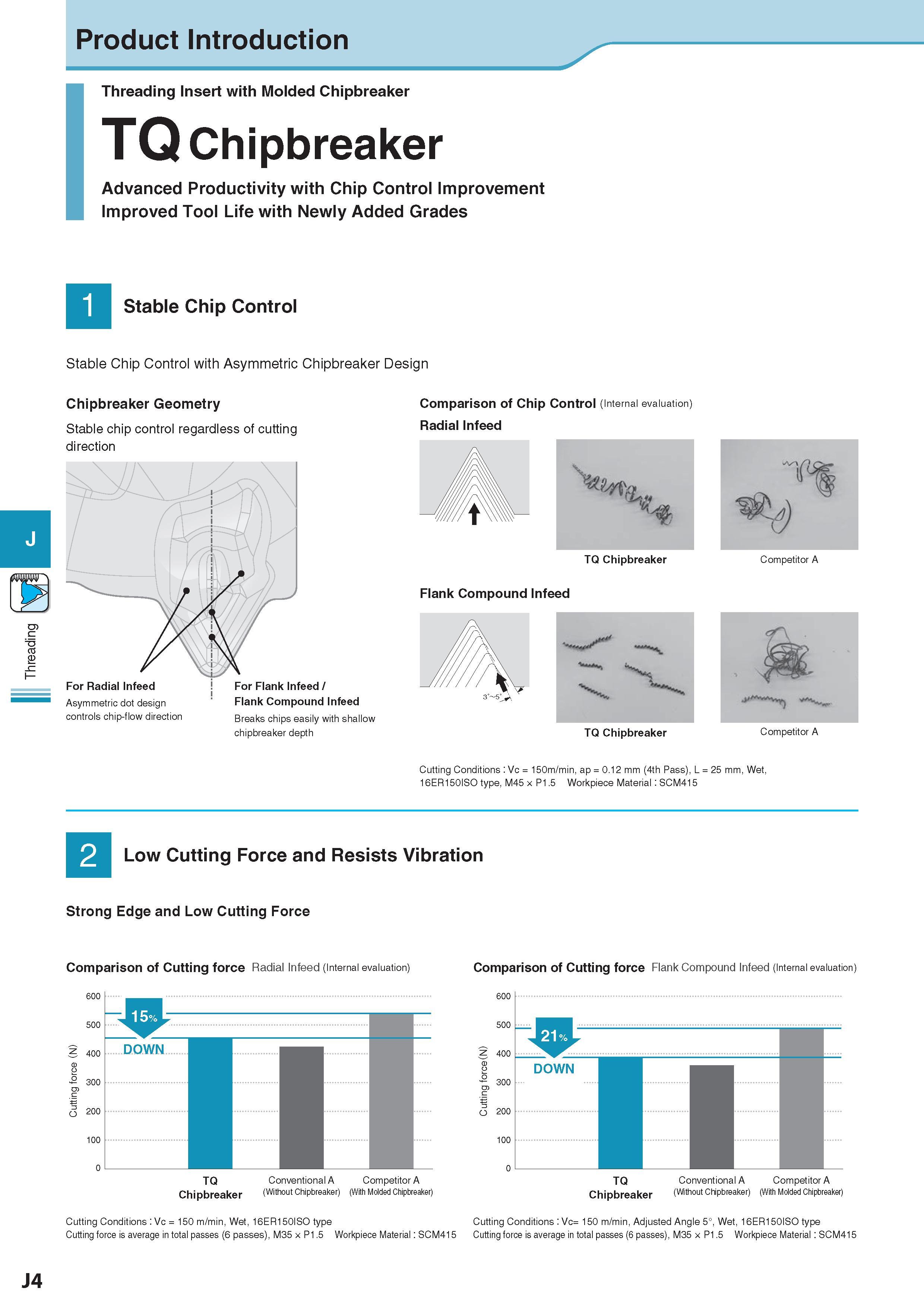

Threading Product Introduction Threading Insert with Molded Chipbreaker Стружколом сменной пластины TQ Chipbreaker Стружколом сменной пластины Advanced Productivity with Chip Control Improvement Improved Tool Life with Newly Added Grades Stable Chip Control Stable Chip Control with Asymmetric Chipbreaker Стружколом сменной пластины Design Chipbreaker Стружколом сменной пластины Geometry Stable chip control regardless of cutting direction For Radial Infeed Asymmetric dot design controls chip-flow direction For Flank Infeed / Flank Compound Infeed Breaks chips easily with shallow chipbreaker depth Comparison of Chip Control (Internal evaluation) Radial Infeed Flank Compound Infeed > /-VwVv'T) TQ Chipbreaker Стружколом сменной пластины Competitor A Cutting Conditions : Vc = 150m/min, ap = 0.12 mm (4th Pass), L = 25 mm, Wet, 16ER150ISO type, M45 x P1.5 Workpiece Material: SCM415 Low Cutting Force and Resists Vibration Strong Edge and Low Cutting Force Comparison of Cutting force Radial Infeed (Internal evaluation) Comparison of Cutting force Flank Compound Infeed (Internal evaluation) 400 d) O ° 300 TO O 200 100 TQ Conventional A Competitor A Chipbreaker Стружколом сменной пластины (Without Chipbreaker) (With Molded Chipbreaker) Z 400 0 1 300 TO c O 200 100 TQ Chipbreaker Стружколом сменной пластины Conventional A Competitor A (Without Chipbreaker) (With Molded Chipbreaker) Cutting Conditions : Vc = 150 m/min, Wet, 16ER150ISO type Cutting Conditions : Vc= 150 m/min, Adjusted Angle 5°, Wet, 16ER150ISO type Cutting force is average in total passes (6 passes), M35 x P1.5 Workpiece Material: SCM415 Cutting force is average in total passes (6 passes), M35 x P1.5 Workpiece Material: SCM415 600 600 500 500 0 0 J4
