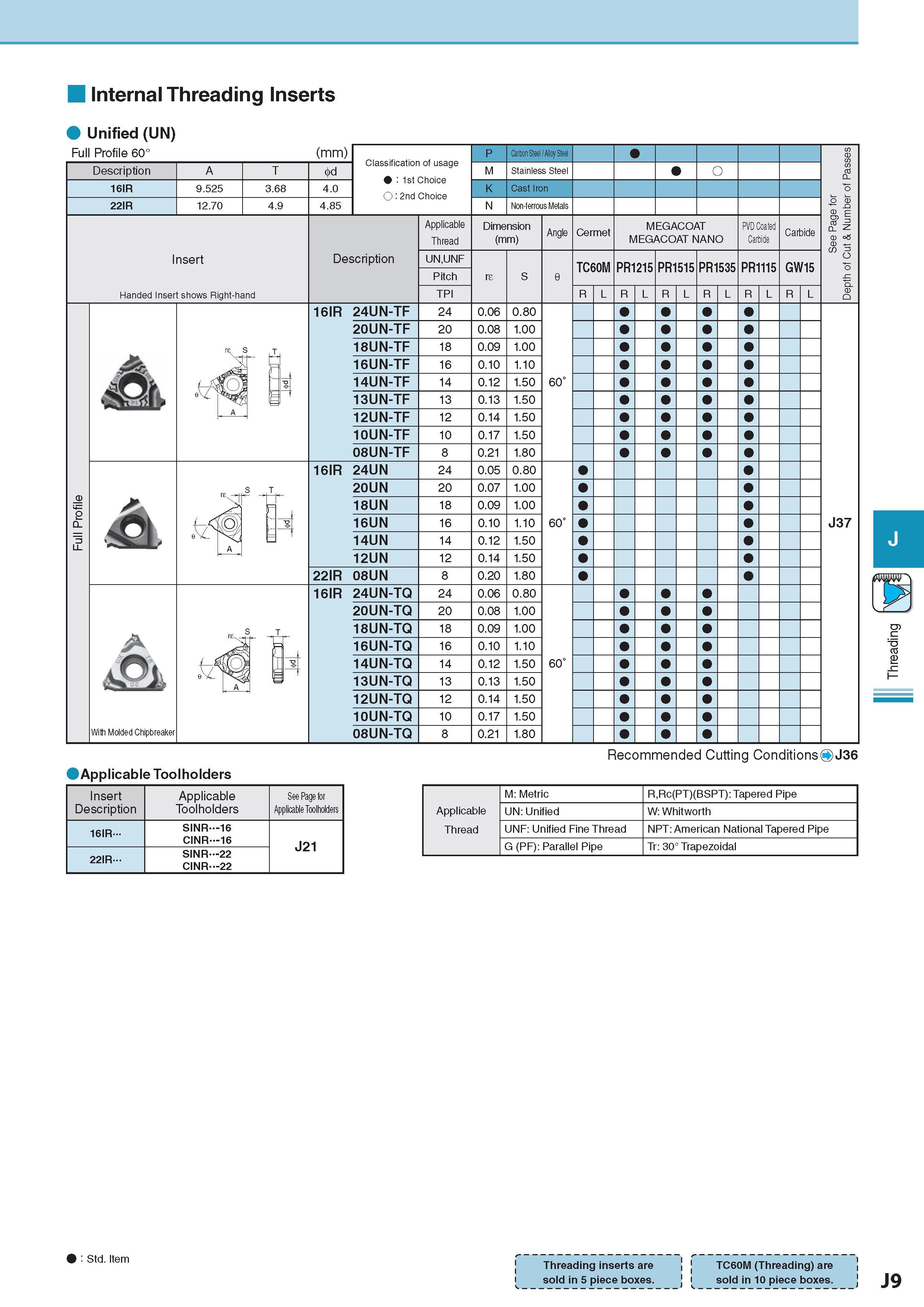

Internal Threading Inserts Unified (UN) Full Profile 60° Description Обозначение 16IR 22IR 9.525 12.70 3.68 4.9 Insert Handed Insert shows Right-hand (mm) P Carbon Steel / Alloy Steel See Page for Depth of Cut & Number of Passes : 1st Choice M Stainless Steel o 4.0 K Cast Iron 4.85 N Non-ferrous Metals Applicable Thread Dimension (mm) Размеры в мм Angle Cermet MEGACOAT MEGACOAT NANO PVD Coated Carbide Carbide Description Обозначение UN,UNF TC60M PR1215 PR1515 PR1535 PR1115 GW15 Pitch re S 0 TPI R L R L R L R L R L R L 16IR 24UN-TF 24 0.06 0.80 20UN-TF 20 0.08 1.00 18UN-TF 18 0.09 1.00 16UN-TF 16 0.10 1.10 14UN-TF 14 0.12 1.50 0 6 13UN-TF 13 0.13 1.50 12UN-TF 12 0.14 1.50 10UN-TF 10 0.17 1.50 08UN-TF 8 0.21 1.80 16IR 24UN 24 0.05 0.80 20UN 20 0.07 1.00 18UN 18 0.09 1.00 16UN 16 0.10 1.10 0 6 J37 14UN 14 0.12 1.50 12UN 12 0.14 1.50 22IR 08UN 8 0.20 1.80 16IR 24UN-TQ 24 0.06 0.80 20UN-TQ 20 0.08 1.00 18UN-TQ 18 0.09 1.00 16UN-TQ 16 0.10 1.10 14UN-TQ 14 0.12 1.50 0 6 13UN-TQ 13 0.13 1.50 12UN-TQ 12 0.14 1.50 10UN-TQ 10 0.17 1.50 08UN-TQ 8 0.21 1.80 With Molded Chipbreaker Стружколом сменной пластины Applicable Toolholders Recommended Cutting Conditions Рекомендованные режимы резания на станкахO J36 A T E S S T Insert Description Обозначение Applicable Toolholders See Page for Applicable Toolholders 16IR- SINR 16 CINR 16 J21 22IR- SINR 22 CINR 22 M: Metric R,Rc(PT)(BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Tr: 30° Trapezoidal 9 : Std. Item Стандартная позиция Threading inserts are sold in 5 piece boxes. TC60M (Threading) are , sold in 10 piece boxes. J J9 Threading
