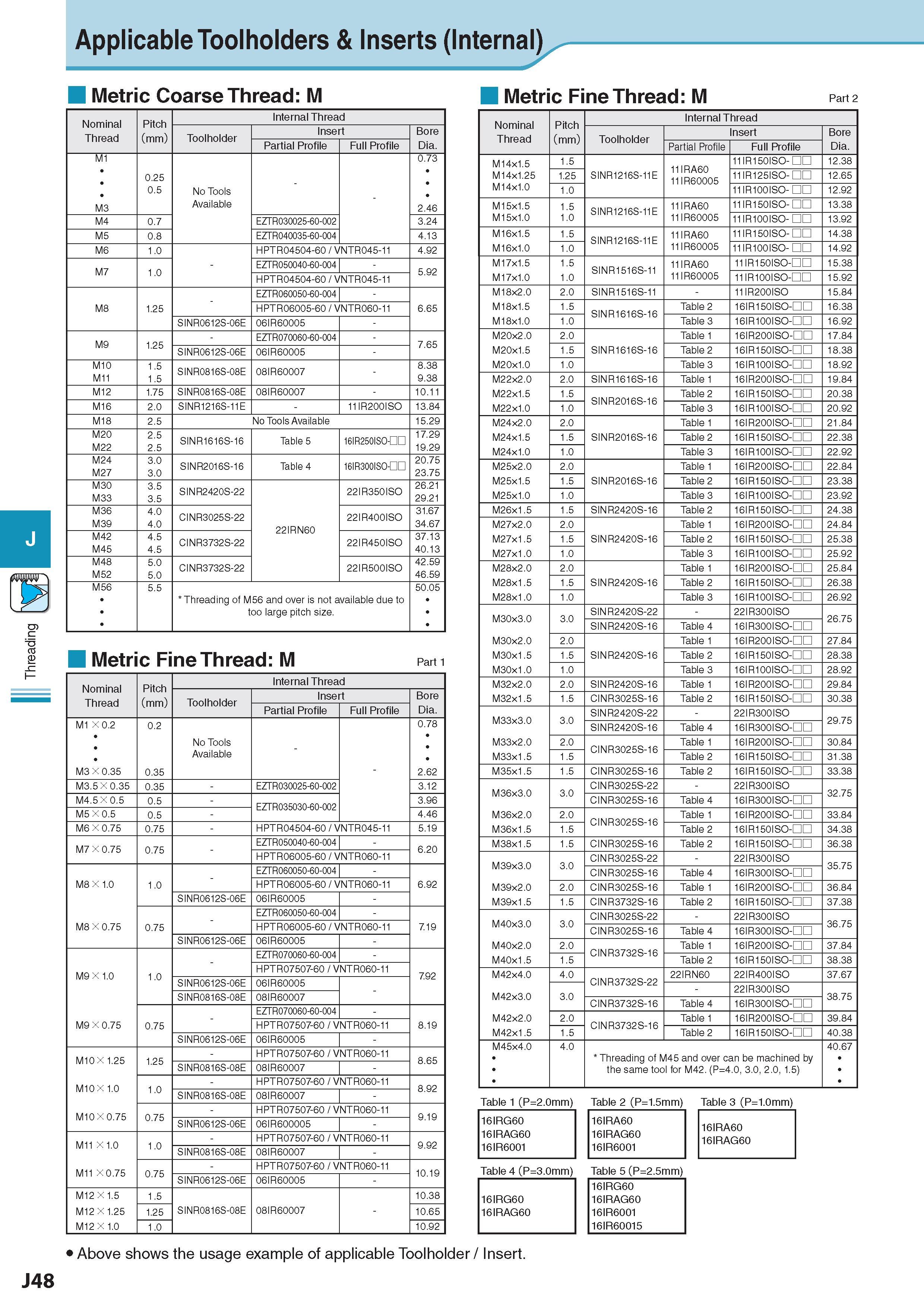

Threading Applicable Toolholders & Inserts (Internal) Metric Coarse Thread: M Metric Fine Thread: M Nominal Thread Pitch (mm) Internal Thread Toolholder Insert Bore Partial Profile Full Profile Dia. M1 0.73 0.25 0.5 No Tools M3 Available 2.46 M4 0.7 EZTR030025-60-002 3.24 M5 0.8 EZTR040035-60-004 4.13 M6 1.0 HPTR04504-60 VNTR045-11 4.92 M7 1.0 EZTR050040-60-0041 5.92 HPTR04504-60 VNTR045-11 EZTR060050-60-0041 M8 1.25 HPTR06005-60 VNTR060-11 6.65 SINR0612S-06E 06IR60005 M9 1.25 EZTR070060-60-004 7.65 SINR0612S-06E 06IR60005 M10 M11 1.5 1.5 SINR0816S-08E 08IR60007 8.38 9.38 M12 1.75 SINR0816S-08E 08IR60007 10.11 M16 2.0 SINR1216S-11E 11IR200IS0 13.84 M18 2.5 No Tools Available 15.29 M20 M22 2.5 2.5 SINR1616S-16 Table 5 16IR250IS0-CD 17.29 19.29 M24 M27 3.0 3.0 SINR2016S-16 Table 4 16IR300IS0-CD 20.75 23.75 M30 M33 3.5 3.5 SINR2420S-22 22IR350IS0 26.21 29.21 M36 M39 4.0 4.0 CINR3025S-22 22IRN60 22IR400IS0 31.67 34.67 M42 M45 4.5 4.5 CINR3732S-22 22IR450IS0 37.13 40.13 M48 M52 5.0 5.0 CINR3732S-22 22IR500IS0 42.59 46.59 M56 5.5 50.05 Threading of M56 and over is not available due to too large pitch size. Part 1 Nominal Thread Pitch (mm) Internal Thread Toolholder Insert Bore Dia. Partial Profile Full Profile M1 X 0.2 M3 X 0.35 0.2 0.35 No Tools Available 0.78 2.62 M3.5 X 0.35 0.35 EZTR030025-60-002 3.12 M4.5X 0.5 0.5 EZTR035030-60-002 3.96 M5 X 0.5 0.5 4.46 M6 X 0.75 0.75 HPTR04504-60 VNTR045-11 5.19 M7 X 0.75 0.75 EZTR050040-60-0041 6.20 HPTR06005-60 VNTR060-11 M8 X 1.0 M8 X 0.75 1.0 EZTR060050-60-0041 6.92 HPTR06005-60 VNTR060-11 SINR0612S-06E 06IR60005 0.75 EZTR060050-60-004 7.19 HPTR06005-60 VNTR060-11 SINR0612S-06E 06IR60005 M9 X 1.0 M9 X 0.75 1.0 EZTR070060-60-004 7.92 HPTR07507-60 / VNTR060-11 SINR0612S-06E 06IR60005 SINR0816S-08E 08IR60007 0.75 EZTR070060-60-004 8.19 HPTR07507-60 / VNTR060-11 SINR0612S-06E 06IR60005 - M10 X 1.25 M10 X 1.0 M10 X 0.75 1.25 HPTR07507-60 / VNTR060-11 8.65 SINR0816S-08E 08IR60007 - 1.0 HPTR07507-60 / VNTR060-11 8.92 SINR0816S-08E 08IR60007 - 0.75 HPTR07507-60 / VNTR060-11 9.19 SINR0612S-06E 06IR600005 - M11 X 1.0 M11 X 0.75 1.0 HPTR07507-60 / VNTR060-11 9.92 SINR0816S-08E 08IR60007 - 0.75 HPTR07507-60 / VNTR060-11 10.19 SINR0612S-06E 06IR60005 M12 X 1.5 M12 X 1.25 M12 X 1.0 1.5 SINR0816S-08E 08IR60007 10.38 1.25 10.65 1.0 10.92 Metric Fine Thread: M Table 1 (P=2.0mm) Table 2 (P=1.5mm) Table 3 (P=1.0mm) 16IRG60 16IRAG60 16IR6001 16IRA60 16IRAG60 16IR6001 16IRA60 16IRAG60 Table 4 (P=3.0mm) Table 5 (P=2.5mm) 16IRG60 16IRAG60 16IRG60 16IRAG60 16IR6001 16IR60015 Part 2 Nominal Thread Pitch (mm) Internal Thread Toolholder Insert Bore Partial Profile Full Profile Dia. M14x1.5 1.5 11IRA60 11IR60005 11IR150IS0- 12.38 M14x1.25 1.25 SINR1216S-11E 11IR125IS0- 12.65 M14x1.0 1.0 11IR100IS0- 12.92 M15x1.5 1.5 SINR1216S-11E 11IRA60 11IR150IS0- 13.38 M15x1.0 1.0 11IR60005 11IR100IS0- 13.92 M16x1.5 1.5 SINR1216S-11E 11IRA60 11IR150IS0- 14.38 M16x1.0 1.0 11IR60005 11IR100IS0- 14.92 M17x1.5 1.5 SINR1516S-11 11IRA60 11IR150IS0-m 15.38 M17x1.0 1.0 11IR60005 11IR100IS0-QD 15.92 M18x2.0 2.0 SINR1516S-11 11IR200IS0 15.84 M18x1.5 1.5 SINR1616S-16 Table 2 16IR150IS0-m 16.38 M18x1.0 1.0 Table 3 16IR100IS0-m 16.92 M20x2.0 2.0 Table 1 16IR200IS0-m 17.84 M20x1.5 1.5 SINR1616S-16 Table 2 16IR150IS0-m 18.38 M20x1.0 1.0 Table 3 16IR100IS0-m 18.92 M22x2.0 2.0 SINR1616S-16 Table 1 16IR200IS0-ID 19.84 M22x1.5 1.5 SINR2016S-16 Table 2 16IR150IS0-m 20.38 M22x1.0 1.0 Table 3 16IR100IS0-m 20.92 M24x2.0 2.0 Table 1 16IR200IS0-m 21.84 M24x1.5 1.5 SINR2016S-16 Table 2 16IR150IS0-m 22.38 M24x1.0 1.0 Table 3 16IR100IS0-m 22.92 M25x2.0 2.0 Table 1 16IR200IS0-m 22.84 M25x1.5 1.5 SINR2016S-16 Table 2 16IR150IS0-m 23.38 M25x1.0 1.0 Table 3 16IR100IS0-m 23.92 M26x1.5 1.5 SINR2420S-16 Table 2 16IR150IS0-m 24.38 M27x2.0 2.0 Table 1 16IR200IS0-m 24.84 M27x1.5 1.5 SINR2420S-16 Table 2 16IR150IS0-m 25.38 M27x1.0 1.0 Table 3 16IR100IS0-m 25.92 M28x2.0 2.0 Table 1 16IR200IS0-m 25.84 M28x1.5 1.5 SINR2420S-16 Table 2 16IR150IS0-m 26.38 M28x1.0 1.0 Table 3 16IR100IS0-m 26.92 M30x3.0 3.0 SINR2420S-22 22IR300IS0 26.75 SINR2420S-16 Table 4 16IR300IS0-m M30x2.0 2.0 Table 1 16IR200IS0-m 27.84 M30x1.5 1.5 SINR2420S-16 Table 2 16IR150IS0-m 28.38 M30x1.0 1.0 Table 3 16IR100IS0-m 28.92 M32x2.0 2.0 SINR2420S-16 Table 1 16IR200IS0-m 29.84 M32x1.5 1.5 CINR3025S-16 Table 2 16IR150IS0-m 30.38 M33x3.0 3.0 SINR2420S-22 22IR300IS0 29.75 SINR2420S-16 Table 4 16IR300IS0-m M33x2.0 2.0 CINR3025S-16 Table 1 16IR200IS0-m 30.84 M33x1.5 1.5 Table 2 16IR150IS0-m 31.38 M35x1.5 1.5 CINR3025S-16 Table 2 16IR150IS0-m 33.38 M36x3.0 3.0 CINR3025S-22 22IR300IS0 32.75 CINR3025S-16 Table 4 16IR300IS0-IO M36x2.0 2.0 CINR3025S-16 Table 1 16IR200IS0-IO 33.84 M36x1.5 1.5 Table 2 16IR150IS0-IO 34.38 M38x1.5 1.5 CINR3025S-16 Table 2 16IR150IS0-IO 36.38 M39x3.0 3.0 CINR3025S-22 22IR300IS0 35.75 CINR3025S-16 Table 4 16IR300IS0-m M39x2.0 2.0 CINR3025S-16 Table 1 16IR200IS0-IO 36.84 M39x1.5 1.5 CINR3732S-16 Table 2 16IR150IS0-IO 37.38 M40x3.0 3.0 CINR3025S-22 22IR300IS0 36.75 CINR3025S-16 Table 4 16IR300IS0-IO M40x2.0 2.0 CINR3732S-16 Table 1 16IR200IS0-m 37.84 M40x1.5 1.5 Table 2 16IR150IS0-IO 38.38 M42x4.0 4.0 CINR3732S-22 22IRN60 22IR400IS0 37.67 M42x3.0 3.0 22IR300IS0 38.75 CINR3732S-16 Table 4 16IR300IS0-IO M42x2.0 2.0 CINR3732S-16 Table 1 16IR200IS0-m 39.84 M42x1.5 1.5 Table 2 16IR150IS0-IO 40.38 M45x4.0 4.0 Threading of M45 and over can be machined by the same tool for M42. (P=4.0, 3.0, 2.0, 1.5) 40.67 Above shows the usage example of applicable Toolholder / Insert. J48
