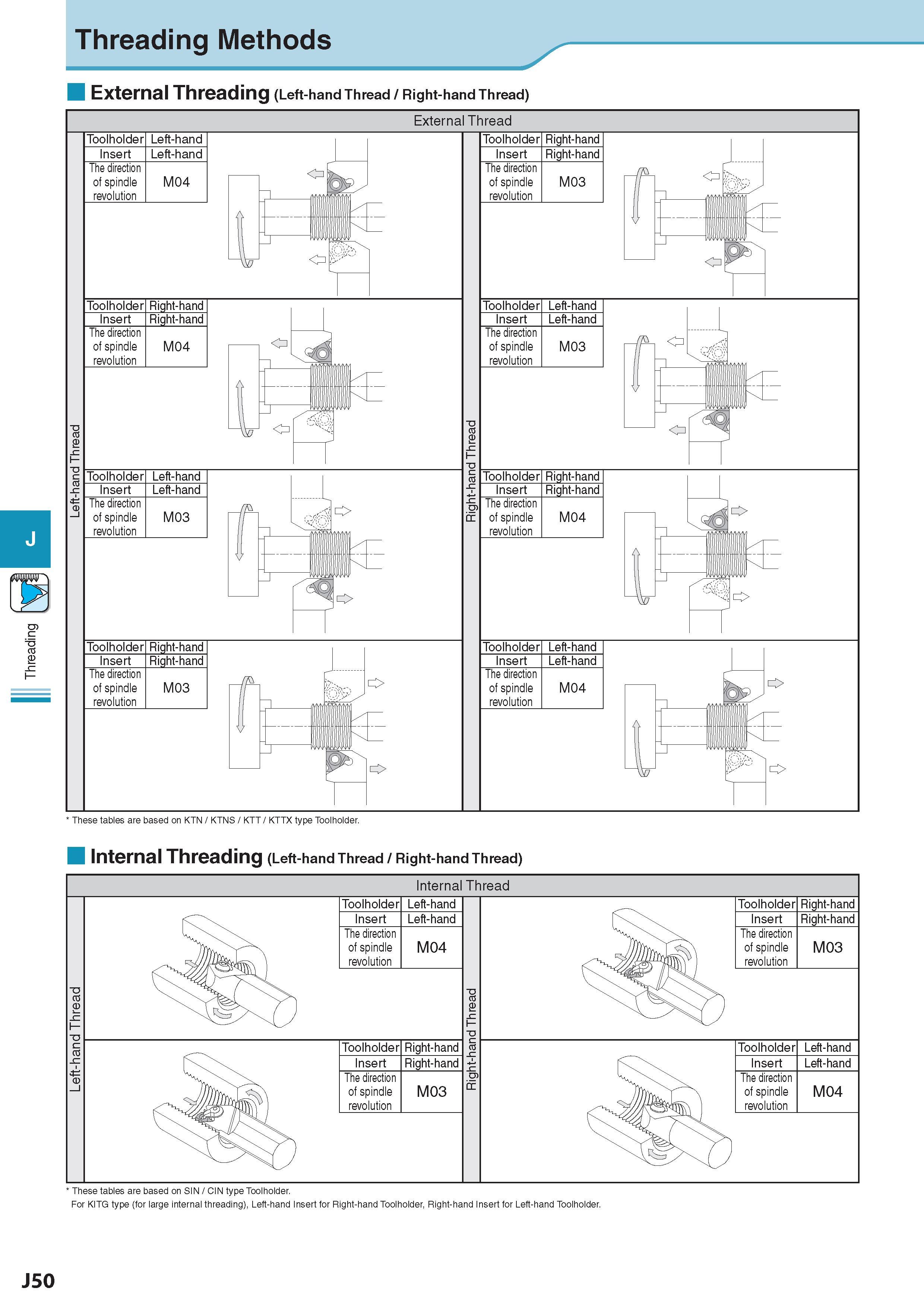

Threading Threading Methods External Threading (Left-hand Thread / Right-hand Thread) External Thread Toolholder Left-hand Insert Left-hand The direction of spindle revolution M04 Toolholder Right-hand Insert Right-hand The direction of spindle revolution M03 Toolholder Riqht-hand Insert Riqht-hand The direction of spindle revolution M04 Toolholder Left-hand Insert Left-hand The direction of spindle revolution M03 Toolholder Right-hand Insert Right-hand The direction of spindle revolution M03 Toolholder Left-hand Insert Left-hand The direction of spindle revolution M03 Toolholder Right-hand Insert Right-hand The direction of spindle revolution M04 Toolholder Left-hand Insert Left-hand The direction of spindle revolution M04 These tables are based on KTN / KTNS / KTT / KTTX type Toolholder. Internal Threading (Left-hand Thread / Right-hand Thread) For KITG type (for large internal threading), Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder J50
