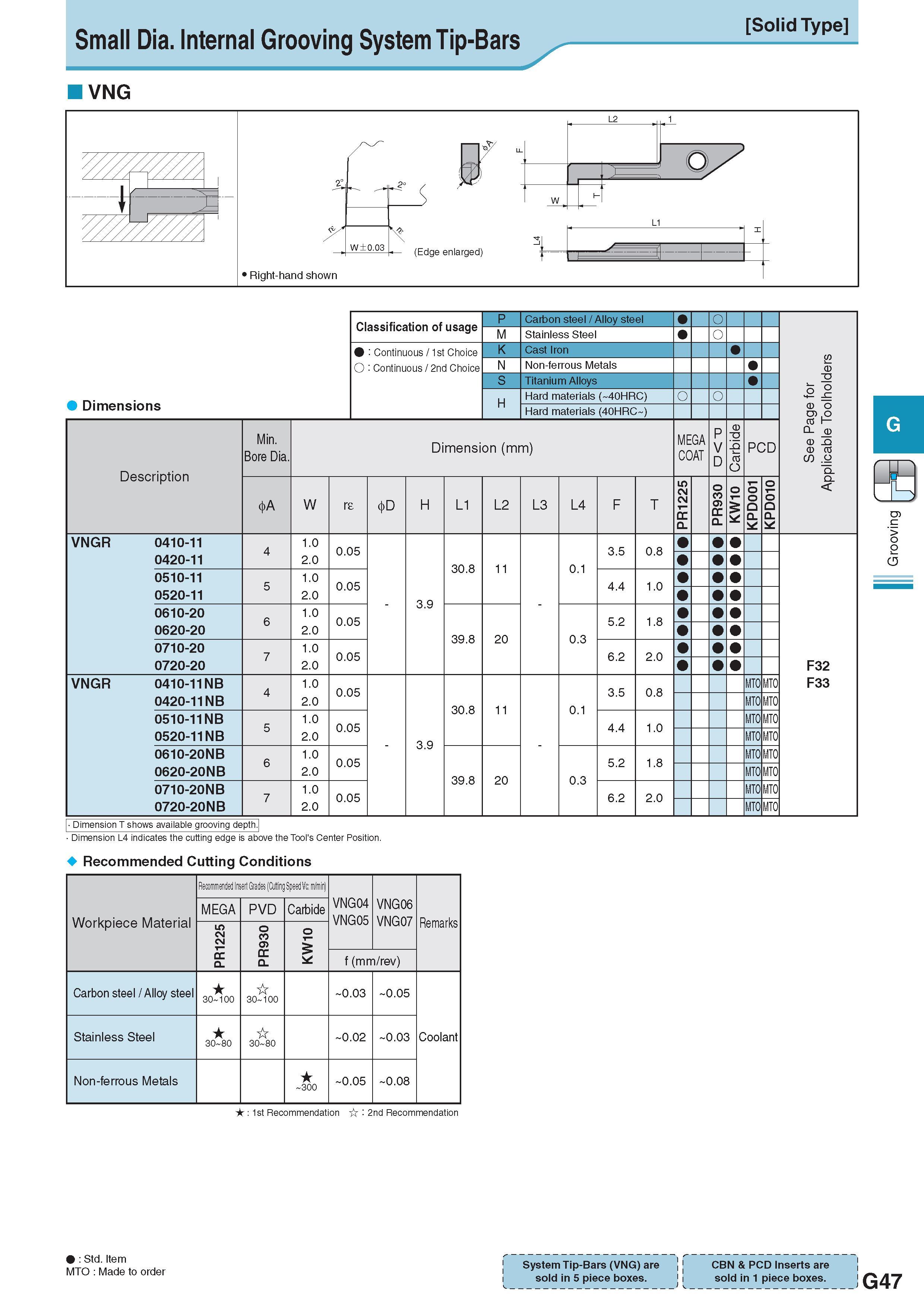

Small Dia. Internal Grooving System Tip-Bars VNG Solid Type Dimensions Classification of usage P Carbon steel / Alloy steel O See Page for Applicable Toolholders M Stainless Steel O : Continuous / 1st Choice O : Continuous / 2nd Choice K Cast Iron N Non-ferrous Metals S Titanium Alloys H Hard materials ( 40HRC) Hard materials (40HRC ) Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм MEGA COAT P V D Carbide PCD W re D H L1 L2 L3 L4 F T PR1225 PR930 KW10 KPD001 KPD010 VNGR 0410-11 4 1.0 2.0 0.05 - 3.9 30.8 11 - 0.1 3.5 0.8 F32 F33 0420-11 0510-11 0520-11 5 1.0 2.0 0.05 4.4 1.0 0610-20 0620-20 6 1.0 2.0 0.05 39.8 20 0.3 5.2 1.8 0710-20 0720-20 7 1.0 2.0 0.05 6.2 2.0 VNGR 0410-11NB 4 1.0 2.0 0.05 - 3.9 30.8 11 - 0.1 3.5 0.8 MTO MTO 0420-11NB MTO MTO 0510-11NB 0520-11NB 5 1.0 2.0 0.05 4.4 1.0 MTO MTO MTO MTO 0610-20NB 0620-20NB 6 1.0 2.0 0.05 39.8 20 0.3 5.2 1.8 MTO MTO MTO MTO 0710-20NB 0720-20NB 7 1.0 2.0 0.05 6.2 2.0 MTO MTO MTO MTO rj > o o 5 Dimension T shows available grooving depth. Dimension L4 indicates the cutting edge is above the Tool's Center Position. Recommended Cutting Conditions Рекомендованные режимы резания на станках Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) VNG04 VNG05 Workpiece Material Обрабатываемый материал MEGA PVD Carbide VNG06 VNG07 Remarks Примечания PR1225 PR930 KW10 f (mm/rev) Carbon steel / Alloy steel 30 100 30 100 0.03 0.05 Stainless Steel 30 80 30 80 0.02 0.03 Coolant Non-ferrous Metals 300 0.05 0.08 : 1st Recommendation : 2nd Recommendation NT,Std, „Ite ,m. 1 System Tip-Bars (VNG) are 1' CBN & PCD Inserts are MTO : Made to order ' ’ r ' ’ 11 sold in 5 piece boxes. J i sold in 1 piece boxes. J G47
