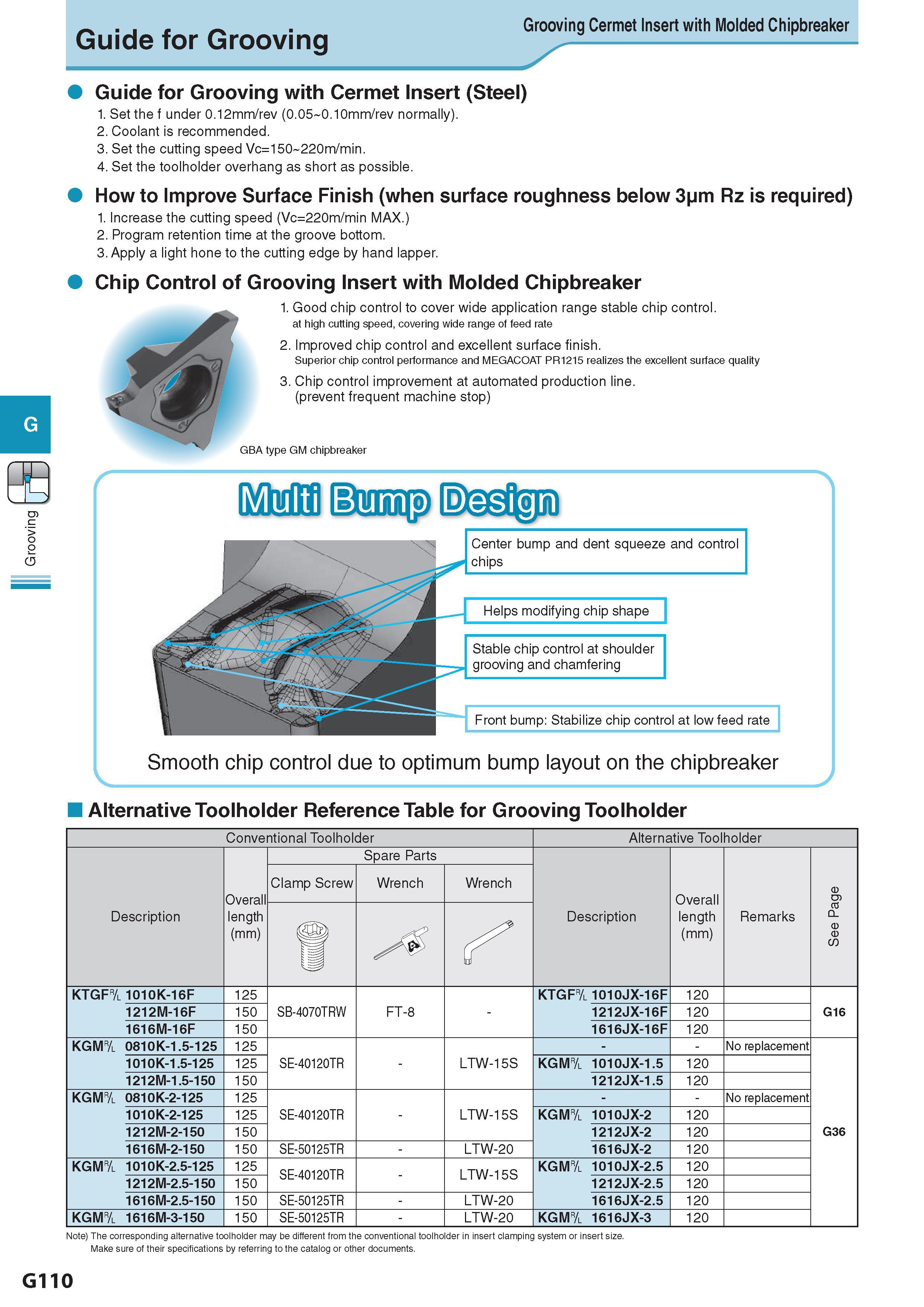

Grooving Guide for Grooving Grooving Cermet Insert with Molded Chipbreaker Стружколом сменной пластины Guide for Grooving with Cermet Insert (Steel) 1. Set the f under 0.12mm/rev (0.05 0.10mm/rev normally). 2. Coolant is recommended. 3. Set the cutting speed Vc=150 220m/min. 4. Set the toolholder overhang as short as possible. How to Improve Surface Finish (when surface roughness below 3pm Rz is required) 1. Increase the cutting speed (Vc=220m/min MAX.) 2. Program retention time at the groove bottom. 3. Apply a light hone to the cutting edge by hand lapper. Chip Control of Grooving Insert with Molded Chipbreaker Стружколом сменной пластины 1. Good chip control to cover wide application range stable chip control, at high cutting speed, covering wide range of feed rate 2. Improved chip control and excellent surface finish. Superior chip control performance and MEGACOAT PR1215 realizes the excellent surface quality 3. Chip control improvement at automated production line. (prevent frequent machine stop) GBA type GM chipbreaker IMuitiibumpiDesignl Center bump and dent squeeze and controi chips Helps modifying chip shape Stable chip control at shoulder grooving and chamfering Front bump: Stabilize chip control at low feed rate Smooth chip control due to optimum bump layout on the chipbreaker Alternative Toolholder Reference Table for Grooving Toolholder J Conventional Toolholder Alternative Toolholder Description Обозначение Overall length (mm) Spare Parts Description Обозначение Overall length (mm) Remarks Примечания
