473 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.H2

Каталог KYOCERA 2017 Инструмент режущий Стр. H2 0473 Lab2u

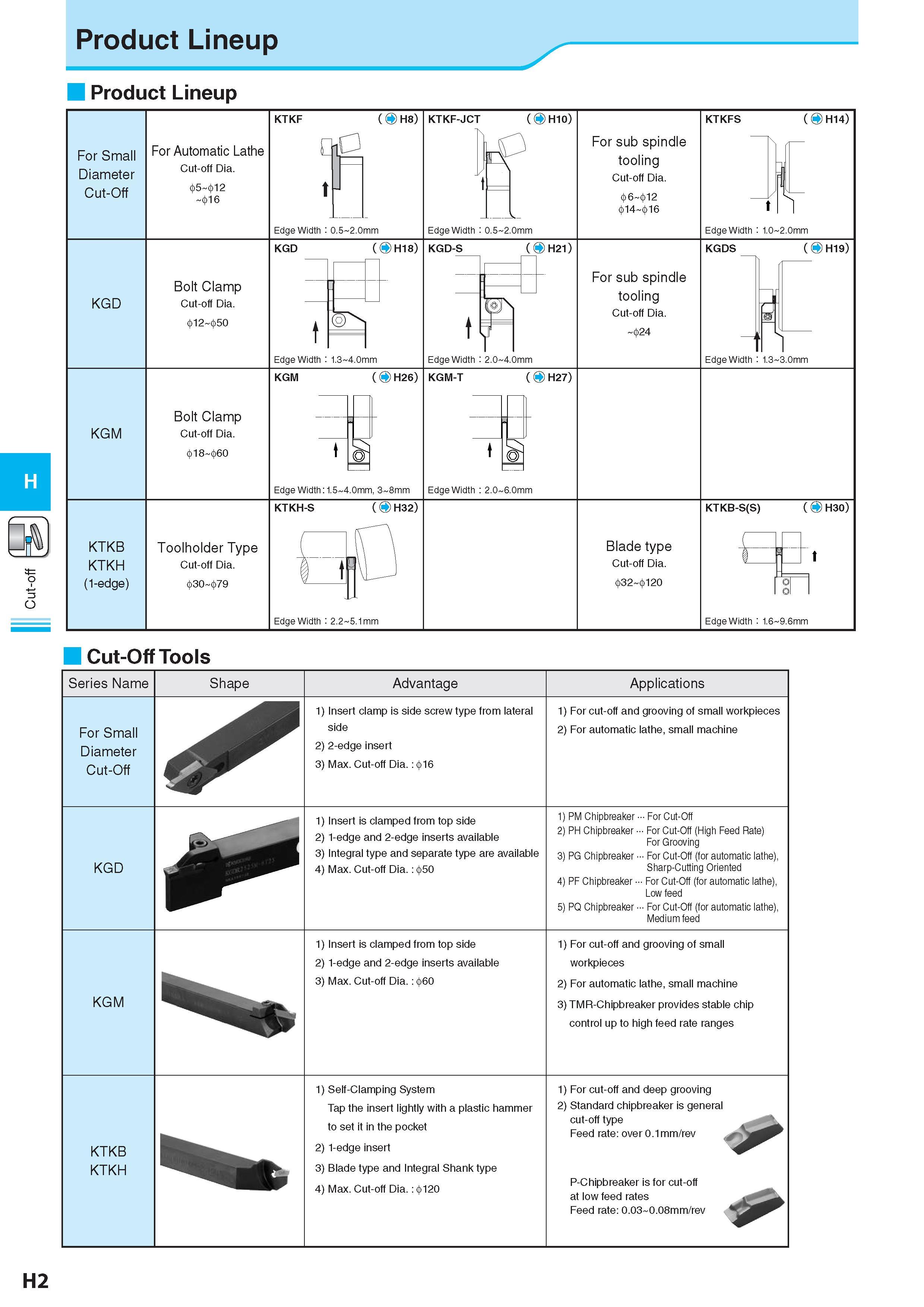

Cut-off Product Lineup Product Lineup For Small Diameter Cut-Off For Automatic Lathe Cut-off Dia. 05-012 -016 KTKF (O H8) Qi t Edge Width : 0.5-2.0mm KTKF-JCT (O H10) Oh Edge Width : 0.5-2.0mm For sub spindle tooling Cut-off Dia. 06-012 014-016 KTKFS (O H14) Edge Width : 1.0-2.0mm KGD KGD ro H18) Bolt Clamp Cut-off Dia. 012-050 KGDS ro H19) For sub spindle tooling Cut-off Dia. -024 Edge Width : 1.3-4.0mm Edge Width : 2.0-4.0mm i Edge Width : 1.3-3.0mm KGM KGM ro H26) KGM-T ro H27) Bolt Clamp Cut-off Dia. 018-060 a a Edge Width :1.5-4.0mm, 3-8mm Edge Width : 2.0-6.0mm KTKB KTKH (1-edge) KTKH-S ro H32) KTKB-S(S) ro H30) Toolholder Type Cut-off Dia. 030-079 Blade type Cut-off Dia. 032-0120 HH Edge Width : 1.6-9.6mm I Cut-Off Tools Series Name Shape Advantage Applications For Small Diameter Cut-Off 1) Insert clamp is side screw type from lateral side 2) 2-edge insert 3) Max. Cut-off Dia.: 4>16 1) For cut-off and grooving of small workpieces 2) For automatic lathe, small machine KGD 1) Insert is clamped from top side 2) 1-edge and 2-edge inserts available 3) Integral type and separate type are available 4) Max. Cut-off Dia. : 050 1) PM Chipbreaker Стружколом сменной пластины For Cut-Off 2) PH Chipbreaker Стружколом сменной пластины For Cut-Off (High Feed Rate) For Grooving 3) PG Chipbreaker Стружколом сменной пластины For Cut-Off (for automatic lathe), Sharp-Cutting Oriented 4) PF Chipbreaker Стружколом сменной пластины For Cut-Off (for automatic lathe), Low feed 5) PQ Chipbreaker Стружколом сменной пластины For Cut-Off (for automatic lathe), Medium feed KGM 1) Insert is clamped from top side 2) 1-edge and 2-edge inserts available 3) Max. Cut-off Dia. : 060 1) For cut-off and grooving of small workpieces 2) For automatic lathe, small machine 3) TMR-Chipbreaker provides stable chip control up to high feed rate ranges KTKB KTKH - 1) Self-Clamping System Tap the insert lightly with a plastic hammer to set it in the pocket 2) 1-edge insert 3) Blade type and Integral Shank type 4) Max. Cut-off Dia. : 0120 1) For cut-off and deep grooving 2) Standard chipbreaker is general cut-off type Feed rate: over 0.1 mm/rev P-Chipbreaker is for cut-off at low feed rates Feed rate: 0.03 0.08mm/rev H2
