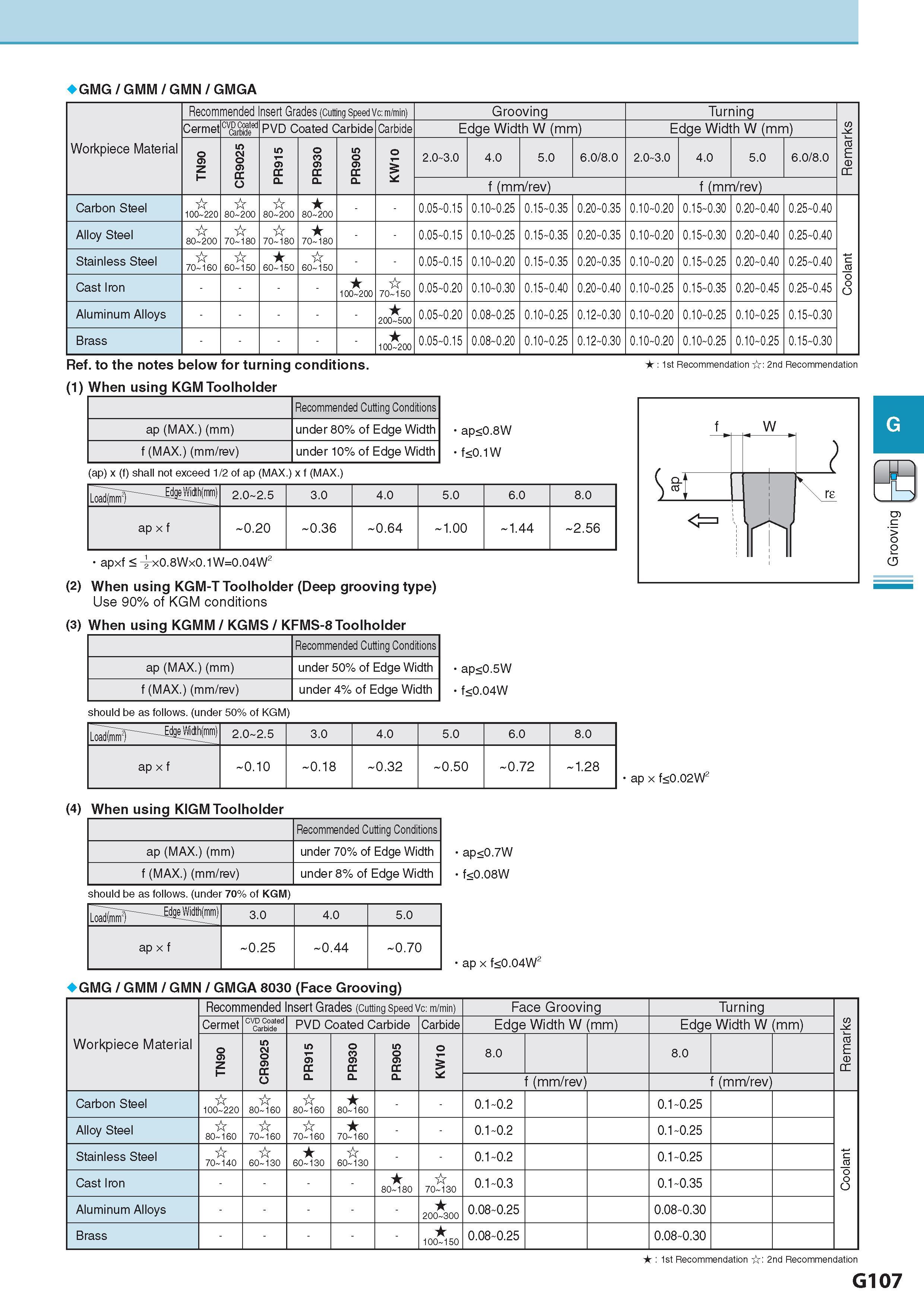

GMG/GMM/GMN/GMGA Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Grooving Turning Remarks Примечания Cermet CVD Coated Carbide PVD Coated Carbide Carbide Edge Width W (mm) Edge Width W (mm) TN90 CR9025 PR915 PR930 PR905 KW10 2.0 3.0 4.0 5.0 6.0/8.0 2.0 3.0 4.0 5.0 6.0/8.0 f (mm/rev) Carbon Steel 100 220 80 200 80 200 80 200 0.05 0.15 0.10 0.25 0.15 0.35 0.20 0.35 0.10 0.20 0.15 0.30 0.20 0.40 0.25 0.40 Coolant Alloy Steel 80 200 70 180 70 180 70 180 0.05 0.15 0.10 0.25 0.15 0.35 0.20 0.35 0.10 0.20 0.15 0.30 0.20 0.40 0.25 0.40 Stainless Steel 70 160 60 150 60 150 60 150 0.05 0.15 0.10 0.20 0.15 0.35 0.20 0.35 0.10 0.20 0.15 0.25 0.20 0.40 0.25 0.40 Cast Iron 100 200 70 150 0.05 0.20 0.10 0.30 0.15 0.40 0.20 0.40 0.10 0.25 0.15 0.35 0.20 0.45 0.25 0.45 Aluminum Alloys 200 500 0.05 0.20 0.08 0.25 0.10 0.25 0.12 0.30 0.10 0.20 0.10 0.25 0.10 0.25 0.15 0.30 Brass 100 200 0.05 0.15 0.08 0.20 0.10 0.25 0.12 0.30 0.10 0.20 0.10 0.25 0.10 0.25 0.15 0.30 Ref. to the notes below for turning conditions. (1) When using KGM Toolholder Recommended Cutting Conditions Рекомендованные режимы резания на станках ap (MAX.) (mm) under 80% of Edge Width f (MAX.) (mm/rev) under 10% of Edge Width ap<0.8W f<0.1W (ap) x (f) shall not exceed 1/2 of ap (MAX.) x f (MAX.) apxf < nrx0.8Wx0.1W=0.04W2 (2) When using KGM-T Toolholder (Deep grooving type) Use 90% of KGM conditions (3) When using KGMM / KGMS / KFMS-8 Toolholder Recommended Cutting Conditions Рекомендованные режимы резания на станках ap (MAX.) (mm) under 50% of Edge Width f (MAX.) (mm/rev) under 4% of Edge Width ap<0.5W f<0.04W should be as follows. (under 50% of KGM) (4) When using KIGM Toolholder Recommended Cutting Conditions Рекомендованные режимы резания на станках ap (MAX.) (mm) under 70% of Edge Width f (MAX.) (mm/rev) under 8% of Edge Width ap<0.7W f<0.08W should be as follows. (under 70% of KGM) Loadlmm r 3.0 4.0 5.0 ap x f 0.25 0.44 0.70 ap x f<0.04W2 GMG / GMM / GMN / GMGA 8030 (Face Grooving) LoadM 2.0 2.5 3.0 4.0 5.0 6.0 8.0 ap x f 0.20 0.36 0.64 1.00 1.44 2.56 LoadW -ida WMh(mm) 2.0 2.5 3.0 4.0 5.0 6.0 8.0 ap x f 0.10 0.18 0.32 0.50 0.72 1.28 ap x f<0.02W2 G Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Face Grooving Turning Remarks Примечания Cermet CVD Coated Carbide PVD Coated Carbide Carbide Edge Width W (mm) Edge Width W (mm) TN90 CR9025 PR915 PR930 PR905 KW10 8.0 8.0 f (mm/rev) Carbon Steel 100 220 80 160 80 160 80 160 0.1 0.2 0.1 0.25 Coolant Alloy Steel 80 160 70 160 70 160 70 160 0.1 0.2 0.1 0.25 Stainless Steel 70 140 60 130 60 130 60 130 0.1 0.2 0.1 0.25 Cast Iron 80 180 70 130 0.1 0.3 0.1 0.35 Aluminum Alloys 200 300 0.08 0.25 0.08 0.30 Brass 100 150 0.08 0.25 0.08 0.30 : 1st Recommendation : 2nd Recommendation G107 Grooving
