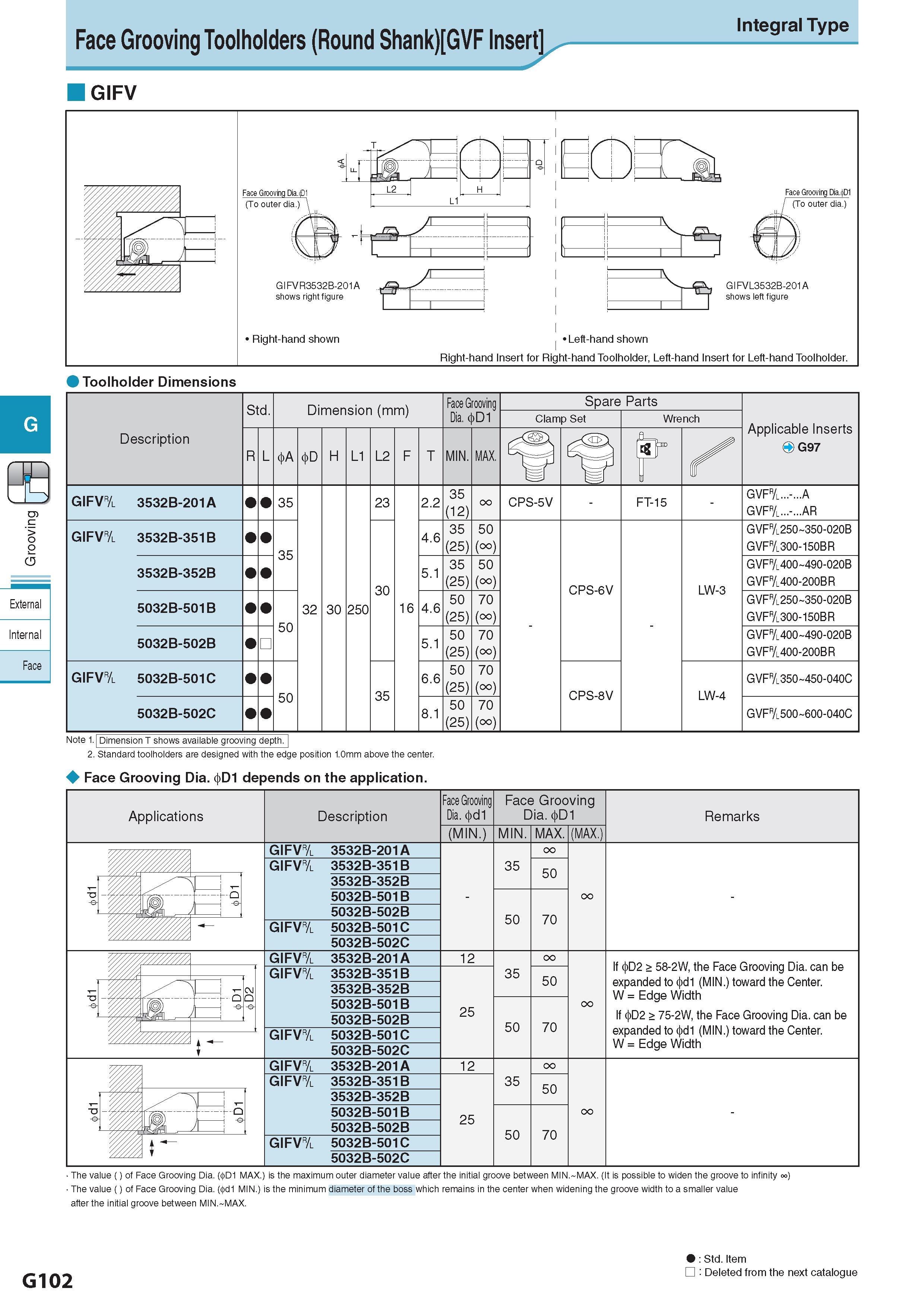

Face Grooving Toolholders (Round Shank) GVF Insert GIFV Integral Type Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Face Grooving Spare Parts Applicable Inserts O G97 Dia. >D1 Clamp Set Wrench R L A H L1 L2 F T MIN. MAX. n H GIFV& 3532B-201A 35 32 30 250 23 16 2.2 35 (12) ro CPS-5V - FT-15 - GVF&...-...A GVF&...-...AR GIFV& 3532B-351B 35 30 4.6 35 (25) 50 (to) - CPS-6V - LW-3 GVF&250-350-020B GVF&300-150BR 3532B-352B 5.1 35 (25) 50 (ro) GVF&400 490-020B GVF&400-200BR 5032B-501B 50 4.6 50 (25) 70 (ro) GVF&250-350-020B GVF&300-150BR 5032B-502B 5.1 50 (25) 70 (ro) GVF&400-490-020B GVF&400-200BR GIFV& 5032B-501C 50 35 6.6 50 (25) 70 (ro) CPS-8V LW-4 GVF&350-450-040C 5032B-502C 8.1 50 (25) 70 (ro) GVF&500-600-040C Note 1. Dimension T shows available grooving depth. External Internal Face 2. Standard toolholders are designed with the edge position 1.0mm above the center. Face Grooving Dia. D1 depends on the application. Applications Description Обозначение Face Grooving Dia. d1 (MIN. Face Grooving Dia. D1 MIN. MAX. (MAX.) Remarks Примечания lip 5 ill TB GIFV& 3532B-201A GIFV& 3532B-351B 35 3532B-352B 50 5032B-501B 5032B-502B GIFV& 5032B-501C 50 70 5032B-502C GIFV& 3532B-201A 12 GIFV& 3532B-351B 35 3532B-352B 50 5032B-501B 5032B-502B 25 GIFV& 5032B-501C 50 70 5032B-502C If D2 > 58-2W, the Face Grooving Dia. can be expanded to d1 (MIN.) toward the Center. W = Edge Width If D2 > 75-2W, the Face Grooving Dia. can be expanded to d1 (MIN.) toward the Center. W = Edge Width GIFV& 3532B-201A 12 GIFV& 3532B-351B 35 3532B-352B 50 5032B-501B 5032B-502B 25 GIFV& 5032B-501C 50 70 5032B-502C The value of Face Grooving Dia. ( D1 MAX.) The value of Face Grooving Dia. ( d1 MIN.) after the initial groove between MIN. MAX. is the maximum outer diameter value after the initial groove between MIN. MAX. (It is possible to widen the groove to infinity oo) is the minimum diameter of the boss which remains in the center when widening the groove width to a smaller value oo oo oo G102 : Std. Item Стандартная позиция : Deleted from the next catalogue
