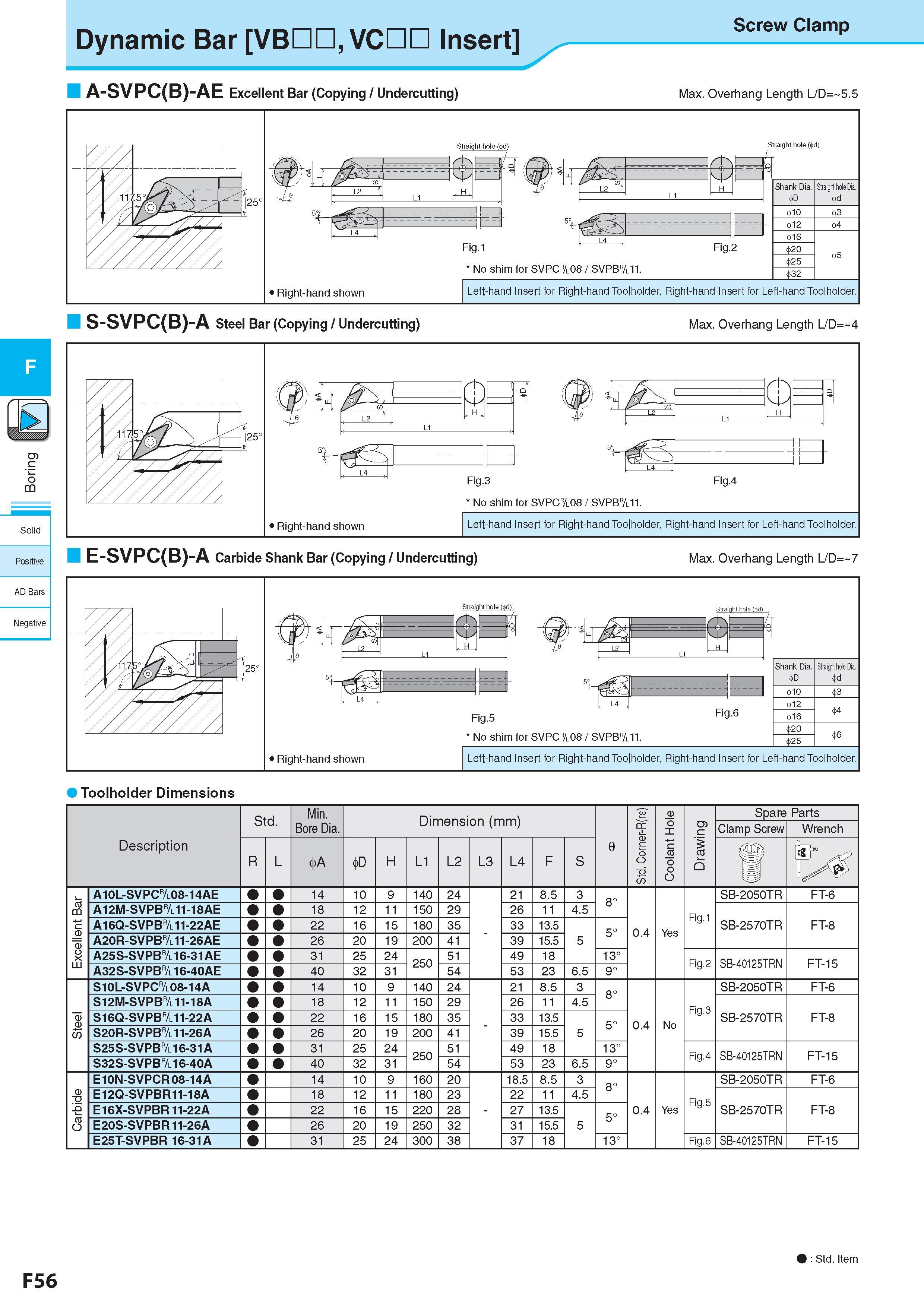

Dynamic Bar VBDD, VC Insert Screw Clamp A-SVPC(B)-AE Excellent Bar (Copying / Undercutting) Max. Overhang Length L/D= 5.5 c <5 CQ Solid Positive AD Bars Negative S-SVPC(B) -A Steel Bar (Copying / Undercutting) Max. Overhang Length L/D= 4 E-SVPC(B) -A Carbide Shank Bar (Copying / Undercutting) Max. Overhang Length L/D= 7 Fig.5 No shim for SVPC&08 / SVPB&11. Fig.6 Shank Dia. D Straight hole Dia. d 10 3 12 4 16 20 6 25 Показано правое исполнение инструмента Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Straight hole ( d) Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм e CT er c o O 33 GO Coolant Hole Drawing Spare Parts Clamp Screw Wrench R L A D H L1 L2 L3 L4 F S g )) Excellent Bar A10L-SVPC&08-14AE 14 10 9 140 24 - 21 8.5 3 8° 0.4 Yes Fig.1 SB-2050TR FT-6 A12M-SVPB&11-18AE 18 12 11 150 29 26 11 4.5 SB-2570TR FT-8 A16Q-SVPB&11-22AE 22 16 15 180 35 33 13.5 5 5° A20R-SVPB&11-26AE 26 20 19 200 41 39 15.5 A25S-SVPB&16-31AE 31 25 24 250 51 49 18 13° Fig.2 SB-40125TRN FT-15 A32S-SVPB&16-40AE 40 32 31 54 53 23 6.5 9° Steel S10L-SVPC&08-14A 14 10 9 140 24 - 21 8.5 3 8° 0.4 No Fig.3 SB-2050TR FT-6 S12M-SVPB&11-18A 18 12 11 150 29 26 11 4.5 SB-2570TR FT-8 S16Q-SVPB&11-22A 22 16 15 180 35 33 13.5 5 5° S20R-SVPB&11-26A 26 20 19 200 41 39 15.5 S25S-SVPB&16-31A 31 25 24 250 51 49 18 13° Fig.4 SB-40125TRN FT-15 S32S-SVPB&16-40A 40 32 31 54 53 23 6.5 9° Carbide E10N-SVPCR 08-14A 14 10 9 160 20 - 18.5 8.5 3 8° 0.4 Yes Fig.5 SB-2050TR FT-6 E12Q-SVPBR11-18A 18 12 11 180 23 22 11 4.5 SB-2570TR FT-8 E16X-SVPBR 11-22A 22 16 15 220 28 27 13.5 5 5° E20S-SVPBR 11-26A 26 20 19 250 32 31 15.5 E25T-SVPBR 16-31A 31 25 24 300 38 37 18 13° Fig.6 SB-40125TRN FT-15 F56 : Std. Item
