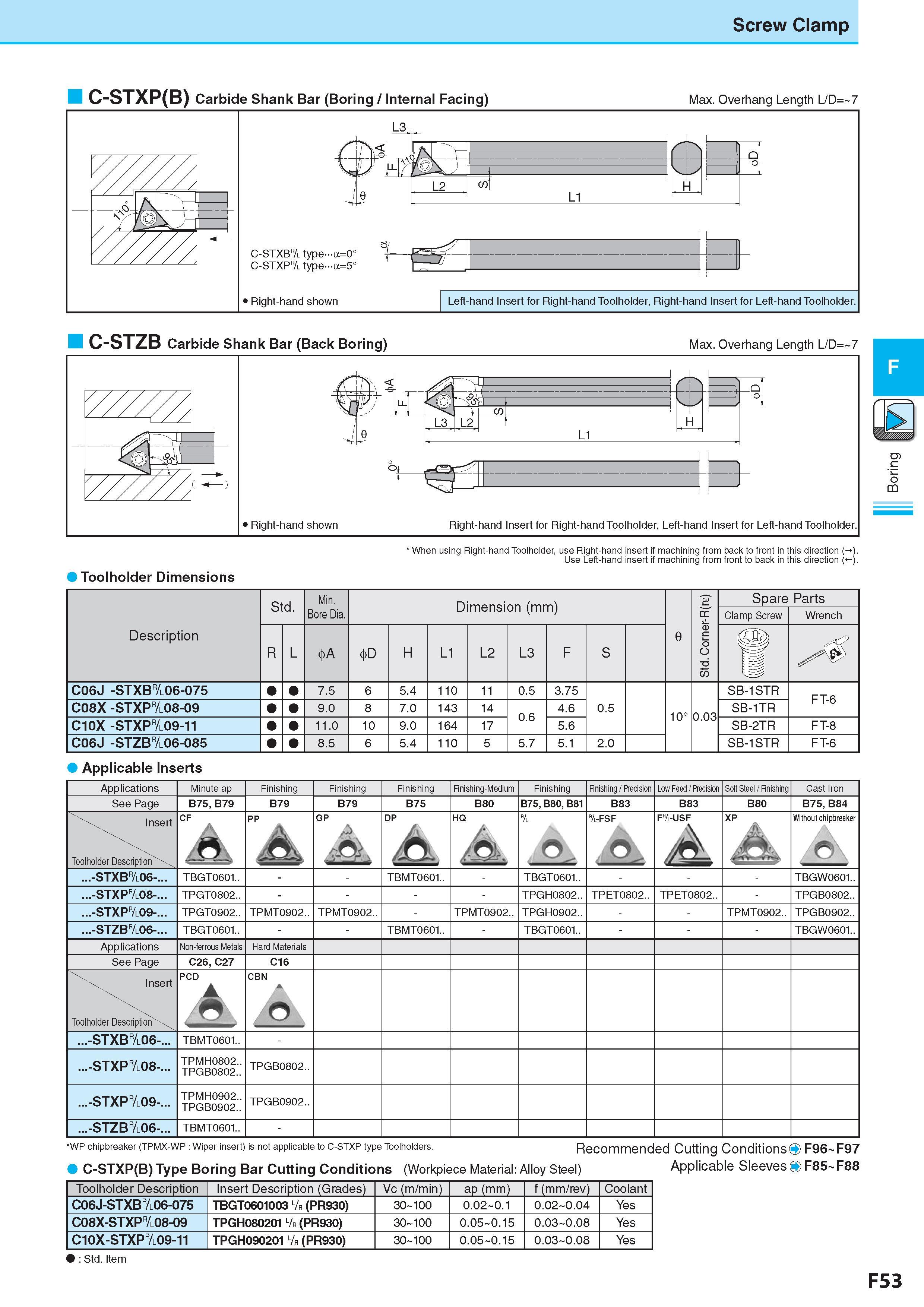

Screw Clamp C-STXP(B) Carbide Shank Bar (Boring / Internal Facing) Max. Overhang Length L/D= 7 When using Right-hand Toolholder, use Right-hand insert if machining from back to front in this direction ( ). Use Left-hand insert if machining from front to back in this direction ( Toolholder Dimensions Std. Min. Dimension (mm) Размеры в мм Std. Corner-R(re) Spare Parts Bore Dia. Clamp Screw Wrench Description Обозначение R L A D H L1 L2 L3 F S e u C06J -STXB&06-075 7.5 6 5.4 110 11 0.5 3.75 SB-1STR FT-6 C08X -STXP&08-09 9.0 8 7.0 143 14 0.6 4.6 0.5 10° 0.03 SB-1TR C10X -STXP&09-11 11.0 10 9.0 164 17 5.6 SB-2TR FT-8 C06J -STZB&06-085 8.5 6 5.4 110 5 5.7 5.1 2.0 SB-1STR FT-6 Applicable Inserts Applications Minute ap Finishing Finishing Finishing Finishing-Medium Finishing Rnishing / Precision Low Feed / Precision Soft Steel / Finishing Cast Iron See Page B75, B79 B79 B79 B75 B80 B75, B80, B81 B83 B83 B80 B75, B84 Insert Toolholder Description' CF A PP GP DP .-4 I r/l O. r/l-FSF o. Fr/l-USF A XP A Without chipbreaker O' ...-STXBr/l06-... TBGT0601.. TBMT0601.. - TBGT0601.. - TBGW0601.. ...-STXP&08-... TPGT0802.. TPGH0802.. TPET0802.. TPET0802.. - TPGB0802.. ...-STXP&09-... TPGT0902.. TPMT0902.. TPMT0902.. - TPMT0902.. TPGH0902.. TPMT0902.. TPGB0902.. ...-STZB&06-... TBGT0601.. - TBMT0601.. - TBGT0601.. - TBGW0601.. Applications Non-ferrous Metals Hard Materials See Page C26, C27 C16 Insert Toolholder Description Обозначение PCD 6 CBN ...-STXB&06-... TBMT0601.. - ...-STXP&08-... TPMH0802.. TPGB0802.. TPGB0802.. ...-STXP&09-... TPMH0902.. TPGB0902.. TPGB0902.. ...-STZB&06-... TBMT0601.. WP chipbreaker (TPMX-WP : Wiper insert) is not applicable to C-STXP type Toolholders. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 C-STXP(B) Type Boring Bar Cutting Conditions (Workpiece Material: Alloy Steel) Applicable S eeves 4 F85 F88 Toolholder Description Обозначение Insert Description Обозначение (Grades) Vc (m/min) ap (mm) f (mm/rev) Coolant C06J-STXB &06-075 TBGT0601003 l/r (PR930) 30 100 0.02 0.1 0.02 0.04 Yes C08X-STXP &08-09 TPGH080201 l/r (PR930) 30 100 0.05 0.15 0.03 0.08 Yes C10X -STXP&09-11 TPGH090201 L/r (PR930) 30 100 0.05 0.15 0.03 0.08 Yes : Std. Item Стандартная позиция F53 Boring
