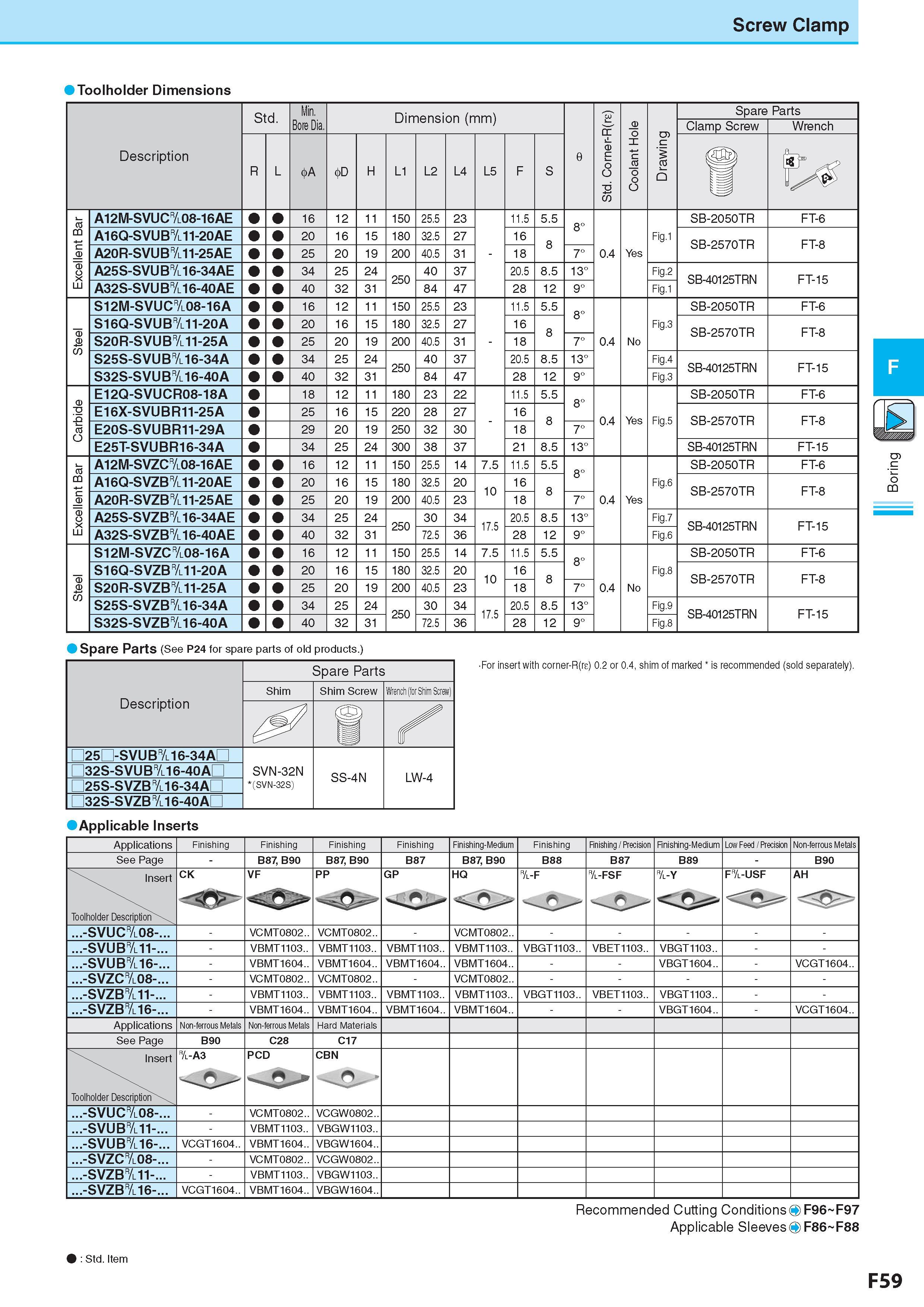

323 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F59

Каталог KYOCERA 2017 Инструмент режущий Стр. F59 0323 Lab2u

Screw Clamp Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм 0 Std. Corner-R(re) Coolant Hole Drawing Spare Parts Clamp Screw Wrench R L A 4>D H L1 L2 L4 L5 F S fjf Excellent Bar A12M-SVUC&08-16AE 16 12 11 150 25.5 23 - 11.5 5.5 8° 0.4 Yes Fig.1 SB-2050TR FT-6 A16Q-SVUB&11-20AE 20 16 15 180 32.5 27 16 8 SB-2570TR FT-8 A20R-SVUB & 11-25AE 25 20 19 200 40.5 31 18 7° A25S-SVUB&16-34AE 34 25 24 250 40 37 20.5 8.5 13° Fig.2 SB-40125TRN FT-15 A32S-SVUB&16-40AE 40 32 31 84 47 28 12 9° Fig.1 Steel S12M-SVUC&08-16A 16 12 11 150 25.5 23 - 11.5 5.5 8° 0.4 No Fig.3 SB-2050TR FT-6 S16Q-SVUB&11-20A 20 16 15 180 32.5 27 16 8 SB-2570TR FT-8 S20R-SVUB&11-25A 25 20 19 200 40.5 31 18 7° S25S-SVUB & 16-34A 34 25 24 250 40 37 20.5 8.5 13° Fig.4 SB-40125TRN FT-15 S32S-SVUB&16-40A 40 32 31 84 47 28 12 9° Fig.3 Carbide E12Q-SVUCR08-18A 18 12 11 180 23 22 - 11.5 5.5 8° 0.4 Yes Fig.5 SB-2050TR FT-6 E16X-SVUBR11-25A 25 16 15 220 28 27 16 8 SB-2570TR FT-8 E20S-SVUBR11-29A 29 20 19 250 32 30 18 7° E25T-SVUBR16-34A 34 25 24 300 38 37 21 8.5 13° SB-40125TRN FT-15 Excellent Bar A12M-SVZC&08-16AE 16 12 11 150 25.5 14 7.5 11.5 5.5 8° 0.4 Yes Fig.6 SB-2050TR FT-6 A16Q-SVZB & 11-20AE 20 16 15 180 32.5 20 10 16 8 SB-2570TR FT-8 A20R-SVZB&11-25AE 25 20 19 200 40.5 23 18 7° A25S-SVZB&16-34AE 34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.7 SB-40125TRN FT-15 A32S-SVZB&16-40AE 40 32 31 72.5 36 28 12 9° Fig.6 Steel S12M-SVZC&08-16A 16 12 11 150 25.5 14 7.5 11.5 5.5 8° 0.4 No Fig.8 SB-2050TR FT-6 S16Q-SVZB&11-20A 20 16 15 180 32.5 20 10 16 8 SB-2570TR FT-8 S20R-SVZB&11-25A 25 20 19 200 40.5 23 18 7° S25S-SVZB&16-34A 34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.9 SB-40125TRN FT-15 S32S-SVZB&16-40A 40 32 31 72.5 36 28 12 9° Fig.8 Spare Parts (See P24 for spare parts of old products.) Description Обозначение Spare Parts Shim Shim Screw Wrench (lor Shim Screw) 1 S' 25 -SVUB&16-34A SVN-32N (SVN-32S) SS-4N LW-4 32S-SVUB&16-40A 25S-SVZB&16-34A 32S-SVZB&16-40A For insert with corner-R(re) 0.2 or 0.4, shim of marked is recommended (sold separately). Applicable Inserts Applications Finishing Finishing Finishing Finishing Finishing-Medium Finishing Finishing Precision Finishing-Medium Low Feed / Precision Non-ferrous Metals See Page - B87, B90 B87, B90 B87 B87, B90 B88 B87 B89 - B90 Insert Toolholder Description"'' CK VF PP GP HQ &-F &-FSF &-Y F&-USF AH ...-SVUC&08-... VCMT0802.. VCMT0802.. - VCMT0802.. ...-SVUB&11-... VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - ...-SVUB&16-... VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. VBGT1604.. VCGT1604.. ...-SVZC&08-... VCMT0802.. VCMT0802.. - VCMT0802.. ...-SVZB&11-... VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - ...-SVZB&16-... VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. VBGT1604.. VCGT1604.. Applications Non-ferrous Metals Non-ferrous Metals Hard Materials See Page B90 C28 C17 Insert Toolholder Description'' &-A3 PCD CBN . ...-SVUC&08-... - VCMT0802.. VCGW0802.. ...-SVUB&11-... - VBMT1103.. VBGW1103.. ...-SVUB&16-... VCGT1604.. VBMT1604.. VBGW1604.. ...-SVZC&08-... - VCMT0802.. VCGW0802.. ...-SVZB&11-... - VBMT1103.. VBGW1103.. ...-SVZB&16-... VCGT1604.. VBMT1604.. VBGW1604.. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 Applicable Sleeves O F86 F88 : Std. Item Стандартная позиция F59 Boring
