299 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F35

Каталог KYOCERA 2017 Инструмент режущий Стр. F35 0299 Lab2u

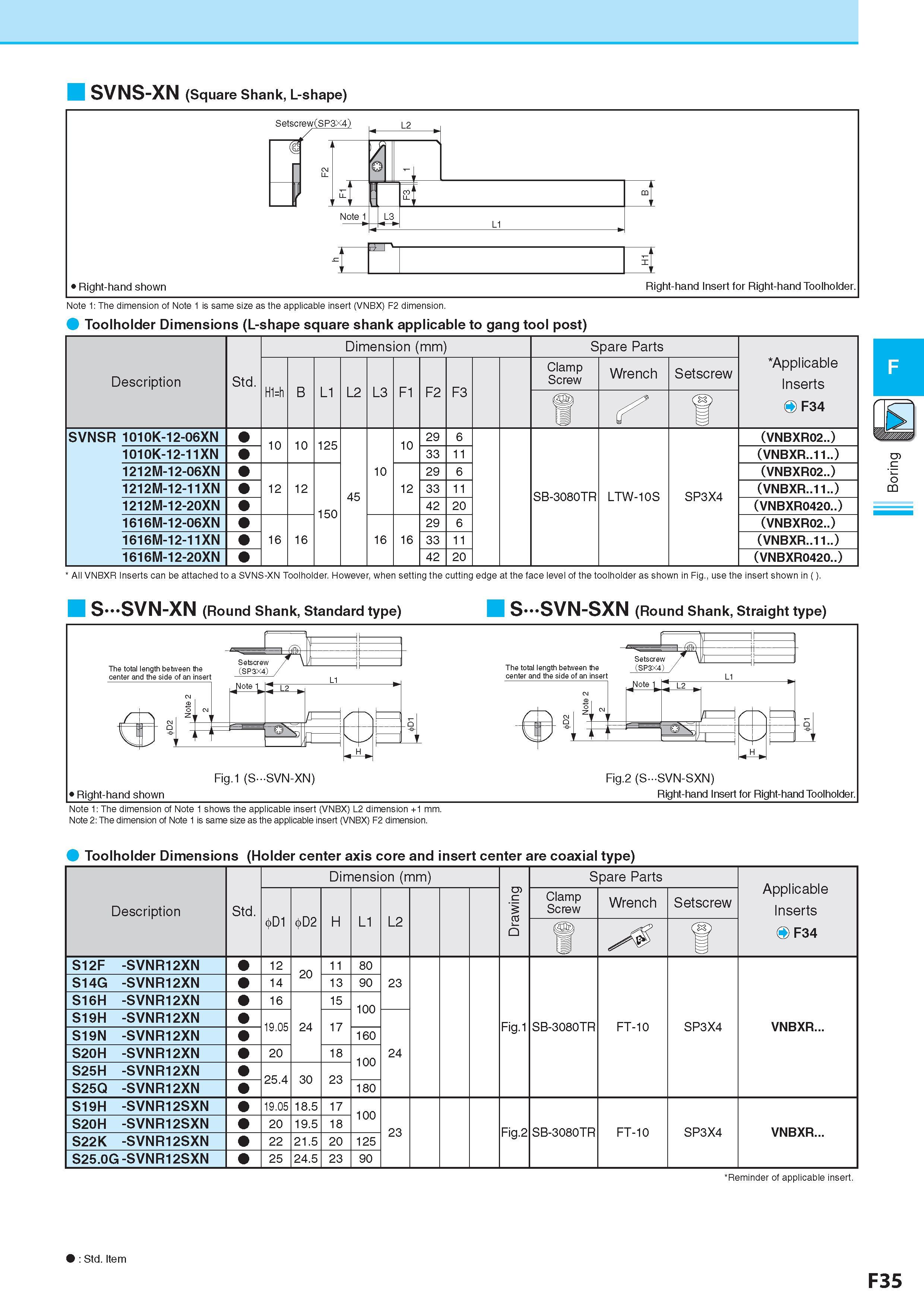

SVNS-XN (Square Shank, L-shape) Note 1: The dimension of Note 1 is same size as the applicable insert (VNBX) F2 dimension. Toolholder Dimensions (L-shape square shank applicable to gang tool post) Dimension (mm) Размеры в мм Spare Parts Description Обозначение Std. H1=h B L1 L2 L3 F1 F2 F3 Clamp Screw Wrench Setscrew ‘Applicable Inserts u r5’ O F34 SVNSR 1010K-12-06XN 10 10 125 10 29 6 (VNBXR02..) 1010K-12-11XN 33 11 (VNBXR..11..) 1212M-12-06XN 10 29 6 (VNBXR02..) 1212M-12-11XN 12 12 45 12 33 11 SB-3080TR LTW-10S SP3X4 (VNBXR..11..) 1212M-12-20XN 150 42 20 (VNBXR0420..) 1616M-12-06XN 29 6 (VNBXR02..) 1616M-12-11XN 16 16 16 16 33 11 (VNBXR..11..) 1616M-12-20XN 42 20 (VNBXR0420..) All VNBXR Inserts can be attached to a SVNS-XN Toolholder. However, when setting the cutting edge at the face level of the toolholder as shown in Fig., use the insert shown in ( ). S- SVN-XN (Round Shank, Standard type) s.. SVN-SXN (Round Shank, Straight type) Note 1: The dimension of Note 1 shows the applicable insert (VNBX) L2 dimension +1 mm. Note 2: The dimension of Note 1 is same size as the applicable insert (VNBX) F2 dimension. Toolholder Dimensions (Holder center axis core and insert center are coaxial type) Dimension (mm) Размеры в мм Drawing Spare Parts Applicable Inserts Description Обозначение Std. 4>D1 4>D2 H L1 L2 Clamp Screw Wrench Setscrew u OF34 S12F -SVNR12XN 12 20 11 80 S14G -SVNR12XN 14 13 90 23 S16H -SVNR12XN 16 15 100 S19H -SVNR12XN 19.05 24 17 Fig.1 SB-3080TR FT-10 SP3X4 VNBXR... S19N -SVNR12XN 160 S20H -SVNR12XN 20 18 100 24 S25H -SVNR12XN 25.4 30 23 S25Q -SVNR12XN 180 S19H -SVNR12SXN 19.05 18.5 17 100 S20H -SVNR12SXN 20 19.5 18 23 Fig.2 SB-3080TR FT-10 SP3X4 VNBXR... S22K -SVNR12SXN 22 21.5 20 125 S25.0G -SVNR12SXN 25 24.5 23 90 Reminder of applicable insert. N : Std. Item Стандартная позиция F35 Boring
