298 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F34

Каталог KYOCERA 2017 Инструмент режущий Стр. F34 0298 Lab2u

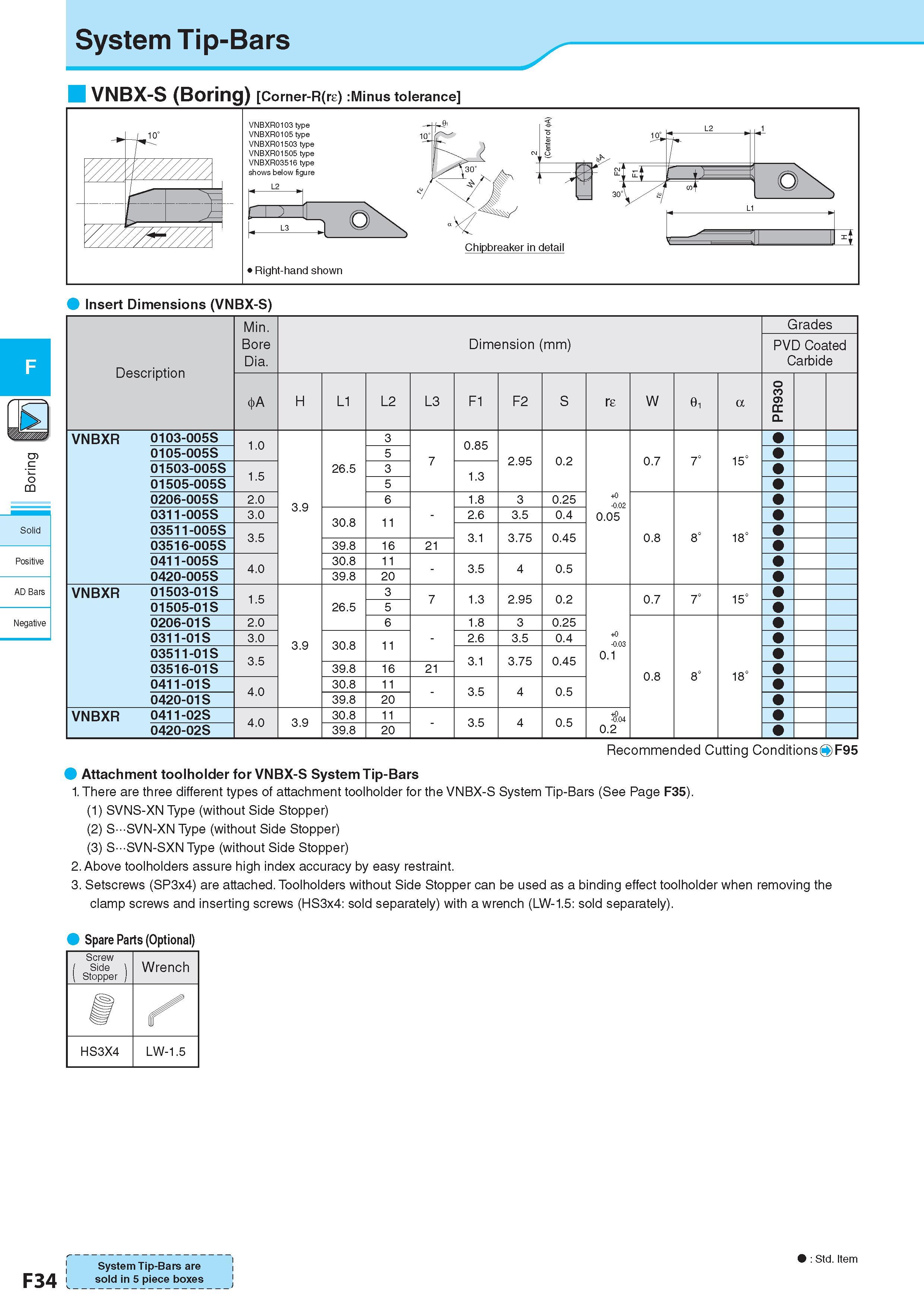

System Tip-Bars c <5 CQ Solid Positive AD Bars Negative F34 VNBX-S (Boring) Corner-R(re) :Minus tolerance Показано правое исполнение инструмента Chipbreaker Стружколом сменной пластины in detail VNBXR0103 type VNBXR0105 type VNBXR01503 type VNBXR01505 type VNBXR03516 type shows below figure hi L2 -1 Insert Dimensions (VNBX-S) Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм Grades PVD Coated Carbide A H L1 L2 L3 F1 F2 S re W 01 a PR930 VNBXR 0103-005S 1.0 3.9 26.5 3 7 0.85 2.95 0.2 +0 -0.02 0.05 0.7 7° 15° 0105-005S 5 01503-005S 1.5 3 1.3 01505-005S 5 0206-005S 2.0 6 - 1.8 3 0.25 0.8 8° 18° 0311-005S 3.0 30.8 11 2.6 3.5 0.4 03511-005S 3.5 3.1 3.75 0.45 03516-005S 39.8 16 21 0411-005S 4.0 30.8 11 - 3.5 4 0.5 0420-005S 39.8 20 VNBXR 01503-01S 1.5 3.9 26.5 3 7 1.3 2.95 0.2 +0 -0.03 0.1 0.7 7° 15° 01505-01S 5 0206-01S 2.0 6 - 1.8 3 0.25 0.8 8° 18° 0311-01S 3.0 30.8 11 2.6 3.5 0.4 03511-01S 3.5 3.1 3.75 0.45 03516-01S 39.8 16 21 0411-01S 4.0 30.8 11 - 3.5 4 0.5 0420-01S 39.8 20 VNBXR 0411-02S 4.0 3.9 30.8 11 - 3.5 4 0.5 +104 0.2 0420-02S 39.8 20 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F95 Attachment toolholder for VNBX-S System Tip-Bars 1. There are three different types of attachment toolholder for the VNBX-S System Tip-Bars (See Page F35). (1) SVNS-XN Type (without Side Stopper) (2) S-SVN-XN Type (without Side Stopper) (3) S-SVN-SXN Type (without Side Stopper) 2. Above toolholders assure high index accuracy by easy restraint. 3. Setscrews (SP3x4) are attached. Toolholders without Side Stopper can be used as a binding effect toolholder when removing the clamp screws and inserting screws (HS3x4: sold separately) with a wrench (LW-1.5: sold separately). Spare Parts (Optional) Screw f Side \ Stopper Wrench , HS3X4 LW-1.5 i : Std. Item Стандартная позиция System Tip-Bars are i sold in 5 piece boxes '
