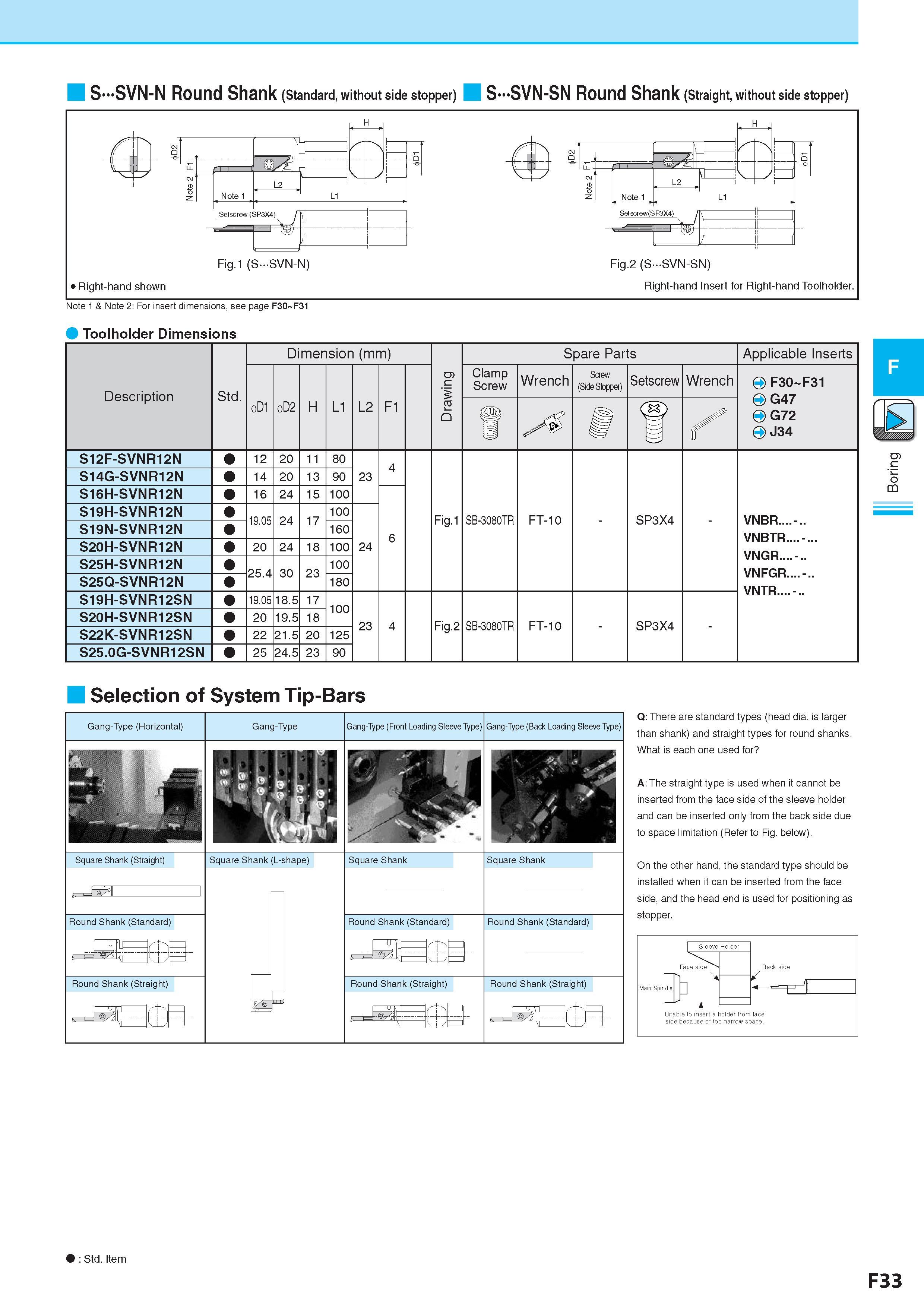

S- SVN-N Round Shank (Standard, without side stopper) S- SVN-SN Round Shank (Straight, without side stopper) Toolholder Dimensions Dimension (mm) Размеры в мм Spare Parts Applicable Inserts Description Обозначение Std. Drawing Clamp Screw Wrench Screw (Side Stopper) Setscrew Wrench O F30 F31 O G47 O G72 O J34 < >D1 S12F-SVNR12N 12 20 11 80 4 S14G-SVNR12N 14 20 13 90 23 S16H-SVNR12N 16 24 15 100 S19H-SVNR12N 19.05 24 17 100 Fig.1 SB-3080TR FT-10 SP3X4 VNBR....... VNBTR........ VNGR....... VNFGR....... VNTR....... S19N-SVNR12N 160 6 S20H-SVNR12N 20 24 18 100 24 S25H-SVNR12N 25.4 30 23 100 S25Q-SVNR12N 180 S19H-SVNR12SN 19.05 18.5 17 100 S20H-SVNR12SN 20 19.5 18 23 4 Fig.2 SB-3080TR FT-10 SP3X4 S22K-SVNR12SN 22 21.5 20 125 S25.0G-SVNR12SN 25 24.5 23 90 Selection of System Tip-Bars Gang-Type (Horizontal) Square Shank (Straight) Round Shank (Standard) Round Shank (Straight) Gang-Type Square Shank (L-shape) Gang-Type (Front Loading Sleeve Type) Square Shank Round Shank (Standard) Round Shank (Straight) Gang-Type (Back Loading Sleeve Type) Square Shank Round Shank (Standard) Round Shank (Straight) Q: There are standard types (head dia. is larger than shank) and straight types for round shanks. What is each one used for A: The straight type is used when it cannot be inserted from the face side of the sleeve holder and can be inserted only from the back side due to space limitation (Refer to Fig. below). On the other hand, the standard type should be installed when it can be inserted from the face side, and the head end is used for positioning as stopper. N : Std. Item Стандартная позиция F33 Boring
