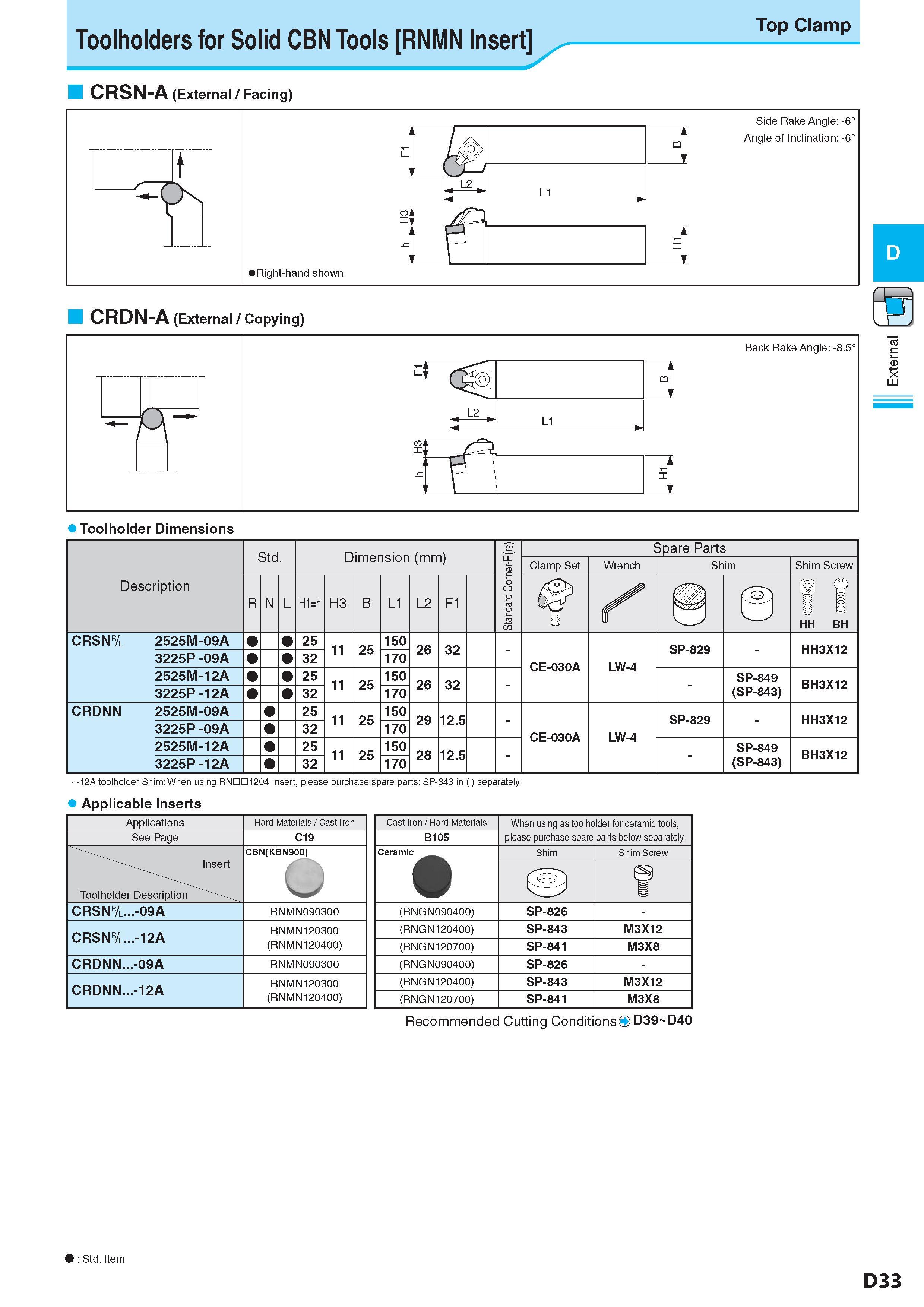

Toolholders for Solid CBN Tools RNMN Insert Top Clamp CRSN-A (External / Facing) Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Set Wrench Shim Shim Screw R N L H1=h H3 B Li L2 F1 0 HH BH CRSN& 2525M -09A 25 11 25 150 26 32 - CE-030A LW-4 SP-829 - HH3X12 3225P -09A 32 170 2525M -12A 25 11 25 150 26 32 SP-849 (SP-843) BH3X12 3225P -12A 32 170 CRDNN 2525M -09A 25 11 25 150 29 12.5 - CE-030A LW-4 SP-829 - HH3X12 3225P -09A 32 170 2525M -12A 25 11 25 150 28 12.5 SP-849 (SP-843) BH3X12 3225P -12A 32 170 -12A toolholder Shim: When using RNmmi204 Insert, please purchase spare parts: SP-843 in separately. Applicable Inserts Applications Hard Materials / Cast Iron See Page C19 Insert CBN(KBN900) Toolholder Description Обозначение CRSN&...-09A RNMN090300 CRSN&...-12A RNMN120300 (RNMN120400) CRDNN...-09A RNMN090300 CRDNN...-12A RNMN120300 (RNMN120400) Cast Iron / Hard Materials When using as toolholder for ceramic tools, please purchase spare parts below separately. B105 Ceramic Shim Shim Screw f (RNGN090400) SP-826 - (RNGN120400) SP-843 M3X12 (RNGN120700) SP-841 M3X8 (RNGN090400) SP-826 - (RNGN120400) SP-843 M3X12 (RNGN120700) SP-841 M3X8 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO D39 D40 : Std. Item Стандартная позиция D33
