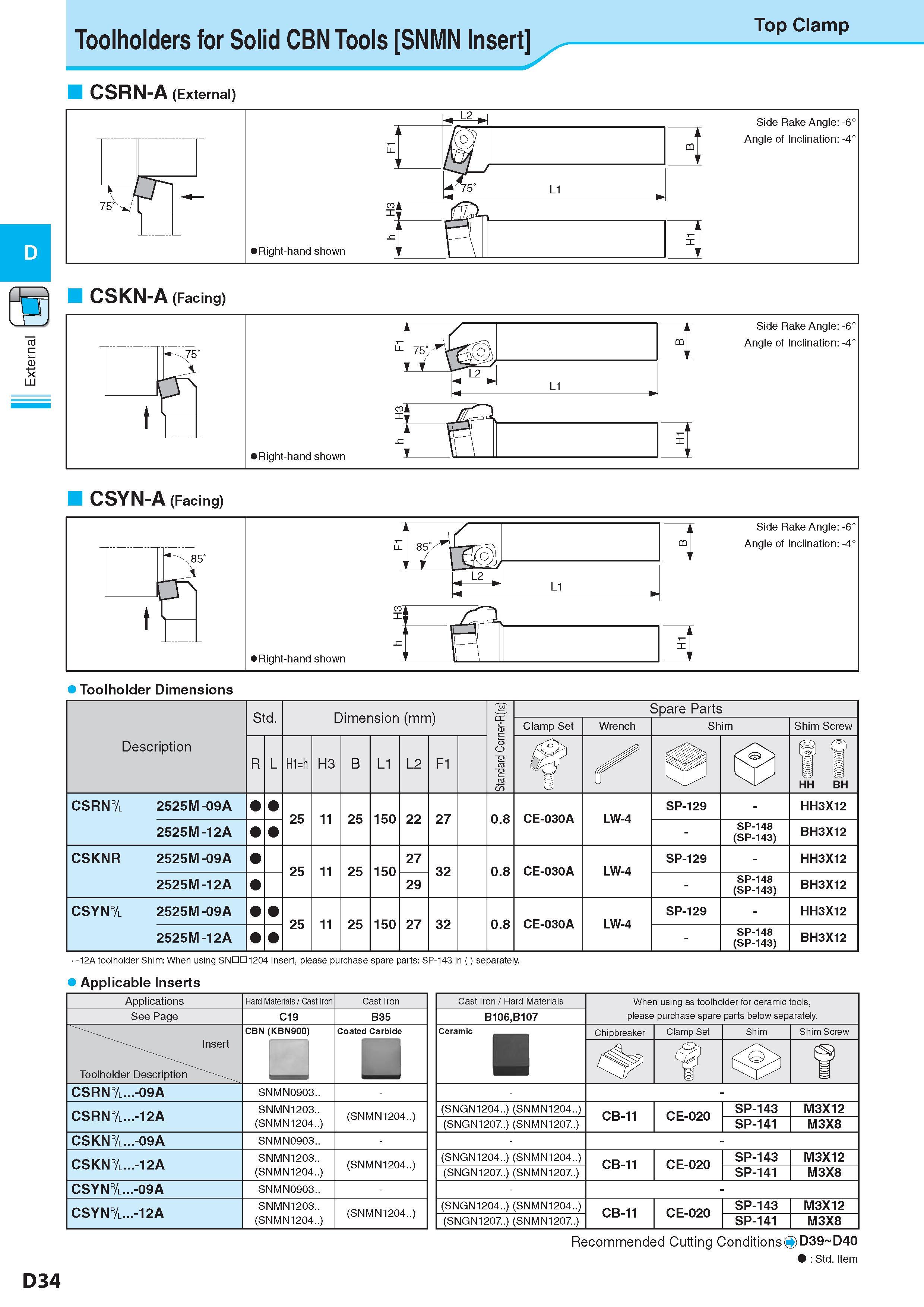

Toolholders for Solid CBN Tools SNMN Insert Top Clamp CSRN-A (External) CSKN-A (Facing) CSYN-A (Facing) Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Set Wrench Shim Shim Screw R L H1=h H3 B L1 L2 F1 s czTij HH BH CSRN& 2525M -09A 25 11 25 150 22 27 0.8 CE-030A LW-4 SP-129 - HH3X12 2525M -12A - SP-148 (SP-143) BH3X12 CSKNR 2525M -09A 25 11 25 150 27 32 0.8 CE-030A LW-4 SP-129 - HH3X12 2525M -12A 29 - SP-148 (SP-143) BH3X12 CSYN& 2525M -09A 25 11 25 150 27 32 0.8 CE-030A LW-4 SP-129 - HH3X12 2525M -12A - SP-148 (SP-143) BH3X12 -12A toolholder Shim: When using SNIHIII1204 Insert, please purchase spare parts: SP-143 in separately. Applicable Inserts Applications Hard Materials / Cast Iron Cast Iron See Page C19 B35 Insert Toolholder Description Обозначение CBN (KBN900) Coated Carbide CSRN&...-09A SNMN0903.. - CSRN&...-12A SNMN1203.. (SNMN1204..) (SNMN1204..) CSKN&...-09A SNMN0903.. - CSKN&...-12A SNMN1203.. (SNMN1204..) (SNMN1204..) CSYN&...-09A SNMN0903.. - CSYN&...-12A SNMN1203.. (SNMN1204..) (SNMN1204..) Cast Iron / Hard Materials When using as toolholder for ceramic tools, B106,B107 please purchase spare parts below separately. Ceramic Chipbreaker Стружколом сменной пластины Clamp Set Shim Shim Screw f - (SNGN1204..) (SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNGN1207..) (SNMN1207..) SP-141 M3X8 - (SNGN1204..) (SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNGN1207..) (SNMN1207..) SP-141 M3X8 - (SNGN1204..) (SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNGN1207..) (SNMN1207..) SP-141 M3X8 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO D39 D40 : Std. Item Стандартная позиция D34 D
